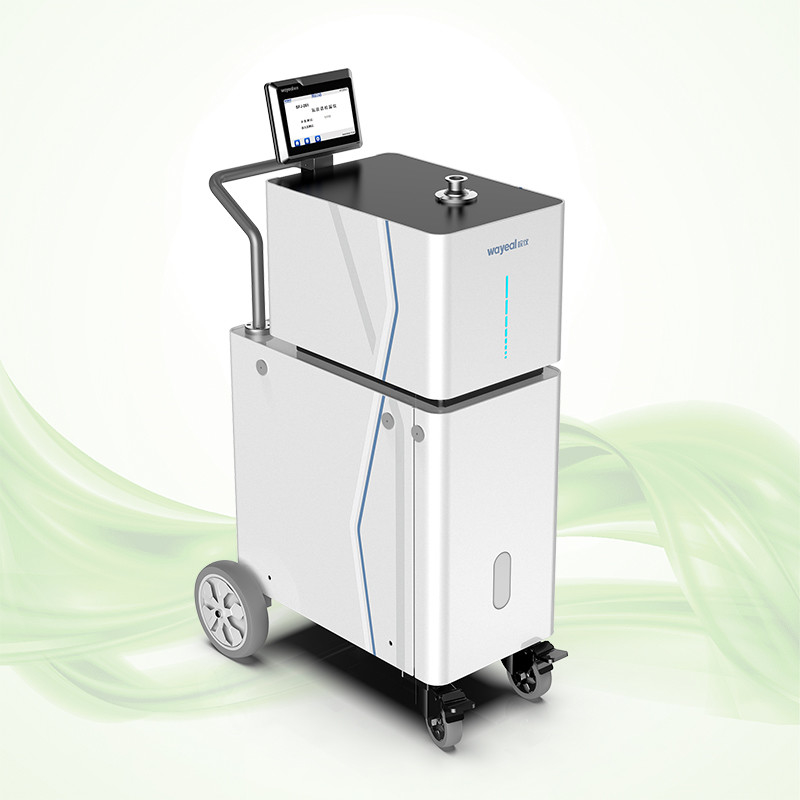

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector User Interface 7inch Color Touch Screen
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Operating Temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4) Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
High Light

Trolley Design Helium Leak Detector

,

Vaccum Helium Leak Detector

,

Helium Leak Detector Vaccum Mode

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium is used as a tracer gas to detect leaks for several reasons. These include the fact that it constitutes only ~ 5 ppm in air so that background levels are very low. Helium has also relatively low mass so that it is ‘mobile’ and is completely inert/non-reactive. Helium is also non-flammable and generally widely available and low cost. A helium leak detector, also known as a Mass Spectrometer Leak Detector (MSLD), is used to locate and measure the size of leaks into or out of a system or containing device. The tracer gas, helium, is introduced to a test part that is connected to the leak detector. The helium leaking through the test part enters through the system and this partial pressure is measured and the results are displayed on a meter.





Technical Parameters of Helium Leak Detector:

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (min) ≤1.58
Backing Pumps Scroll Vacuum Pump
Diamension 755*467*1180mm
Power Supply 220V, 50Hz/60Hz
Language Chinese/English


Applications of Helium Leak Detector:

Refrigerators and air conditioners (RAC)
Automotive hydraulic brake charging
Gas bottle charging
Heat pipe production
Lamp production

Energy Generation & Storage

Electrical industry

Utility vacuum solutions for major general industrial manufacturing applications



SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 0



Methods of Helium Leak Detection (Helium Leak Detector)

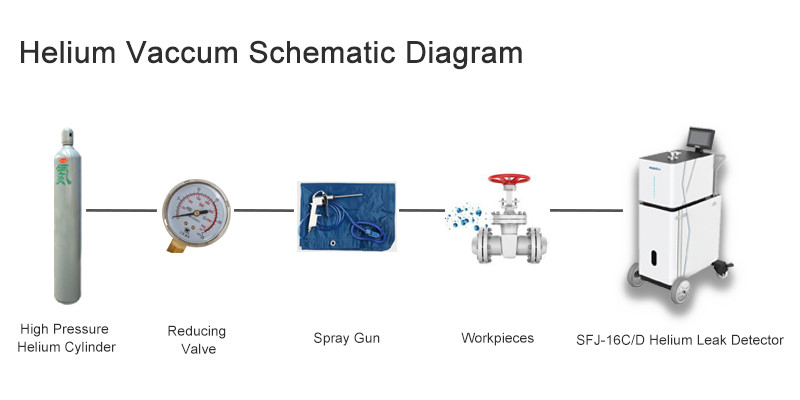

Helium Vacuum Method

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 1Helium Hood Method



SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 2



Negative Pressure Method

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 5

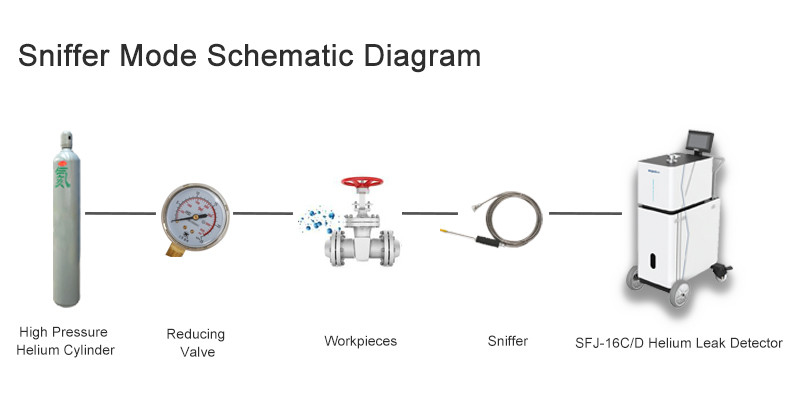

Sniffer Method

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 6

SFJ-16D Trolley Design Leak Helium Tester Vaccum Helium Leak Detector Price 7
