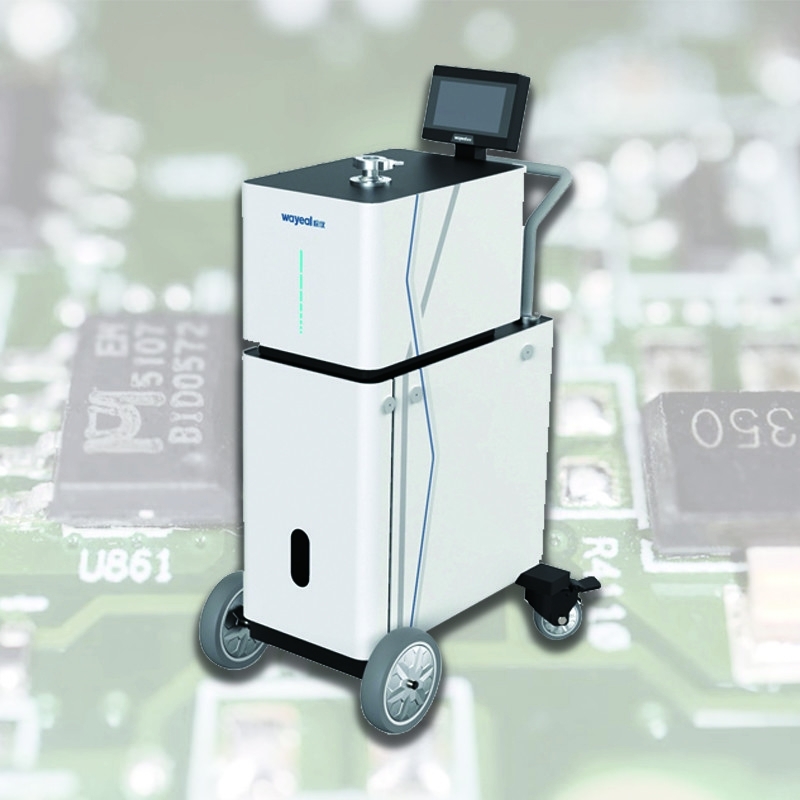

Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Product Name Helium Leak Detector Leak Detection Port DN25KF
Operating Temperature 0~40°C User Interface 7inch Color Touch Screen
Leak Rate Display Numbers, Bar Charts, Graphs Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
High Light

Helium Leak Detector

,

Compact Helium Leak Detector

Leave a Message
Product Description

Product Description:

The Helium Leak Detector is an advanced solution designed to meet the rigorous demands of various industries where detecting even the most minute leaks is critical for maintaining system integrity and performance. This state-of-the-art leak detector stands out for its precision and reliability, making it a go-to instrument for professionals seeking to ensure the utmost in quality control.

A key feature of the helium leak detector is its impressive mini leak detection rate , which stands at an exceptional 5*10 -13 Pa·m3/s in Vacuum Mode. This level of sensitivity ensures that even the smallest leaks, which could otherwise go undetected, are identified quickly and efficiently, allowing for timely corrective actions. Such capability is essential in industries where the integrity of vacuum systems is paramount.


Technical Parameters of Helium Leak Detector:


Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source

Product Name

Helium Leak Detector

Max Allowable Leak Detection Pressure (Pa)

1800Pa

Start Time (min)

≤1.58min

User Interface

7inch Color Touch Screen

Leak detection port

DN25KF

Leak rate display

Numbers, Bar Charts, Graphs

Dimension

475 * 714 * 1168mm

Detection Method

Helium Mass Spectrometer

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Response Time(s)

<1s



Applications of Helium Leak Detector:

Helium leak detectors can help assure the integrity of your production process. Typical examples include: hermetically sealed packages, valves, manifolding, seals, vacuum vessels and systems, medical devices, high purity piping, brake lines, fuel lines, hydraulic lines, refrigeration assemblies, radiators, heat exchangers, condensers, storage tanks.





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 0

Sniffer Method

Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 1Helium Hood Method



Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 2

Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 3Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 4



Advanced Helium Leak Detector With Iridium Coated Yttrium Oxide Ion Source 5
