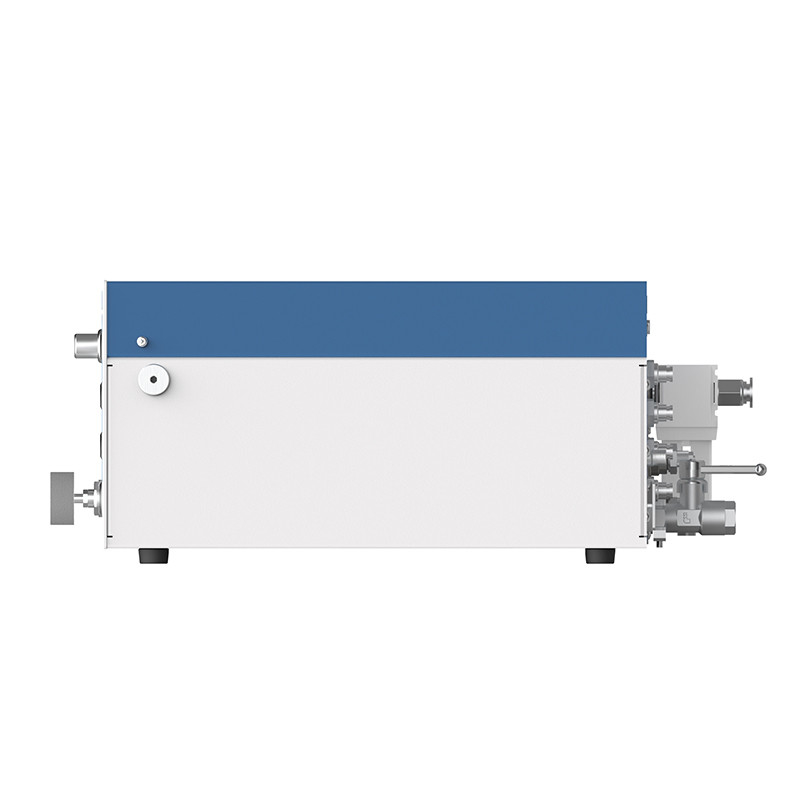

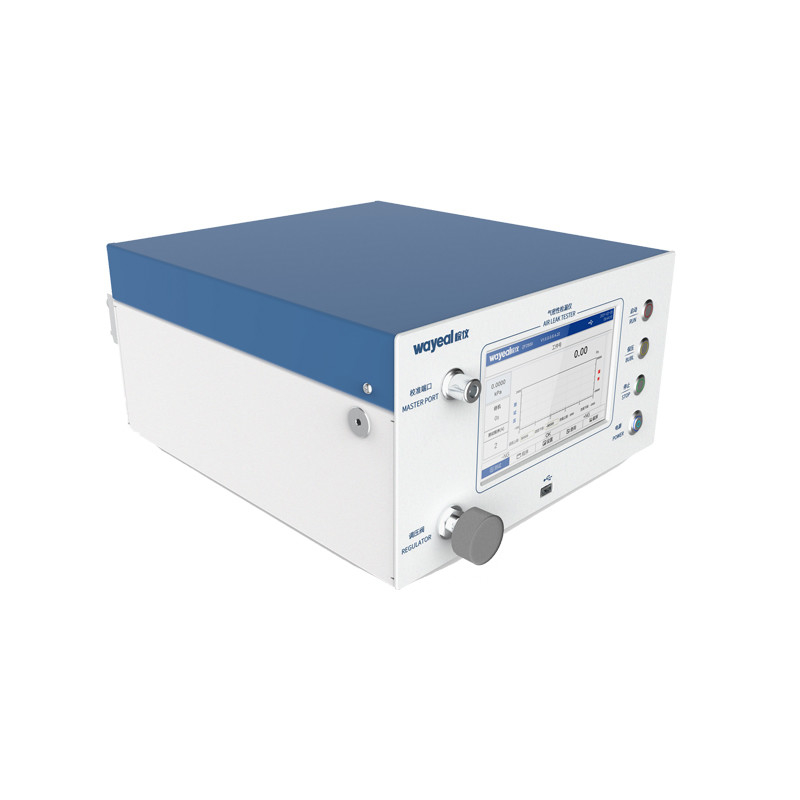

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number LC103/LC101
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Sensor Error ±3%F.S.(optional)
Parameter Program Number 64 Groups (1~64) Power Supply AC220V±10%, 50Hz
Weight 16KG Test Beat Setting 0 ~999 Seconds, Test Time 1800 Second
High Light

AC220V Helium Leak Detector

,

AC220V 50Hz Helium Leak Detector

,

50Hz Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium leak detectors operate based on the principle of mass spectrometry. When a system is suspected of having a leak, it is evacuated and then filled with helium. Being one of the smallest and lightest molecules, helium has an innate ability to pass through even the tiniest of openings. The helium that escapes through these leaks is drawn into the leak detector, where it is ionized and passed through a magnetic field. This process separates the helium ions from other gases. A detector then measures the quantity of helium ions, allowing for precise identification and localization of leaks.



Technical Parameters of Helium Leak Detector:

Modular Design Flow Rate Airtightness Helium Leak Detector for Lithum Battery Detection

Product Name

Helium Leak Detector

Flow Sensor Display Precision The value can be set to 0 to 4 decimal places
Sensor Range LC103 (V5) 30mL/min~1000mL/min (optional)
  LC101 (V6) 15mL/min~1000mL /min (optional)
Sensor Error ±3%F.S.(optional)
Direct Pressure Display Precision The value can be set to 0 to 4 decimal places
Recommended Test Pressure Range LC103 (V5) Mechanical Pressure Regulating 10~600kPa (Optional)
LC101(V6) Mechanical Pressure Regulating 10~600kPa (Optional
Sensor Error ±0.1%FS.
Display Unit Test Pressure kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg
Leakage mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM
Parameter Program Number 64 groups(1~64)
Test Beat Setting 0~999 seconds, test time 1800 seconds
Power Supply AC220V±10%, 50Hz
Test Pressure Source Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source
Overall Diamensions Standard V5 330mm*222mm*448mm
Standard V6 321mm*205mm*560mm
Weight About 16kg


Applications:

Automotive: In the automotive industry, helium leak testing is used for testing fuel tanks, radiators, air-conditioning systems.

Medical Industries: Helium leak detection is also used in the medical sector for various applications. Some of the most common medical applications of helium leak detection include:

1. Leak testing of medical gas systems, including oxygen, nitrogen, and carbon dioxide systems

2. Testing of vacuum systems used in medical equipment, such as MRI machines

3. Leak testing of anesthesia machines

4. Leak testing of sterilization equipment

Support and Services of Helium Leak Detector:



Product Documentation: Detailed user manuals and quick-start guides are available to help you understand your device and get started with it quickly.



Software Updates: Keep your Helium Leak Detector up to date with the latest software enhancements and bug fixes to ensure optimal performance and new features.



Technical Training: We offer technical training sessions to equip your team with the knowledge and skills required to operate the Helium Leak Detector effectively and safely.



Parts and Consumables: We supply a full range of genuine parts and consumables designed specifically for your Helium Leak Detector to ensure continued high performance and reliability.



Remote Support: Our technical support team is available to provide remote assistance and guidance for troubleshooting and resolving issues without the need for on-site visits, whenever possible.





Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 0

Methods of Helium Leak Detection (Helium Leak Detector)

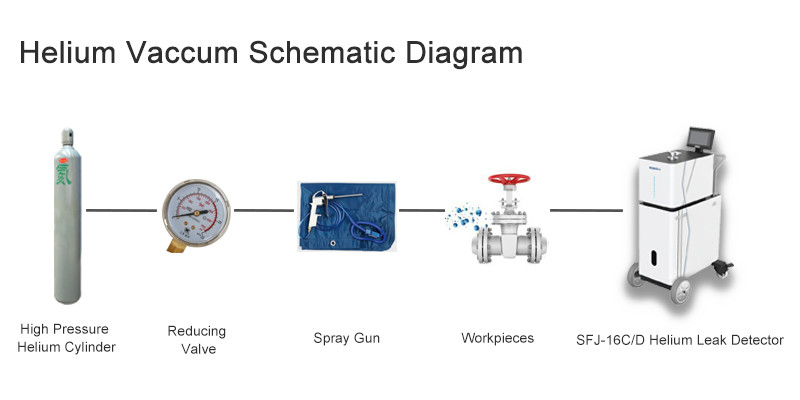

Helium Vacuum Method

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 1Helium Hood Method



Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 2



Negative Pressure Method

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 5

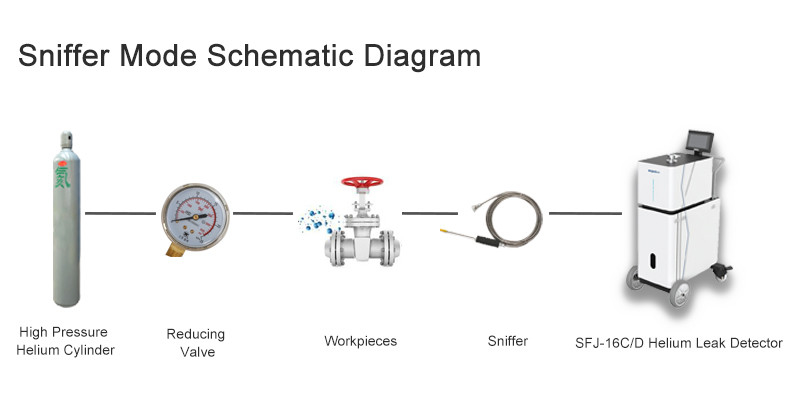

Sniffer Method

Direct Pressure Flow Rate Vaccum Helium Leak Detector AC220V 50Hz 6
