Introduction of Helium Leak Detector:
Helium leak detection is widely used in the industrial sector to detect and locate leaks in various types of equipment. Some of the most common industrial applications of helium leak detection include: Detection of leaks in refrigeration and air conditioning systems Testing of fuel tanks and pipelines for leaks Leak testing of vacuum systems.
Technical Parameters of Helium Leak Detector:
Flow Rate Airghtness Leak Detector
|

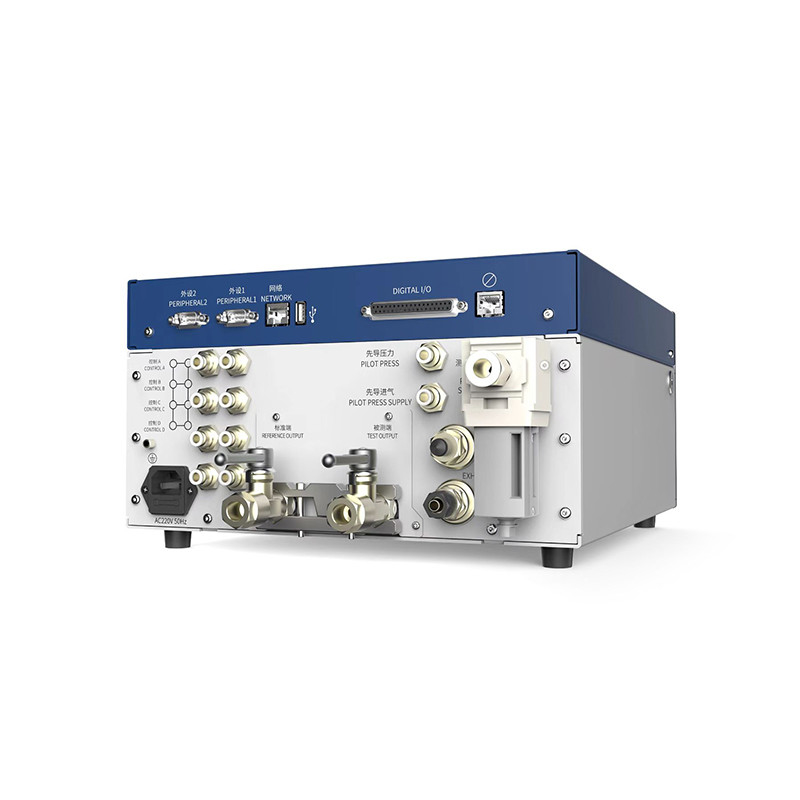

Modular Design Flow Rate Airtightness Helium Leak Detector for Lithum Battery Detection
|
|
Product Name
|
Helium Leak Detector
|
|
Flow Sensor
|
Display Precision
|
The value can be set to 0 to 4 decimal places
|
|
Sensor Range
|
LC103 (V5)
|
30mL/min~1000mL/min (optional)
|
|
|
LC101 (V6)
|
15mL/min~1000mL /min (optional)
|
|
Sensor Error
|
±3%F.S.(optional)
|
|
|
|
Direct Pressure
|
Display Precision
|
The value can be set to 0 to 4 decimal places
|
|
Recommended Test Pressure Range
|
LC103 (V5)
|
Mechanical Pressure Regulating
|
10~600kPa (Optional)
|
|
LC101(V6)
|
Mechanical Pressure Regulating
|
10~600kPa (Optional
|
|
Sensor Error
|
±0.1%FS.
|
|
|
Display Unit
|
Test Pressure
|
kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg
|
|
Leakage
|
mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM
|
|
Parameter Program Number
|
64 groups(1~64)
|
|
Test Beat Setting
|
0~999 seconds, test time 1800 seconds
|
|
Power Supply
|
AC220V±10%, 50Hz
|
|
Test Pressure Source
|
Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source
|
|
Overall Diamensions
|
Standard V5
|
330mm*222mm*448mm
|
|
Standard V6
|
321mm*205mm*560mm
|
|
Weight
|
About 16kg
|
Applications of Helium Leak Detector:
Battery: In the energy industry, helium leak testing is used to test the integrity of the battery pack, battery housing, and even pouches and cells to prevent leaks and ensure safety.
Military: In military applications, helium leak testing is vital for ensuring the reliability of weapons systems, communication equipment, and vehicles. The method is used to detect leaks in everything from missile casings to submarine hulls, contributing to national security.
Support and Services of Helium Leak Detector:
Installation Assistance: Guidance through the setup process to ensure your leak detector is installed correctly and functioning optimally right from the start.
Operational Training: Comprehensive training sessions for operators to become proficient in using the device, understanding its features, and interpreting results accurately.
Software Updates: Regular updates to the device's software to ensure you have access to the latest features, improvements, and security enhancements.
Repair Services: In the event of a malfunction, we offer repair services to restore your device to its full functionality as quickly as possible.
Parts Replacement: Access to genuine replacement parts to ensure the longevity and reliability of your helium leak detector.
Technical Documentation: Provision of detailed documentation, including user manuals, technical specifications, and troubleshooting guides to support the use of your device.
