Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
V6
Introduction of Helium Leak Detector:
A helium leak detector is an instrument used to detect and locate small leaks invacuum systems. lt works by using helium as a tracer gas, which is introduced intothe vacuum system and then detected outside of the system using a massspectrometer or other sensitive detector. Helium leak detectors are the mostaccurate type of leak testing. They are used to locate and measure the size of leaksinto or out of a system or containing device. Helium leak detection is commonlyused in early stage pharmaceutical package development and componentcompatibility evaluation.
Technical Parameters of Helium Leak Detector:
|

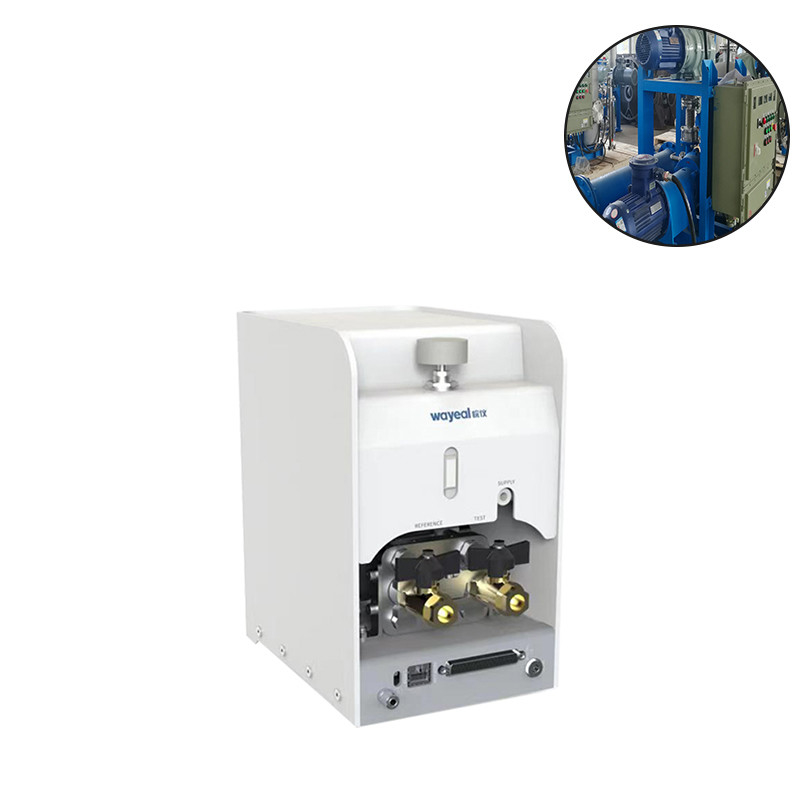

Precision Modular Design Airtightness He Leak Tester Vaccum Helium Leak Detector |
|||||
| Differential Pressure Sensor | Display Precision | The value can be set to 0 to 4 decimal places | |||
| Sensor Range | 0Pa~±2000Pa | ||||
| Sensor Error | ±0.1% F.S. | ||||
| Direct Pressure Sensor | Display Precision | The value can be set to 0 to 4 decimal place | |||
| Recommended Test Pressure Range | Standard V5 | VH90B | Mechanical Pressure Regulating | -100kPa~ -1kPa | |
| CH050 | Mechanical Pressure Regulating | 5kPa~ 100kPa | |||
| CH050D | Mechanical Pressure Regulating | 5kPa~ 89kPa | |||
| CH600 | Mechanical Pressure Regulating | 10kPa~ 600kPa | |||
| CH600D | Mechanical Pressure Regulating | 5kPa~ 490kPa | |||
| CH1000 | Mechanical Pressure Regulating | 50kPa~ 1200kPa | |||
| CH1000D | Mechanical Pressure Regulating | 50kPa~ 890kPa | |||
| CH4000 | Mechanical Pressure Regulating | 50kPa~ 4000kPa | |||
| CH500 | Mechanical Pressure Regulating | 10kPa~ 5000kPa (seals leak detector) | |||
| ZF500 | Mechanical Pressure Regulating | -100kPa~ -1kPa, 10kPa~ 500kPa | |||
| ZF2500 | Mechanical Pressure Regulating | -100kPa~ -1kPa, 50kPa~ 2400kPa | |||
| Standard V6 | ZF600 | Mechanical Pressure Regulating | -100kPa~ -1kPa, 10kPa~ 600kPa (Optional) | ||
| ZF2400 | Mechanical Pressure Regulating | -100kPa~ -1kPa, 50kPa~ 2400kPa (Optional) | |||
| Sensor Error | ±0.25% F.S. | ||||
| Display Unit | Test Pressure | kPa,MPa,kg/cm2,psi,mbar,bar,Torr,mmH20,mmHg | |||
| Leakage Rate | Pa,kPa,Pas,Pa·m3/s,mL/s,mL/min,mL/h,L/min,L/h,SCCM | ||||
| Parameter Program Number | 64 Groups (1~64) | ||||
| Test Beat Setting | 0~99 seconds, test time 1800 second | ||||
| Power Supply | AA220V ±10%, 50Hz | ||||
| Test Pressure Source | Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure pressure source | ||||
|
Diamension
|
Standard V5 | 330mm*222mmm*448mm | |||
| Standard V6 | 321mm*205mm*460mm | ||||
| Modular | 160mm*268mm*273mm | ||||
| Weight | 20kg | ||||
The Helium Leak Detector is a state-of-the-art instrument designed for precise detection and localization of leaks in a wide range of applications.
Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.
Medical industry: Helium leak detectors are used to test the integrity of medical equipment such as anesthesia machines, oxygen concentrators, and ventilators. They are used to detect leaks in the system that could compromise patient safety.
Our Product Technical Support and Services for the Helium Leak Detector include:
Online Resources: Access our comprehensive online library of manuals, FAQs, and troubleshooting guides designed to help you understand and operate your Helium Leak Detector effectively.
Software Updates: Keep your Helium Leak Detector up-to-date with the latest software enhancements and performance improvements by downloading the latest firmware from our support portal.
Technical Assistance: Our skilled team of technical support engineers is available to provide expert advice and assistance with any questions or issues you may encounter with your Helium Leak Detector.
Training Services: We offer specialized training programs to help you and your team get the most out of your Helium Leak Detector, covering operation, maintenance, and best practices for leak detection.
Repair Services: If your Helium Leak Detector requires repairs, our factory-trained technicians are equipped to provide high-quality repair services to restore your equipment to optimal condition.
Parts and Accessories: We supply a full range of genuine parts and accessories specifically designed for the Helium Leak Detector to maintain its performance and extend its service life.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
