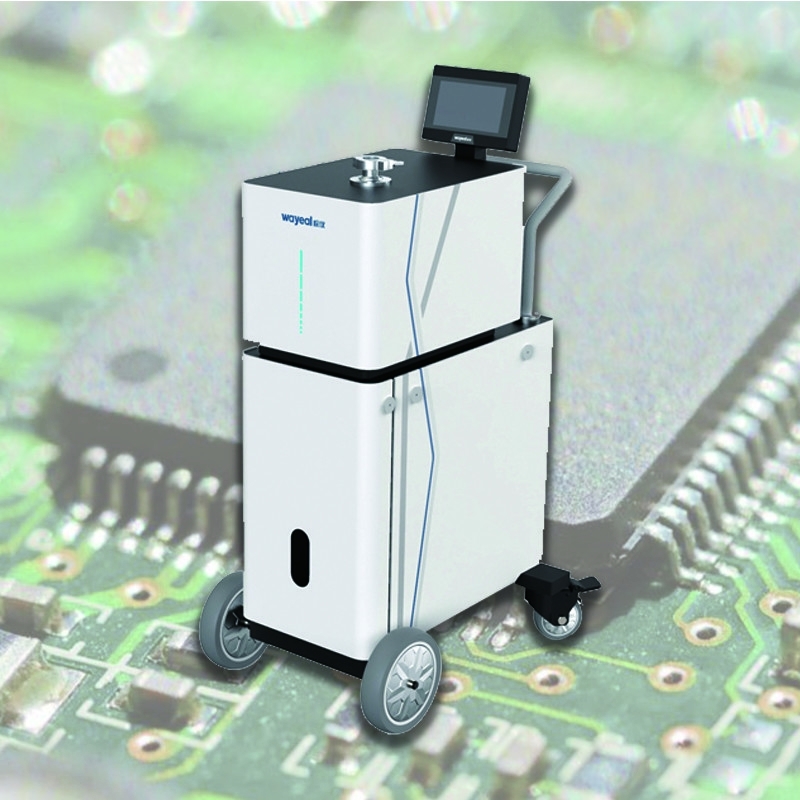

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16D
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching I/O Input output interface: 8 Inputs, 8 Outputs
Leak rate display: Numbers, Bar Charts, Graphs Language: Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa·m3/s MES Interface: Standard
Detectable Quality: 2, 3, 4 (H2, He3, He4) Leak detection port: DN25KF
High Light:

Helium Mass Spectrometer Leak Detector

,

Mass Spectrometer Leak Detector Machine

,

Minimum Detectable Rate Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

The helium leak detector is a state-of-the-art instrument designed for a wide range of applications in the field of leak detection.  A helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak. This product is essential for industries that demand precise and efficient helium leak testing, such as aerospace, automotive, and various manufacturing sectors.

Technical Parameters of Helium Leak Detector:

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price

Product Name

Helium Leak Detector
Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5.0*10 -13 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode 2.5*10-9 Pa·m3/s
Startup Time (min) ≤1.58
Backing Pump Scroll Vacuum Pump
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Applications of Helium Leak Detector:

The Wayeal SFJ-16D Helium Leak Detector is an advanced vacuum leak detection device designed for a wide range of applications. The helium leak detector is essential for industries that demand precise and efficient helium leak testing, such as aerospace, automotive, storage tankages, and vessels that carry chemicals, crude oil, petroleum products, or other liquid items to identify minor breaches in these sealed industrial containers.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price 0Helium Hood Method



Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price 1



Negative Pressure Method

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price 2



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price 3





Sniffer Method

Minimum Detectable Leak Rate Helium Mass Spectrometer Leak Detector Machine Price 4
