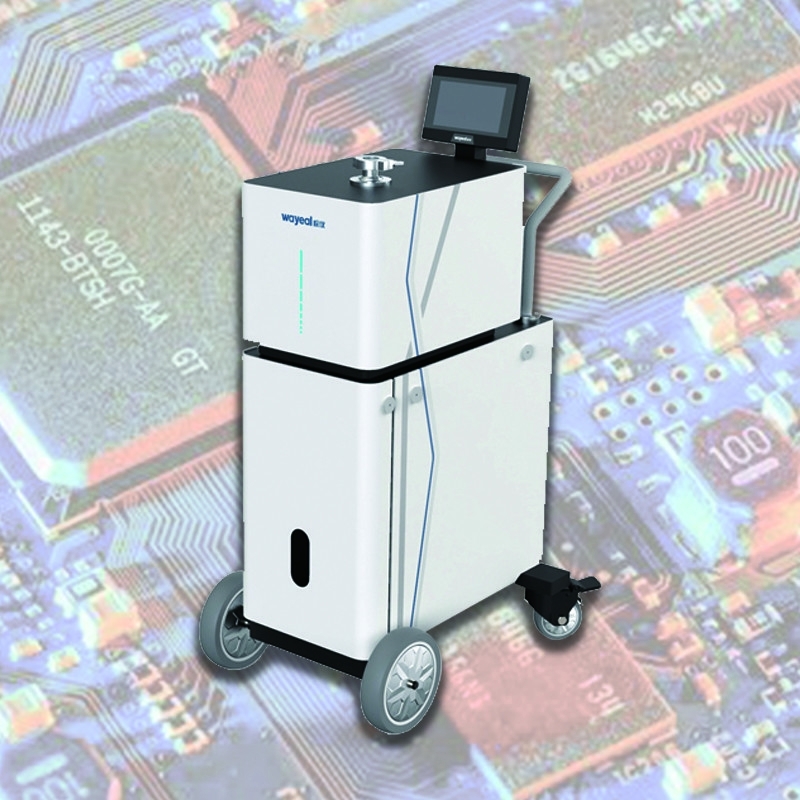

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Communication Interface RS232/485, LAN
Diamension 475 * 714 *1168mm Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak Detection Port DN25KF Operating Temperature 0~40°C
Start Time (min) ≤1.58min Language Chines/English
High Light

Rapid Response Time Helium Leak Detector

,

SFJ-16D Leak Detector

,

SFJ-16D Helium Leak Detector

Leave a Message
Product Description

Introduction of Heium Leak Detector:



Helium leak detectors are instruments used to detect and locate small leaks in vacuum systems. They work by using helium as a tracer gas, which is introduced into the vacuum system and then detected outside of the system using a mass spectrometer or other sensitive detector. The working principle of a helium leak detector is based on the fact that helium gas has a very small atomic size. When helium gas is sprayed around a sealed system, it can easily penetrate any leaks in the system and enter the detector.

Technical Parameters of Helium Leak Detector:

Rapid Response Time Helium Leak Detection Equipment Helium Leak Detector

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤1.58
Backing Pump Scroll Vacuum Pump
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Applications of Helium Leak Detector:

The Wayeal SFJ-16C Helium Leak Detector is a state-of-the-art instrument designed and manufactured in Anhui, China. As a pivotal tool in ensuring the integrity of vacuum systems and sealed compartments, the SFJ-16C utilizes advanced helium leak detection technology to identify even the most minuscule of leaks with precision and speed.

The most common applications of helium leak detectors include:

Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.



Power generation industry: Helium leak detectors are used to test the integrity of power generation equipment such as turbines, generators, and heat exchangers. They are used to detect leaks in the cooling system and other critical components of the equipment.



Overall, helium leak detectors are essential tools in industries where the detection of small leaks is critical to ensure the safety, reliability, and efficiency of the equipment and processes.



SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 1Helium Hood Method



SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 2



Negative Pressure Method

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 5





Sniffer Method

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 6

SFJ-16D Helium Leak Detection Equipment Helium Leak Detector With Rapid Response Time 7
