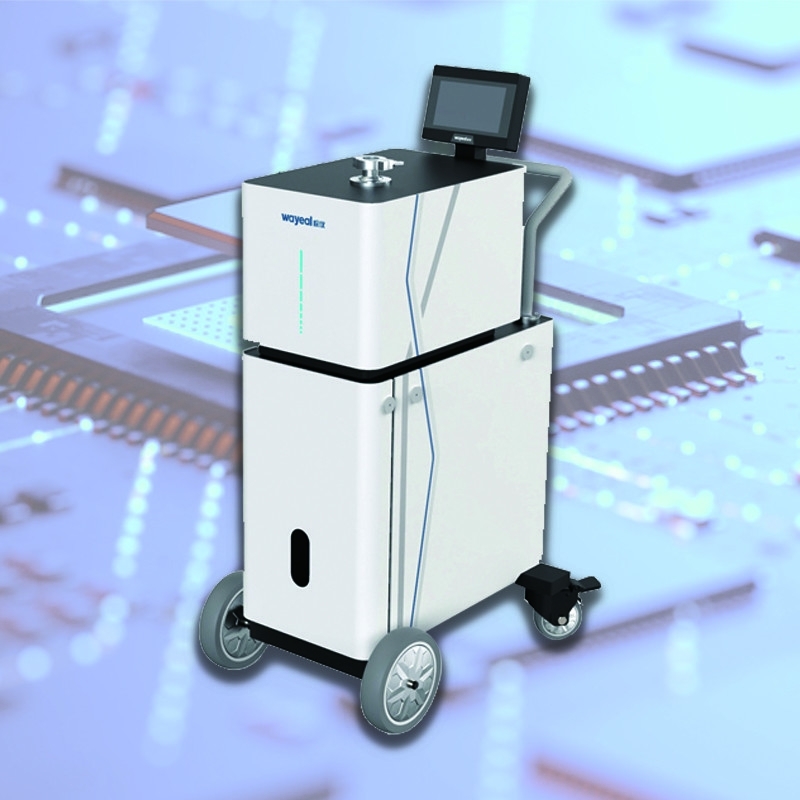

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detectable Quality 2, 3, 4 (H2, He3, He4) Product Name Helium Leak Detector
Max Allowable Leak Detection Pressure (Pa) 1800Pa User Interface 7inch Color Touch Screen
Diamension 475 * 714 *1168mm Leak Rate Display Numbers, Bar Charts, Graphs
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s Start Time (min) ≤1.58min
High Light

Mobile Helium Leak Detector

,

Mobile Helium Leak Detection Equipment

,

SFJ-16D Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



A helium detector is a type of leak detector that is specifically designed to detect helium gas. Helium is often used as a tracer gas because it is non-toxic, non-flammable, and does not react with other gases. Helium detectors are highly sensitive and can detect very small leaks.





Technical Parameters of Helium Leak Detector:



SFJ-16D Mobile Helium Leak Detection Equipment Helium Leak Detector Price

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5.0*10 -13 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode 2.5*10-9 Pa·m3/s
Startup Time (min) ≤1.58

Backing Pump

Scroll Vacuum Pump

Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English





Applications of Helium Leak Detector:



Helium leak detectors are widely used in various industries, including aerospace, automotive, and semiconductor manufacturing. They are essential tools for ensuring the safety and reliability of various systems, and they can help prevent costly downtime and repairs.



Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.



Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.



SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 0





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 1Helium Hood Method



SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 2



Negative Pressure Method

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 4



Sniffer Method

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 5

SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 6SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 7



SFJ-16D Mobile Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 8
