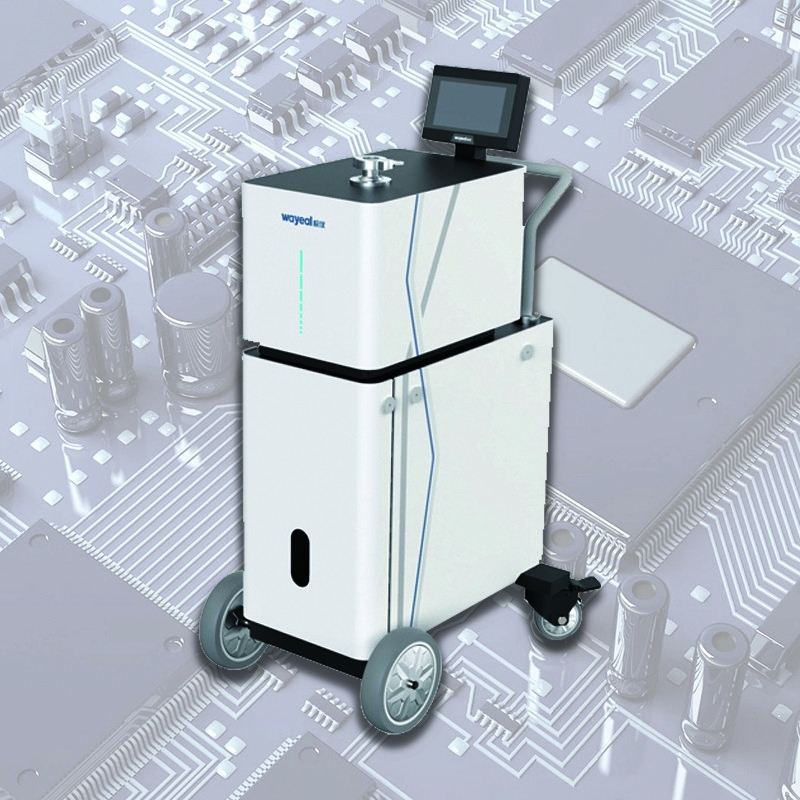

SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector Machine

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Detection Method: Helium Mass Spectrometer Max Allowable Leak Detection Pressure (Pa): 1800Pa
Leak rate display: Numbers, Bar Charts, Graphs Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa.m3/s
MES Interface: Standard Product Name: Helium Leak Detector
Response Time(s): <1s Diamension: 475 * 714 *1168mm
High Light:

SFJ-16C Helium Leak Detection Machine

,

Mass Spectrometer Leak Detection Machine

,

Vacuum Helium Leak Detection Machine
Product Description

Introduction of Helium Leak Detector:

A helium leak detector is a highly sensitive instrument used to detect and locate small leaks in various systems. The working principle of a helium leak detector is based on the detection of helium atoms that escape from a leak and are then ionized and detected by a mass spectrometer.

Technical Parameters of Helium Leak Detector:

SFJ-16C Mass Spectrometer Technology Vacuum Helium Leak Detection Machine

Product Name

Helium Leak Detector
Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5.0*10 -13 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode 2.5*10-9 Pa·m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Applications of Helium Leak Detector:

The Wayeal SFJ-16C Helium Leak Detector is a state-of-the-art mass spectrometer leak detector designed for precise and efficient leak testing in various industrial applications. Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods. Helium is also non-toxic, non-flammable, and does not react with other substances, making it a safe and clean tracer gas for leak detection.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector MachineHelium Hood Method



SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector Machine



Negative Pressure Method

SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector Machine



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector Machine



Sniffer Method

SFJ-16C Mass Spectrometer Technology Vacuum Chamber Helium Leak Detector Machine
