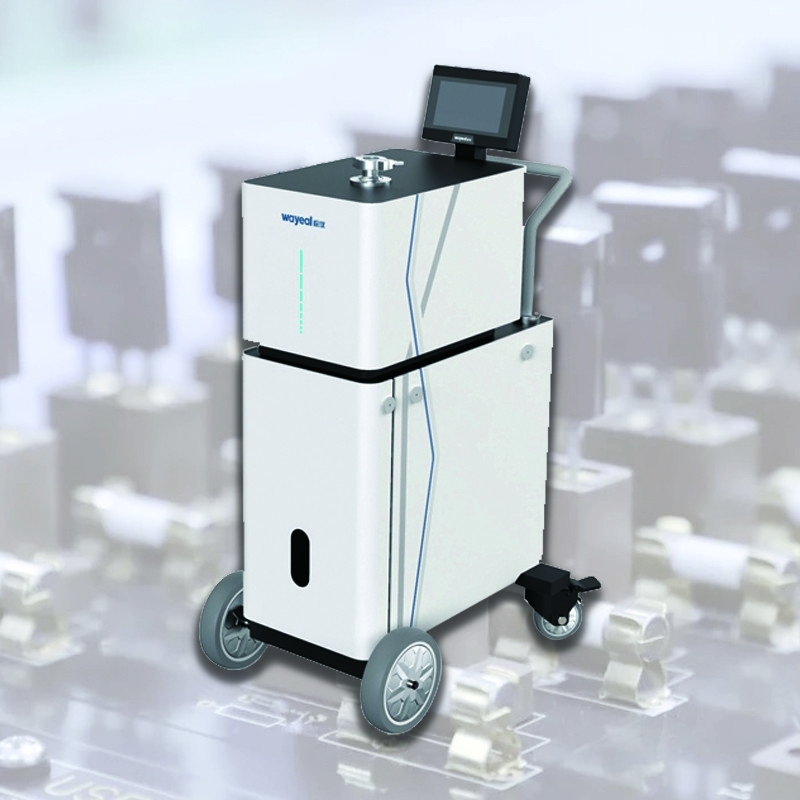

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Leak Detection Port DN25KF
Diamension 475 * 714 *1168mm I/O Input Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, LAN User Interface 7inch Color Touch Screen
Product Name Helium Leak Detector Leak Rate Display Numbers, Bar Charts, Graphs
High Light

Vaccum Leak Detector

,

Iridium Coated Ion Source Leak Detector

,

Vaccum Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The helium mass spectrometer leak detector is not only a tool for identifying leaks but also a comprehensive solution for improving the integrity and reliability of products and systems. Helium leak testing has become a benchmark in industries such as automotive, aerospace, electronics, and pharmaceuticals where the smallest leak can have significant consequences. Helium leak detector uses a mass spectrometer tuned to detect helium, which is used as a tracer gas to locate and/or measure very small leaks in enclosed devices or systems. This multipurpose mobile helium leak detector is both a precise instrument and a robust workhorse, featuring an easy-to-use touch screen interface and menu structure that quickly connect users to powerful leak detection capabilities.

Technical Parameters of Helium Leak Detector:

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Applications of Helium Leak Detector:

Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods. Helium is also non-toxic, non-flammable, and does not react with other substances, making it a safe and clean tracer gas for leak detection. This method is essential in industries where detecting even the smallest leaks is critical, such as in medical device, automotive, and electronics manufacturing.



Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 1Helium Hood Method



Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 2



Negative Pressure Method

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 5





Sniffer Method

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 6

Helium Leak Detector Vaccum Leak Detector With Iridium Coated Ion Source 7
