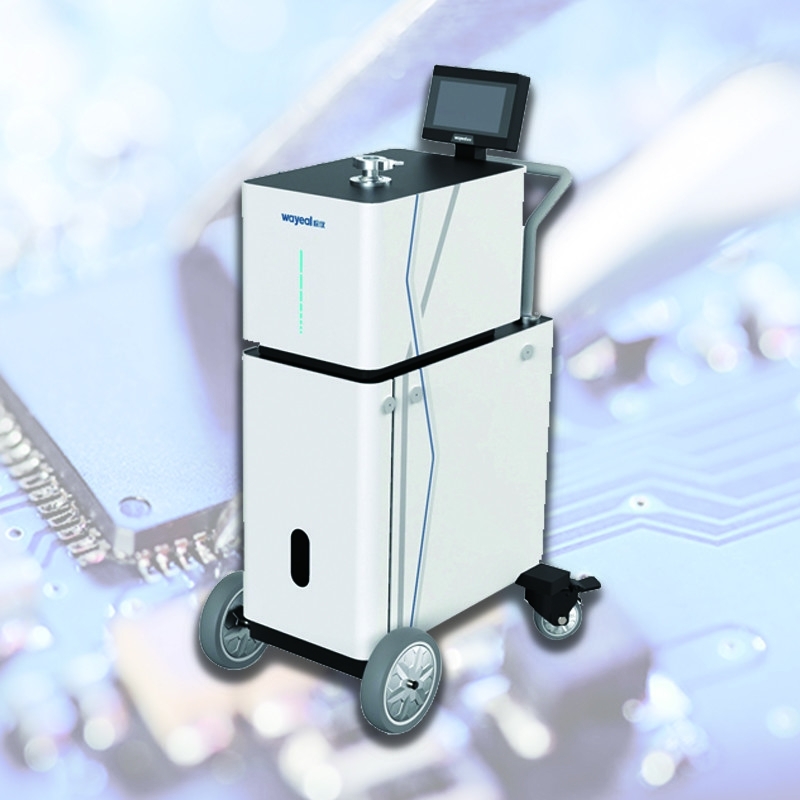

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Start Time (min) ≤1.58min Product Name Helium Leak Detector
Diamension 475 * 714 *1168mm User Interface 7inch Color Touch Screen
Leak Detection Port DN25KF Detectable Quality 2, 3, 4 (H2, He3, He4)
Communication Interface RS232/485, LAN I/O Input Output Interface 8 Inputs, 8 Outputs
High Light

Mass Spectrometer Helium Leak Detector

,

Touch Screen Helium Leak Detector

,

7Inch Touch Screen Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The helium leak detector, or helium mass spectrometer leak detector, is an indespensable vacuum troubleshooting tool. Helium leak testing finds small or more significant leaks in bigger volumes. The helium is used as a tracer gas and its concentration is measured. This guide to helium leak testing should outline the basics of using this leak testing method. Helium leak testing is essential to guarantee the system or equipment is leak-free when employing a high-pressure or vacuum system. Helium leak detection is the most effective method for detecting leaks since helium is one of the lightest and tiniest molecules and will find its way out of even the smallest openings.

Technical Parameters of Helium Leak Detector:

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Dimension

755 * 467 *1180mm

Mini Detectable Leak Rate(Pa·m3/s)/Sniffer Mode

2.5*10-9 Pa·m3/s

Mini Detectable Leak Rate(Pa·m3/s) Vacuum Mode

5.0*10-13 Pa·m3/s

Maximum Detectable Leak Rate(Pa)

1800

Response Time (s)

<1

Startup Time (min)

≤1.58

Deteatable Quality

2,3,4(H2, He-3, He-4)

HMI

7inch Color LCD Touch Screen

Ion Source

2pcs, Iridium coated yttrium oxide, automatic switching

Backing Pump

Rotary Vane

I/O Input/Output Interface

8 Inputs, 8 Outputs

Communication Interface

RS232/485, LAN

MES Interface

Standard

Leak Detection Port

DN25KF

Power Supply

220V, 50Hz/60Hz

Operating Temperature

0~40°C

Language

Chinese/English

Leakage Rate

Fiure, Bar Chat, Curve

Applications of Helium Leak Detector:

Helium leak tests are done on pipelines, storage tankages, and vessels that carry chemicals, crude oil, petroleum products, or other liquid items to identify minor breaches in these sealed industrial containers. When leaks are found, corrective actions are taken. A helium sniff test is another name for a helium leakage test.



There is a broad spectrum of applications for helium leak detectors that touches numerous industry market segments. Vacuum systems as well as a wide variety of products and devices require leak testing as part of the quality testing process.Helium leak detectors are of great value, and are indispensable in the following industries:



Automotive


Air Conditioning / Heating / Refrigeration


Semiconductor, and Electrical Components


Vacuum Equipment Maintenance


Pharmaceutical


Packaging


Aerospace


Defense


Energy


Research and Development



7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 0





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 1Helium Hood Method



7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 2



Negative Pressure Method

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 4



Sniffer Method

7Inch Touch Screen Helium Mass Spectrometer Leak Detector Helium Leak Detector 5
