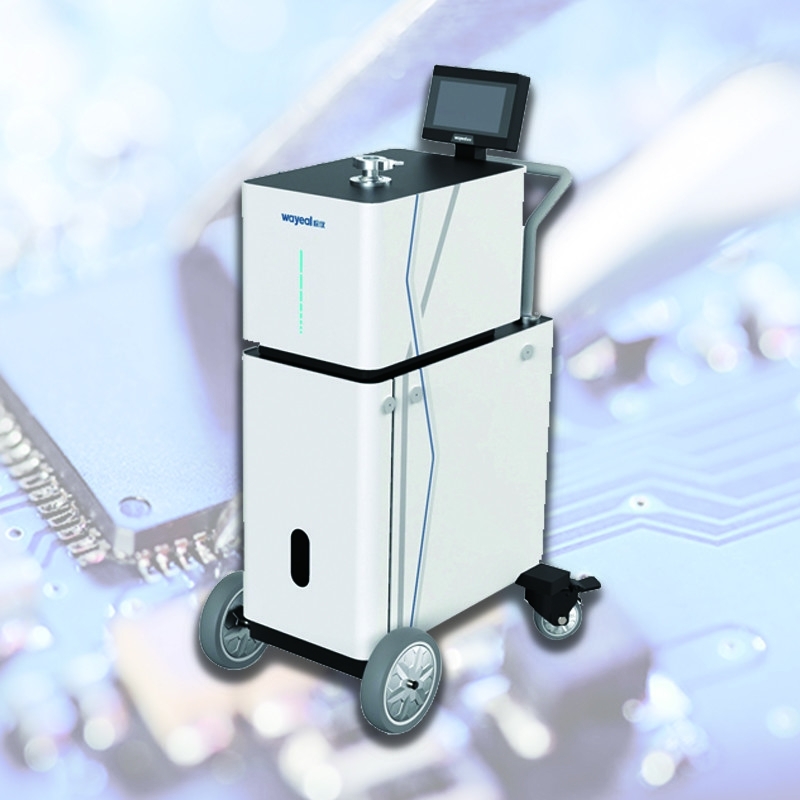

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price

  • SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price
Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply AC220V, 50Hz/60Hz Diamension 475*714*1168mm
High Light

SFJ-16C Helium Leak Detector

,

Portable Helium Leak Detector

,

Vaccum Helium Leak Detector
Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



The SFJ-16C helium leak detecor is the perfect leak detection solutions adapted to the semiconductor and display industries as well as other demanding applications where rapid pump down and high sensitivity is key. Our helium leak detectors have been specially designed to locate and quantify leaks precisely. Thus, improving the output quality, efficiency and reliability of the entire process. In almost every industry, from automotive to oil and gas. There are different ways to detect leakage with our helium leak detector. The so-called spray test, that is suitable for components under vacuum. And the sniffing leak detection for components under pressure. The means of detection is the tracer gas helium or hydrogen. Both test methods are easy to perform and deliver accurate results, making TAPIR the perfect complement for your vacuum process.





Technical Parameters of Helium Leak Detector:



SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1800

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -13 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

2.5*10-9 Pa.m3/s

Startup Time (min)

≤2

Diamension

475*714*1168mm

Power Supply

AC220V, 50Hz/60Hz

Language

Chinese/English







Applications of Helium Leak Detector:



SFJ-16C helium leak detector can be used in almost all applications for the leak testing of pipes, valves, tanks, vacuum pumps, etc. For example, in the automotive industry (e.g. airbags, gas tanks, ABS valves), hospitals and healthcare facilities (e.g. pacemaker, catheters, blood filters), vacuum packaging, semiconductor production (e.g. mass flow controllers, integrated circuits, gas lines), aerospace (e.g. engines, antennas, fuel delivery).



SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 1Helium Hood Method



SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 2



Negative Pressure Method

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)







Sniffer Method

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 5

SFJ-16C Portable Helium Leak Tester Vaccum Helium Leak Detector Machine Price 6
