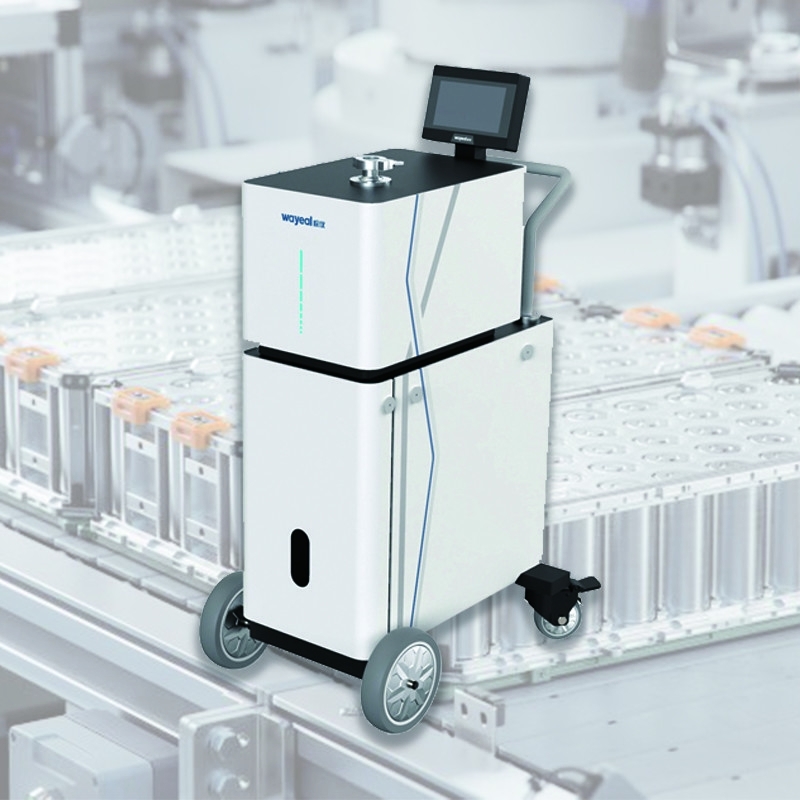

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s Detection Method Helium Mass Spectrometer
Power Supply AC220V, 50Hz/60Hz Diamension 475*714*1168mm
High Light

DN25KF Port Helium Leak Detector

,

DN25KF Port Helium Leak Detector

,

Helium Leak Detection Equipment

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector



The helium leak detector is a state-of-the-art vacuum leak detection device designed for various industrial and scientific applications. It is equipped with advanced ion sources and mass spectrometer detection technology to provide accurate and efficient vacuum detection, making it an essential instrument for any vacuum system.



Technical Parameters of Helium Leak Detector:



DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5.0*10 -13 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode 2.5*10-9 Pa·m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English





Applications of Helium Leak Detector:



The Wayeal helium leak detector SFJ-16D can be used in various industrial settings where the detection of helium leaks is crucial. Some common applications include:



  • Aerospace - used to detect leaks in aircrafts, spacecrafts, and other aerospace equipment to ensure safety and reliability.
  • Automotive - used to test the integrity of vehicle components such as fuel tanks, radiators, and air conditioning systems.
  • Electronics - used to test the seal of electronic devices, such as semiconductors and medical equipment, to prevent contamination and ensure proper functioning.



The SFJ-16C is also suitable for use in laboratories, research facilities, and other industrial settings where leakage can cause significant damage or compromise the quality of the product.


DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 0

Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 1Helium Hood Method



DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 2



Negative Pressure Method

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 4



Sniffer Method

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 5

DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 6DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 7



DN25KF Port Helium Leak Detection Equipment Helium Leak Detector Price 8
