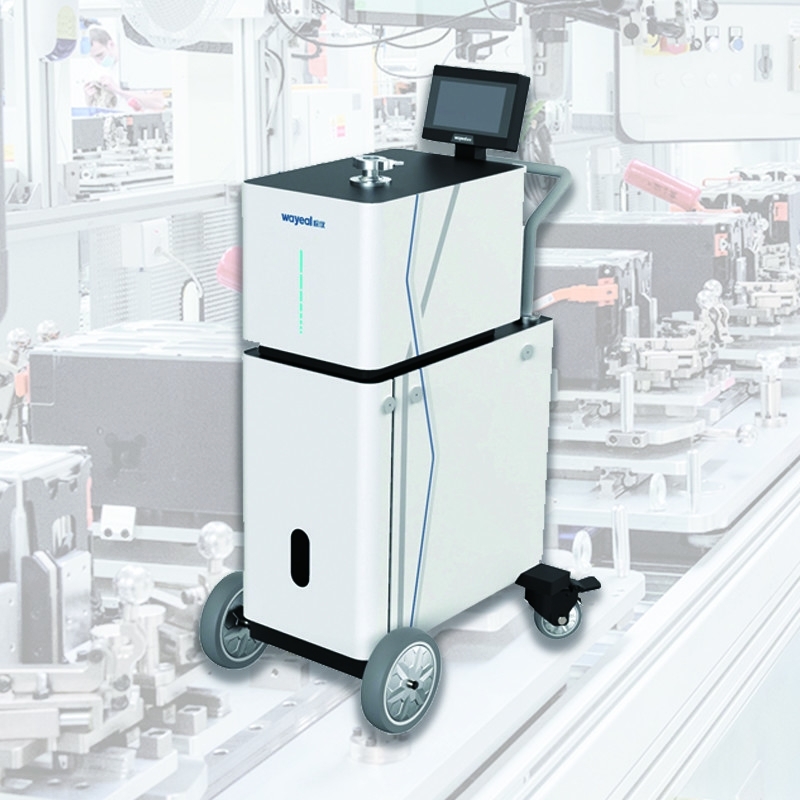

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply AC220V, 50Hz/60Hz Diamension 475*714*1168mm
High Light

1800MPa Helium Leak Detection Equipment

,

Helium Mass Spectrometer Leak Detector

,

1800MPa Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector



Helium leak testing is a method that is used to detect and locate leaks in many different industrial applications. This process involves pressurizing the system or having a component tested with a helium gas mixture. This is then followed by specialized helium leak detectors that are used to sense and measure the helium that escapes from any leaks. By analyzing the amount and concentration of helium, technicians are able to find the exact location of the leak.





Technical Parameters of Helium Leak Detector:



SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1800

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -13 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

2.5*10-9 Pa.m3/s

Startup Time (min)

≤2

Diamension

475*714*1168mm

Power Supply

AC220V, 50Hz/60Hz

Language

Chinese/English





Applications of Helium Leak Detector:



The Wayeal SFJ-16C Helium Leak Detector can be used in various industries and scenarios, including:



1. Automotive: for leak detection in engine blocks, fuel tanks, and other components



2. Aerospace: for identifying leaks in aircraft components and systems



3. HVAC: for detecting leaks in refrigeration systems and air conditioning units



4. Medical Equipment: for testing the integrity of medical devices and equipment



5. Gas Detection: for detecting leaks in gas pipelines, valves, and tanks



6. Vacuum System Maintenance: for monitoring and maintaining vacuum systems in various industries



SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 1Helium Hood Method



SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 2



Negative Pressure Method

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 5





Sniffer Method

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 6

SFJ-16C 1800MPa Helium Leak Detection Equipment Helium Mass Spectrometer Leak Detector 7
