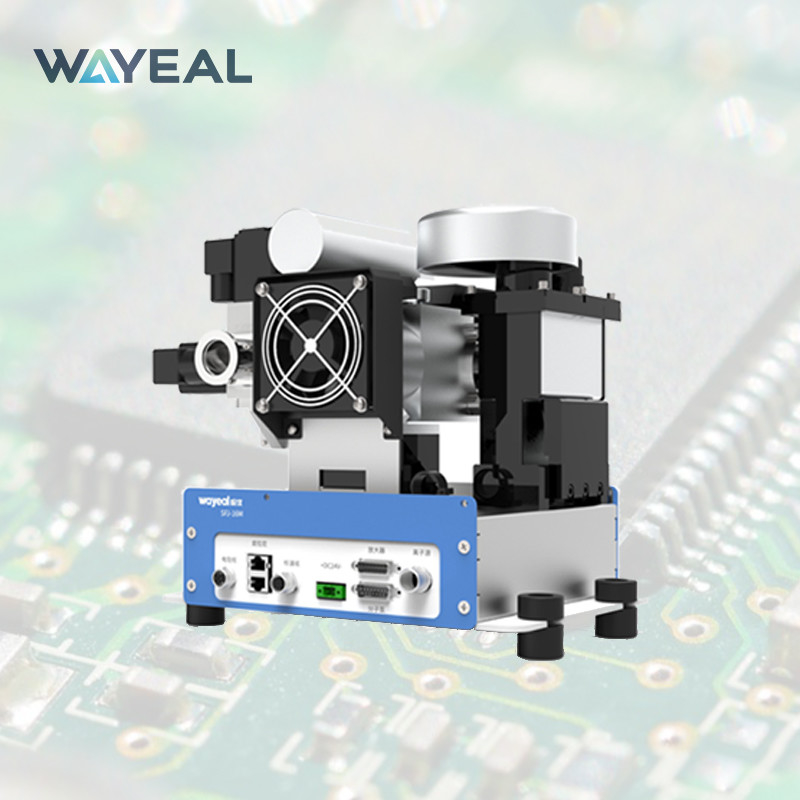

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16M+
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply DC24V(±5%) Diamension 375*283*327mm
High Light

DC24V Helium Leak Detector

,

SFJ-16M+ Helium Leak Detector

,

Modular Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector



The helium leak detector is a state-of-the-art product designed for accurate and reliable detection of vacuum leaks. It utilizes helium mass spectrometer technology to achieve high sensitivity and precision, making it an essential tool for various industries and applications. Helium leak detection is a highly sensitive detection technique, particularly developed to identify extremely small leaks which cannot be detected with standard leak test methods.





Technical Parameters of Helium Leak Detector:

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 5inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (s) <95
Diamension 375*283*327mm
Power Supply DC24V (±5%)
Language Chinese/English





Applications of Helium Leak Detector:



The SFJ-16M+ helium leak detector is equipped with both sniffer leak detection and vacuum leak detection capabilities, making it suitable for a wide range of applications. It can quickly and accurately detect even the smallest helium leaks, ensuring the safety and quality of products. Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. From detecting leaks in refrigeration systems to finding leaks in underground pipelines, helium leak testing has shown efficacy across the everchanging sectors.



SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 1Helium Hood Method



SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 2



Negative Pressure Method

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 5





Sniffer Method

SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price 6
