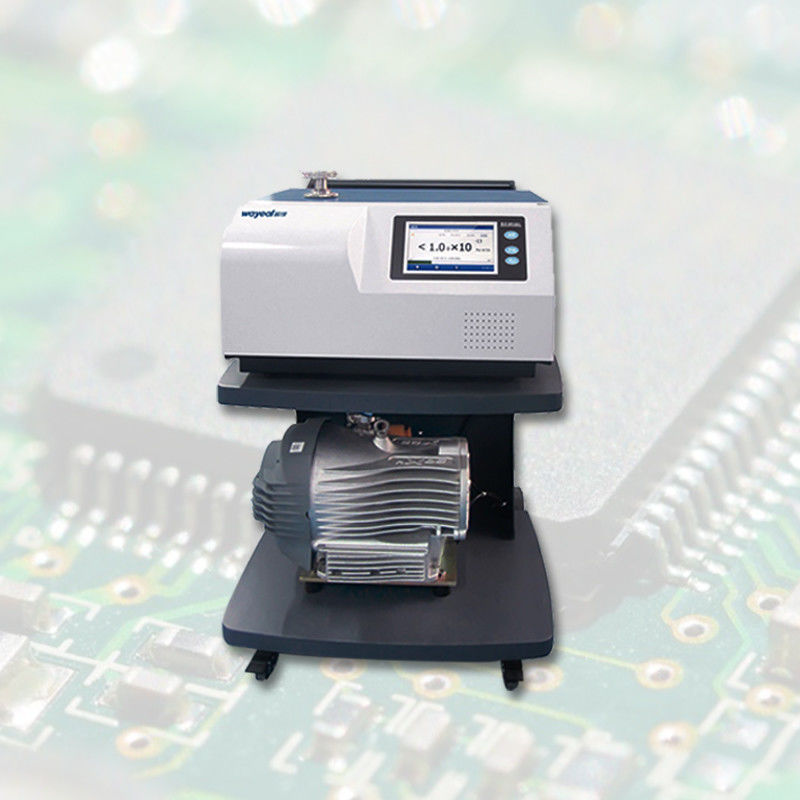

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Operating Temperature 0~40°C Leak Detection Port DN25KF
High Light

Precise Detection Helium Leak Detector

,

Vaccum He Helium Leak Detector

,

SFJ-231D Vaccum Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector



The helium leak detector is a state-of-the-art product designed for efficient and reliable leak detection in various industries. The Helium Leak Detector uses advanced mass spectrometer technology to accurately detect leaks. The helium leak detector has a compact and portable design, making it easy to transport and use in different locations. With its high sensitivity, user-friendly interface, and advanced technology, the Helium Leak Detector is the ultimate solution for efficient and reliable leak detection in any industry.

Technical Parameters of Helium Leak Detector:



SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1500Pa
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (min) ≤2
Diamension 592*498*370mm
Power Supply 220V, 50Hz/60Hz
Language Chinese/English



Applications of Helium Leak Detector:



As a helium mass spectrometer leak detector, the SFJ-231D is equipped with a highly sensitive helium mass spectrometer which can detect helium leak rates as low as 5*10-13 Pa.m3/s in vacuum mode and 5.0*10-9 Pa.m3/s in sniffer mode. This allows for precise and accurate detection of leaks in various types of equipment and systems. With its advanced technology and reliable performance, it has become a popular choice for industries such as semiconductor, pharmaceutical, aerospace, aeronautic industry, mechanical engineering, measuring technology, refrigeration, air conditioning and leak detection systems.





SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 1Helium Hood Method



SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 2



Negative Pressure Method

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 5





Sniffer Method

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 6

SFJ-231D Vaccum He Helium Leak Detector Machine for Precise Leak Detection 7
