Introduction of Helium Leak Detector:
Product Overview - Helium Leak Detector

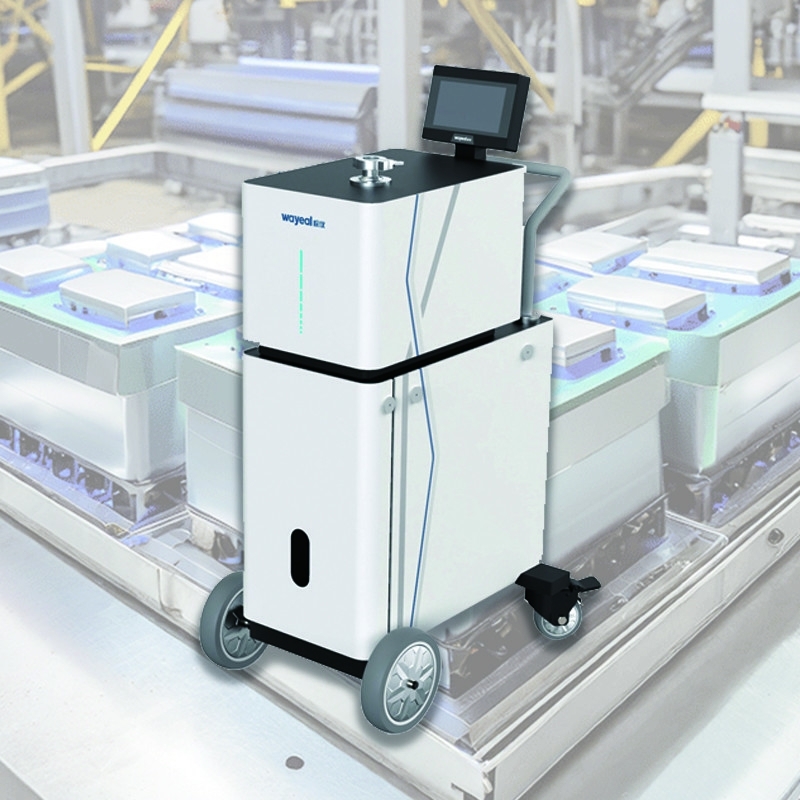

The Helium Leak Detector is a state-of-the-art Mass Spectrometer Leak Detector that is designed for helium leak testing in various industries. This advanced product utilizes the latest technology to provide accurate and reliable results in leak detection.
The Helium Leak Detector is a reliable and versatile product that can be used in various industries, such as automotive, aerospace, and medical. Its advanced technology and user-friendly features make it a valuable tool for detecting and measuring leaks in different systems.
Technical Parameters of Helium Leak Detector:
|
SFJ-16D Advanced Helium Leak Detection Equipment Helium Leak Detector Machine
|
|
Product Name
|
Helium Leak Detector
|
| Detection Method |
Helium Mass Spectrometer |
| Leak Detection Port |
DN25KF |
| Leak Rate Display |
Numbers, Bar Charts, Graphs |
| Response Time(s) |
<1s |
| User Interface |
7inch Color Touch Screen |
| Operating temperature |
0~40°C |
| Max Allowable Leak Detection Pressure (Pa) |
1800 |
| Communication Interface |
RS232/485, LAN |
| Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode |
5.0*10 -13 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode |
2.5*10-9 Pa·m3/s |
| Startup Time (min) |
≤2 |
| Diamension |
475*714*1168mm |
| Power Supply |
AC220V, 50Hz/60Hz |
| Language |
Chinese/English |
Applications of Helium Leak Detector:
The Wayeal helium leak detector SFJ-16D is a highly sensitive and accurate industrial vacuum detection system designed for non-destructive testing. It is widely used in various industries such as semiconductor, aerospace, chemical, and pharmaceutical for detecting and measuring gas leaks. This portable and efficient device is equipped with advanced technology and features that make it the perfect choice for leak detection in industrial settings.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
