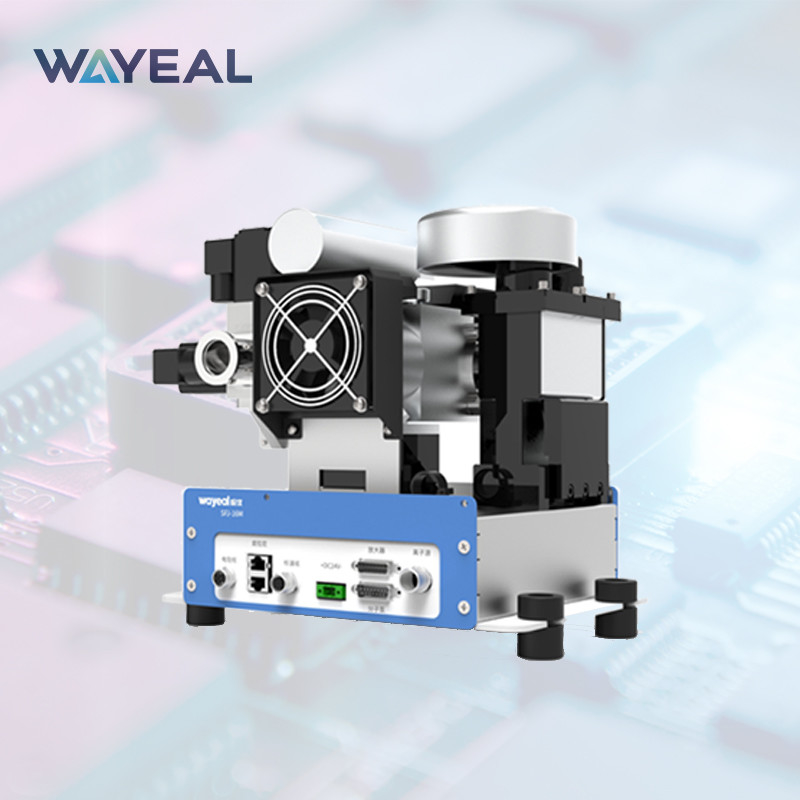

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16M
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s Detection Method Helium Mass Spectrometer
Power Supply DC24V(±5%) Diamension 337*240*318mm
High Light

DC24V Helium Leak Detection Equipment

,

SFJ-16M Helium Leak Detector

,

Vaccum Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



The modular leak detector is designed for integration into industrial leak detector systems. It can be flexibly adapted to a wide range of leak detection applications and environments in the production of electrical and mechanical parts. With helium as tracer gas, theSFJ-16M offers excellent performance for integral and localizing test methods or a combination of both. The modular design and small footprint of the helium leak detector enables it to be easily integrated into existing systems. A particular feature is the leak detector's ease of use.





Technical Parameters of Helium Leak Detector:



SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

ULTRA: DN25KF

FINE: DN16KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

5inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

ULTRA:40

FINE: 200

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

5.0*10 -9 Pa·m3/s

Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode

5.0*10-13 Pa·m3/s

Startup Time (min)

≤2

Diamension

337*240*318mm

Power Supply

DC24V (±5%)

Language

Chinese/English





Features of Helium Leak Detector:


1. Modular structure design for easy system integration.



2. Various system controls available



3. Lightweight and compact



4. Feature-rich and easy to operate,  more reliable and smart





Applications of Helium Leak Detector:



High-quality helium leak detectors can not only effectively improve product quality and production safety, but also effectively reduce the time and cost required for product maintenance and troubleshooting. At present, helium leak detectors have been widely used in semiconductor industry, large area coating, solar industry, accelerators, vacuum components – feedthroughs, valves, bellows, expansion joints, laser technology, ultra-pure media supply, electronics, aeronautics, medical technology and etc.



SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 1Helium Hood Method



SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 2



Negative Pressure Method

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 4



Sniffer Method

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 5

SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 6SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 7



SFJ-16M Helium Leak Detection Equipment Vaccum Helium Leak Detector Price 8
