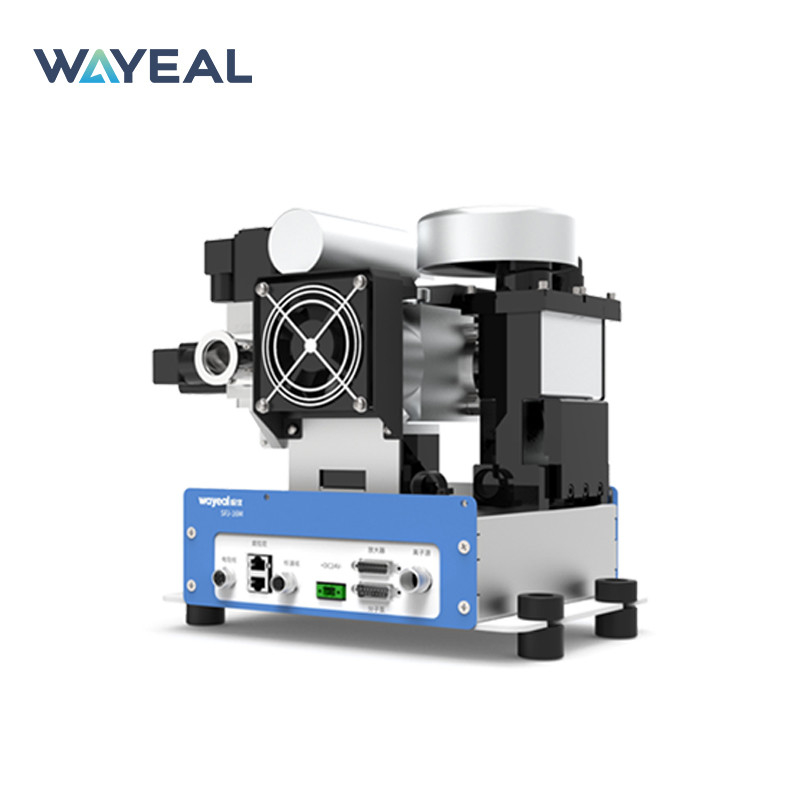

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16M
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply DC24V(±5%) Diamension 337*240*318mm
High Light

5inch Helium Leak Detector

,

Modular Helium Leak Detector

,

SFJ-16M Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



The helium leak detector typically uses a turbo-molecular pump to create a vacuum in the system being tested. A spray of helium is introduced into the system and allowed to circulate for a short period of time. Any helium that escapes through a leak is drawn into the mass spectrometer and detected.







Technical Parameters of Helium Leak Detector:



SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

ULTRA: DN25KF

FINE: DN16KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

5inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

ULTRA:40

FINE: 200

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -9 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

5.0*10-13 Pa.m3/s

Startup Time (min)

≤2

Diamension

337*240*318mm

Power Supply

DC24V (±5%)

Language

Chinese/English



Features of Helium Leak Detector:


1. Modular structure design for easy system integration.



2. Various system controls available



3. Lightweight and compact



4. Feature-rich and easy to operate,  more reliable and smart





Applications of Helium Leak Detector:



High-quality helium leak detectors can not only effectively improve product quality and production safety, but also effectively reduce the time and cost required for product maintenance and troubleshooting. At present, helium leak detectors have been widely used in Automotive, Refrigeration and air conditioning, Packaging, Mechanical parts, valves, new energy, semiconductor and other traditional vaccum industry.





SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 1Helium Hood Method



SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 2



Negative Pressure Method

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 5





Sniffer Method

SFJ-16M 5inch Touch Screen Modular Helium Leak Tester He Helium Leak Detector 6
