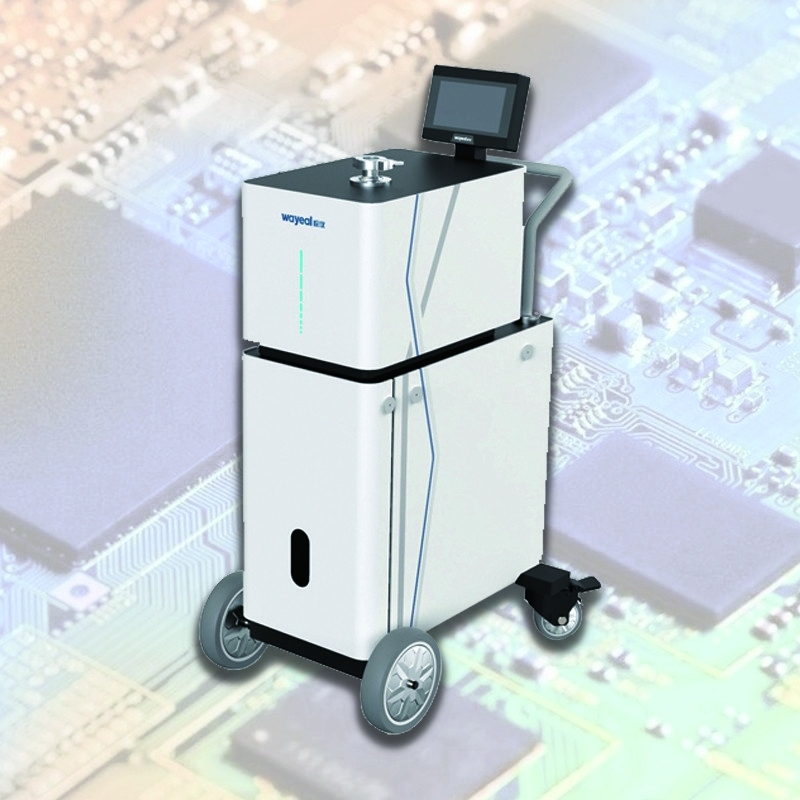

7inch Color Touch Screen Vaccum Helium Leak Detector Device

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He3, He4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s Detection Method Helium Mass Spectrometer
Operating Temperature 0~40°C Leak Detection Port DN25KF
High Light

Vaccum Helium Leak Detector

,

Touch Screen Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector - High Sensitivity Leak Detection Technology



The helium leak detector also known as a mass spectrometer leak detector (MSLD), is used to locate and measure the size of leaks into or out of a system or containing device. The tracer gas, helium, is introduced to a test part that is connected to the leak detector. The helium leaking through the test part enters through the system and this partial pressure is measured and the results are displayed on a meter.



Technical Parameters of Helium Leak Detector:



Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1800Pa

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

2.5*10 -9 Pa·m3/s

Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode

5.0*10-13 Pa·m3/s

Startup Time (min)

≤1.58

Backing Pumps

Rotary Vane Vacuum Pump

Diamension

755*467*1180mm

Power Supply

220V, 50Hz/60Hz

Language

Chinese/English





Applications of Helium Leak Detector:



Application and Usage



The Wayeal Helium Leak Detector SFJ-16C is suitable for a wide range of industries and scenarios, including:

Automotive: This product can be used to detect leaks in automotive air conditioning systems and fuel tanks, ensuring the safety and efficiency of vehicles.



Power Plants: This product can be used to detect leaks in power plant equipment, such as boilers and condensers, to prevent any potential hazards.



Laboratories: It can be used in laboratory settings to detect leaks in gas lines and equipment, ensuring accurate and safe experiments.



7inch Color Touch Screen Vaccum Helium Leak Detector Device 0



Methods of Leak Detection



Helium Vacuum Method

7inch Color Touch Screen Vaccum Helium Leak Detector Device 1

Sniffer Method

7inch Color Touch Screen Vaccum Helium Leak Detector Device 2Helium Hood Method



7inch Color Touch Screen Vaccum Helium Leak Detector Device 3

7inch Color Touch Screen Vaccum Helium Leak Detector Device 47inch Color Touch Screen Vaccum Helium Leak Detector Device 5
