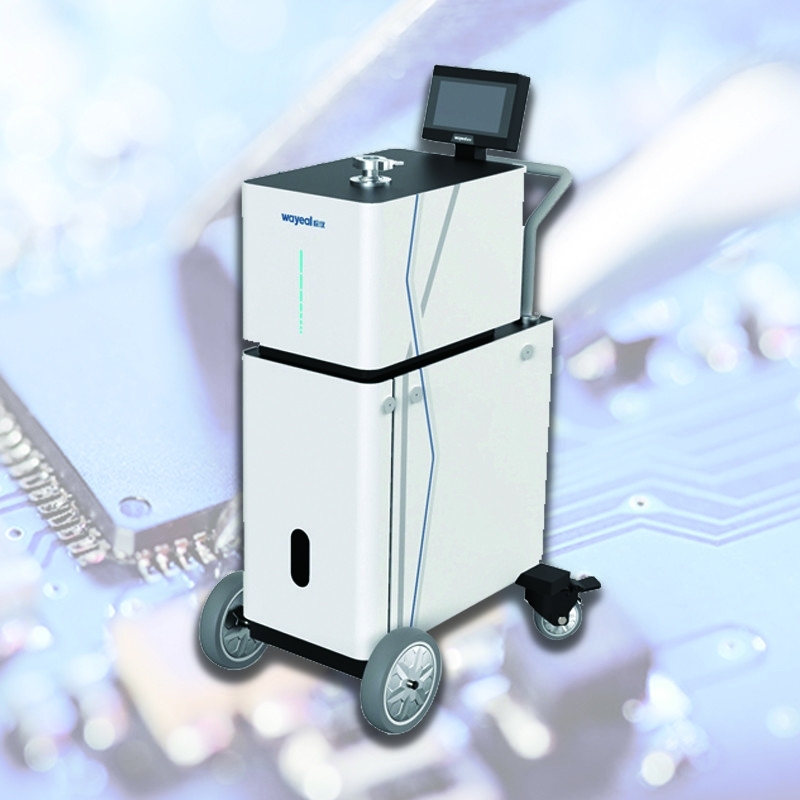

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Diamension 475 * 714 *1168mm
Detection Method Helium Mass Spectrometer I/O Input Output Interface 8 Inputs, 8 Outputs
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Start Time (min) ≤1.58min
MES Interface Standard Max Allowable Leak Detection Pressure (Pa) 1800Pa
High Light

7inch Helium Gas Leak Detector

,

Color Touch Screen Helium Leak Detector

,

Precise Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector SFJ-16C:



Helium Leak Detector



The Helium Leak Detector is a state-of-the-art equipment designed for accurate and efficient helium leak testing in industrial settings. With advanced technology and user-friendly features, it is the top choice for detecting and measuring leaks in various industries. The Helium Leak Detector utilizes the principle of mass spectrometry to detect and measure the presence of helium gas, which is commonly used as a tracer gas for leak testing. With its highly sensitive sensors and advanced ion source, it is able to detect even the smallest leaks with high accuracy.



Technical Parameters of Helium Leak Detector SFJ-16C





Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Mini Leak Detection Rate(Pa.m3/s) Vacuum Mode

5*10 -13 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s) Sniffer Mode

2.5*10 -9 Pa.m3/s

Response Time(s)

<1s

I/O Input Output Interface

8 Inputs, 8 Outputs

Leak Detection Port

DN25KF

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Max Allowable Leak Detection Pressure (Pa)

1800Pa

User Interface

7inch Color Touch Screen

Startup Time (min)

≤1.58

Detectable Quality

2, 3, 4(H2, He-3, He-4)

Backing Pumps

Rotary Vane Vacuum Pump

Communication Interface

RS232/485, LAN

Diamension

755*467*1180mm

Power Supply

220V, 50Hz/60Hz

Operating Temperature

0~40°C

Language

Chinese/English



Applications of Helium Leak Detector:



Helium Leak Detector - Wayeal SFJ-16C



It is widely used in industries such as aerospace, automotive, electronics, medical, and many more. It is suitable for any application that requires precise detection and measurement of leaks in vacuum systems. This product is especially useful in the following scenarios:

  • Vacuum equipment manufacturing: The Helium Leak Detector is used to test the integrity of vacuum chambers, valves, and other components during the manufacturing process.

  • Automotive industry: This product is used to detect leaks in air conditioning systems, fuel tanks, and other crucial components of vehicles.

  • Aerospace industry: The Helium Leak Detector is essential for ensuring the safety and reliability of spacecraft and aircraft by detecting any leaks in their fuel and propulsion systems.

  • Electronics industry: The high sensitivity of the Helium Leak Detector makes it ideal for detecting tiny leaks in electronic components, ensuring their performance and longevity.

  • Medical industry: This product is widely used in medical equipment manufacturing, such as MRI machines and other medical devices that require a vacuum environment.

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection 0



Methods of Leak Detection



Negative Pressure Method

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection 1



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection 2





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection 3





Sniffer Method

7inch Color Touch Screen Helium Leak Detector For Precise Leak Detection 4
