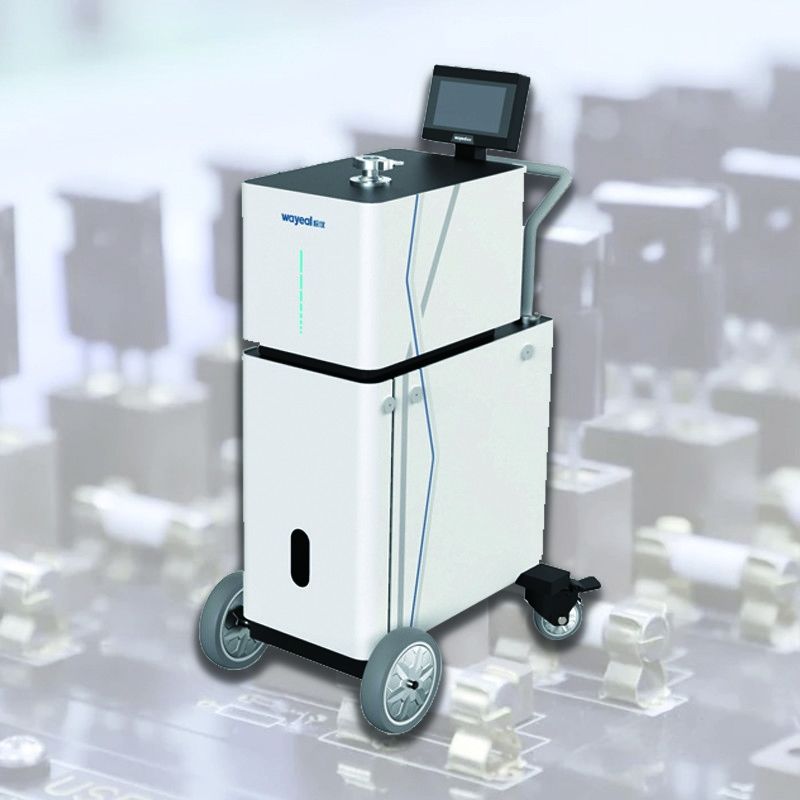

Helium Mass Spectrometer Leak Detector for the Leakage Detection of Evaporator

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Helium Leak Detector User Interface: 7inch Color Touch Screen
I/O Input output interface: 8 Inputs, 8 Outputs Detection Method: Helium Mass Spectrometer
Detectable Quality: 2, 3, 4 (H2, He3, He4) Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode: 2.5*10-9 Pa.m3/s
Response Time(s): <1s Language: Chines/English
High Light:

Portable Helium Mass Spectrometer

,

Helium Vacuum Leak Detector

,

Touch Screen Compact Helium Mass Spectrometer
Product Description

Introduction of Helium Leak Detector SFJ-16C

Helium Leak Detector

The helium leak detector is a highly advanced and efficient product designed to detect the leakage by helium in a variety of industries. This cutting-edge technology is widely used in various industries for non-destructive leak testing, ensuring the safety and reliability of vacuum systems.

Technical Parameters of Helium Leak Detector SFJ-16C

Product Name

Helium Leak Detector

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Mini Leak Detection Rate (Pa·m3/s)/Vaccum Mode

5*10 -13 Pa·m3/s

Start Time (min)

≤1.58min

Detection Method

Helium Mass Spectrometer

MES Interface

Standard

Max Allowable Leak Detection Pressure (Pa)

1800Pa

Dimension (mm)

475 * 714 *1168

I/O Input Output Interface

8 Inputs, 8 Outputs

Leak Rate Display

Numbers, Bar Charts, Graphs

Communication Interface

RS232/485, LAN

Minimum Detectable Leak Rate(Pa·m3/s)/Sniffer Mode

2.5*10-9

Response Time (s)

＜1

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Diamension

755*467*1180mm

Power Supply

220V, 50Hz/60Hz

Applications of Helium Leak Detector SFJ-16C

The Helium Leak Detector is widely used in industries such as aerospace, automotive, medical, and semiconductor for leakage detection and non-destructive leak testing. It is an essential tool for ensuring the safety and reliability of the parts in the automotive, aerospace, refrigeration, ssemiconductor, medical and traditional vaccum industries and detecting potential leaks before they become a major issue.

Methods of Leak Detection

Negative Pressure Method

Helium Mass Spectrometer Leak Detector for the Leakage Detection of Evaporator 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Helium Mass Spectrometer Leak Detector for the Leakage Detection of Evaporator 1





Sniffer Method

Helium Mass Spectrometer Leak Detector for the Leakage Detection of Evaporator 2
