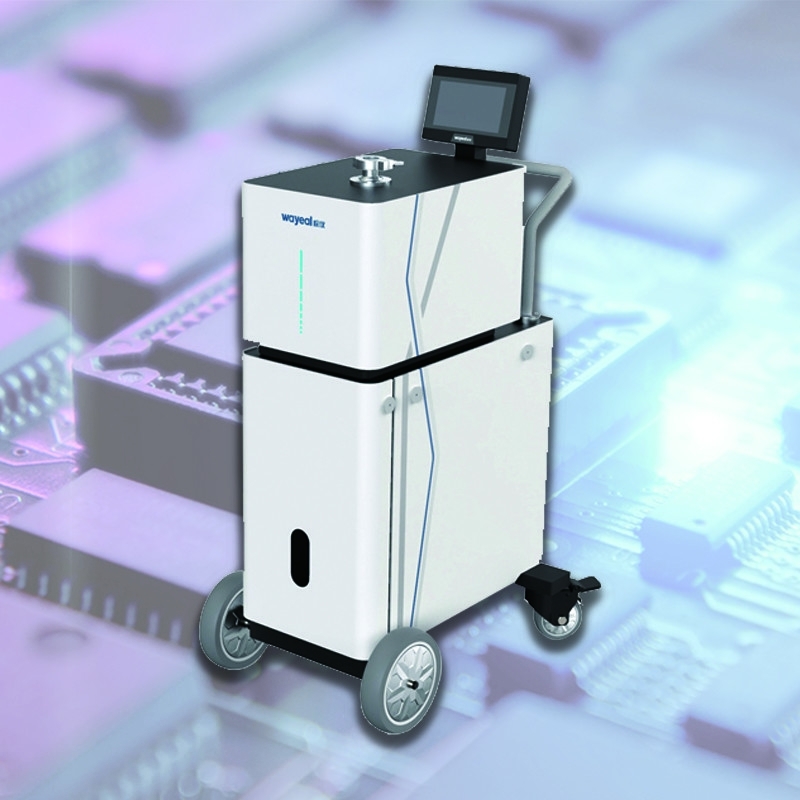

Helium Mass Spectrometer Leak Detector For Semiconductor Industry

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detectable Quality 2, 3, 4 (H2, He3, He4) Product Name Helium Leak Detector
Leak Rate Display Numbers, Bar Charts, Graphs MES Interface Standard
Diamension 475 * 714 *1168mm Communication Interface RS232/485, LAN
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s Response Time(s) <1s
High Light

RS485 Helium Leak Detector

,

Semiconductor Industry Helium Gas Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector

Helium is used as a tracer gas to detect leaks for several reasons. These include the fact that it constitutes only ~ 5 ppm in air so that background levels are very low. Helium has also relatively low mass so that it is ‘mobile’ and is completely inert/non-reactive. Helium is also non-flammable and generally widely available and low cost. Helium leak testing is a method that is used to detect and locate leaks in many different industrial applications. This process involves pressurizing the system or having a component tested with a helium gas mixture. This is then followed by specialized helium leak detectors that are used to sense and measure the helium that escapes from any leaks. By analyzing the amount and concentration of helium, technicians are able to find the exact location of the leak.



Features of Helium Leak Detector



High Sensitivity



A big advantage of using helium for leak detection is its high sensitivity. Helium leak detectors can detect even the smallest leaks, enabling the detection of leaks that could easily go unnoticed with other methods. The high level of sensitivity ensures accurate and reliable leak detection, reducing false positives and minimizing the risk of overlooking future leaks.

Wide Range of Applications

Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. From detecting leaks in refrigeration systems to finding leaks in underground pipelines, helium leak testing has shown efficacy across the everchanging sectors.

Non-Destructive Testing

Another huge advantage of helium leak detection is its non-destructive qualities. Helium leak testing can be performed without causing any harm to the equipment, unlike other methods that may require taking apart, or cause damage to the system to access what may be the leak points.

Compact Design



The Helium Leak Detector has a compact design, making it easy to transport and use in different locations.



Easy Operation



The Helium Leak Detector is user-friendly and easy to operate, making it suitable for both experienced technicians and beginners.

Technical Parameters of Helium Leak Detector

SFJ-16D Helium Mass Spectrometer Leak Detector for the Leak Detection of Semiconductor Industry

Product Name

Helium Leak Detector

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

2.5*10 -9 Pa·m3/s

Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode

5*10 -13 Pa·m3/s

Operating Temperature

0~40°C

Language

Chinese/English

I/O Input Output Interface

8 Inputs, 8 Outputs

Dimension

475 * 714 *1168mm

Max Allowable Leak Detection Pressure (Pa)

1800Pa

Detectable Quality

2, 3, 4 (H2, He3, He4)

MES Interface

Standard

Start Time (min)

≤1.58min

Leak Detection Port

DN25KF

Response Time

<1s

Startup Time (min)

≤1.58

Backing Pumps

Scroll Vacuum Pump

Communication Interface

RS232/485,LAN

Power Supply

220V, 50/60Hz



Applications of Helium Leak Detector:


Helium Leak Detector - Wayeal SFJ-16D

The helium leak detector is an essential device for industries that require high precision and accuracy in detecting leaks. Wayeal, a trusted brand in the field of leak detection:



Application and Scenarios

The Wayeal SFJ-16C helium leak detector is suitable for a wide range of industries that require precision and accuracy in leak detection. Some of the common applications and scenarios where this product can be used are:



  • Vaccum leak detection in electronic devices and components
  • Leak detection in refrigeration and air conditioning systems
  • Leak testing in medical equipment and devices
  • Leak detection in automotive and aerospace industries
  • Leak testing in semiconductor and lithium battery industries



Helium Mass Spectrometer Leak Detector For Semiconductor Industry 0





Methods of Helium Leak Detection



Negative Pressure Method

Helium Mass Spectrometer Leak Detector For Semiconductor Industry 1



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Helium Mass Spectrometer Leak Detector For Semiconductor Industry 2





Sniffer Method

Helium Mass Spectrometer Leak Detector For Semiconductor Industry 3

Helium Mass Spectrometer Leak Detector For Semiconductor Industry 4Helium Mass Spectrometer Leak Detector For Semiconductor Industry 5

Helium Mass Spectrometer Leak Detector For Semiconductor Industry 6
