Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16D

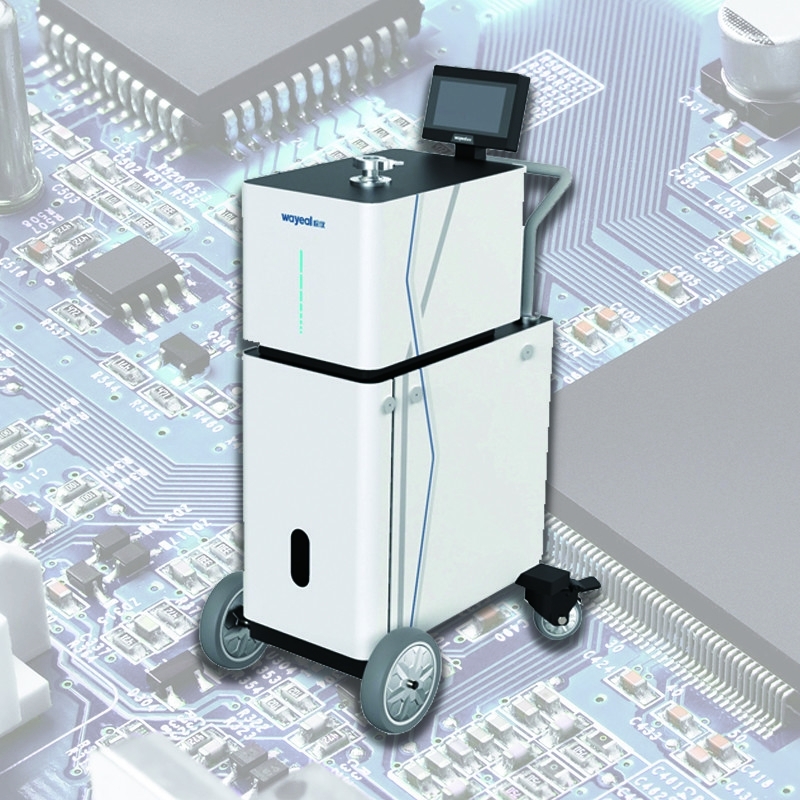

Introduction of Helium Leak Detector
The Wayeal SFJ-16D helium leak detector is a high-quality and efficient vacuum leak detector designed for various industrial applications. It utilizes advanced leak detection technology to accurately detect and measure the leakage of helium gas in vacuum systems, making it an essential tool for maintaining the integrity and efficiency of industrial systems.
Technical Parameters of Helium Leak Detector
|
SFJ-16D Advanced Mass Spectrometer Helium Leak Detector for Healthcare Industry |
|
|---|---|
|
Product Name |
Helium Leak Detector |
|
Dimension |
475 * 714 * 1168mm |
|
Leak rate display |
Numbers, Bar Charts, Graphs |
|
Detection Method |
Helium Mass Spectrometer |
|
Mini Leak Detection Rate (Pa·m3/s)/Vacuum Mode |
5*10-13 Pa·m3/s |
|
Ion Source |
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
|
I/O Input Output Interface |
8 Inputs, 8 Outputs |
|
Detectable Quality |
2, 3, 4 (H2, He3, He4) |
|
Language |
Chinese/English |
|
MES Interface |
Standard |
|
Mini Leak Detection Rate (Pa·m3/s)/Sniffer Mode |
2.5*10-9 Pa·m3/s |
|
Response Time (s) |
<1s |
|
Power Supplier |
220V, 50Hz/60Hz |
|
Maximum Detectable Leak Rate (Pa) |
1800Pa |
|
Startup Time (min) |
≤1.58 |
|
Operating Tempearture |
0~40°C
|
Features of Helium Leak Detector:
1.High Sensitivity: The SFJ-16C has a mini leak detection rate of 2.5*10-9 Pa·m3/s, making it highly sensitive in detecting even the smallest leaks.
2. Efficient and Accurate: With advanced leak detection technology, the SFJ-16C provides accurate and reliable results, saving time and resources for users.
3. User-Friendly Interface: The MES and I/O interfaces make it easy to operate the detector, and the Chinese/English language options cater to a wider range of users.
4. Durable and Reliable: Made with high-quality materials and designed for durability, the SFJ-16C can withstand harsh industrial environments and provide long-term service.
Application Scenarios:
1. Conventional Vacuum Industry: The helium leak detector SFJ-16C is ideal for detecting leaks in vacuum systems used in industries such as aerospace, semiconductor, and medical equipment.
2. Production Line: It can be used in production lines for quality control and testing of vacuum-sealed products, ensuring their safety and reliability.
Methods of Helium Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
