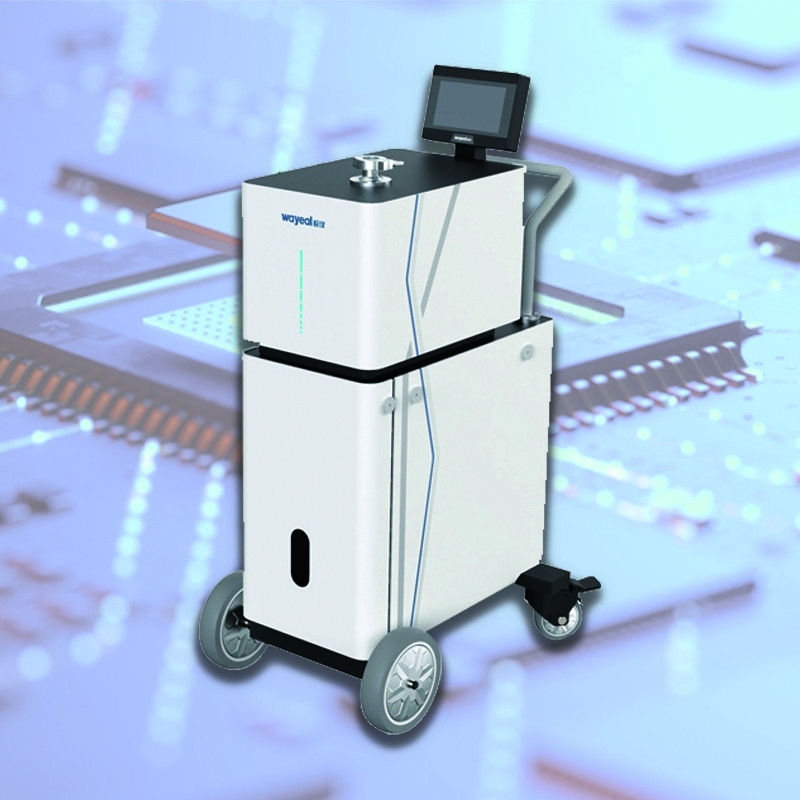

Vacuum Leak Detection Mass Spectrometer Helium Leak Detector For Power Industry

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16D
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Communication Interface: RS232/485, LAN Language: Chines/English
Operating temperature: 0~40°C Detection Method: Helium Mass Spectrometer
Product Name: Helium Leak Detector Detectable Quality: 2, 3, 4 (H2, He3, He4)
Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Leak detection port: DN25KF
High Light:

Mass Spectrometer Helium Leak Detector

,

Power Industry Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

Helium Leak Detector: The Ultimate Solution for Vacuum Detection

The helium leak detector is a highly advanced and efficient product designed for leak testing in various industries. It utilizes the latest technology in helium leak detection systems to provide ultra-sensitive and high-precision results. With its compact design and user-friendly interface, it is the perfect choice for non-destructive testing in any production environment.
Technical Parameters of Helium Leak Detector

Product Name

Helium Leak Detector

Leak Detection Port

DN25KF

Operating Temperature

0~40°C

Language

Chinese/English

Response Time(s)

<1s

MES Interface

Standard

Max Allowable Leak Detection Pressure (Pa)

1800Pa

Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode

5*10-13 Pa·m3/s

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

2.5*10-9 Pa·m3/s

Leak Rate Display

Numbers, Bar Charts, Graphs

Power Supply

220V, 50Hz/60Hz

Backing Pumps

Scroll Vacuum Pump

Ion Source

2pcs, Iridium coated yttrium oxide, automatic switching

Staup Time (min)

≤1.58

Applications of Helium Leak Detector:
Helium Leak Detector - Wayeal
Applications and Scenarios

The Wayeal SFJ-16D Helium Leak Detector can be used in various applications and scenarios, including:

1. Quality control in the semiconductor industry to ensure the integrity of electronic components.

2. Maintenance and troubleshooting in the aerospace industry to detect leaks in aircraft fuel tanks and other critical systems.

3. Leak detection in vacuum systems used in research and development, such as in universities and laboratories.

4. Testing and inspection of pharmaceutical equipment to ensure the safety and quality of medical products.
Methods of Leak Detection

Negative Pressure Method

Vacuum Leak Detection Mass Spectrometer Helium Leak Detector For Power Industry



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Vacuum Leak Detection Mass Spectrometer Helium Leak Detector For Power Industry



Sniffer Method

Vacuum Leak Detection Mass Spectrometer Helium Leak Detector For Power Industry
