IC6300 Fully PEEK Material Ion Chromatography Instrument For Anions And Cations Analysis

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number IC6300
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 30 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Rate Range 0.001~3.000ml/min Column Capacity 2pcs, 250mm And 150mm
Pump Pressure 0~42MPa Eluent Concentration Range KOH、MSA-0.1~100.0mM
Flow Rate Stability <0.2% Concentration Accuracy 0.1mM
Linearity >0.9995 Injection Positions 48 Positions
High Light

Fully PEEK Material Ion Chromatography Instrument

,

Anions Cations Analysis Ion Chromatography Instrument

Leave a Message
Product Description

Ion Chromatography Instrument Introduction:



Ion Chromatography Instrument



Ion chromatography instrument, a form of liquid chromatograph, measures concentrations of ionic species by separating them based on their interaction with a resin. Ionic species separate differently depending on species type and size. Sample solutions pass through a pressurized chromatographic column where ions are absorbed by column constituents. As an ion extraction liquid, known as eluent, runs through the column, the absorbed ions begin separating from the column. The retention time of different species determines the ionic concentrations in the sample.Ion chromatography instrument is used for water chemistry analysis. Ion chromatographs are able to measure concentrations of major anions, such as fluoride, chloride, nitrate, nitrite, and sulfate, as well as major cations such as lithium, sodium, ammonium, potassium, calcium, and magnesium in the parts-per-billion (ppb) range. Concentrations of organic acids can also be measured through ion chromatography instrument.



Parameters of Ion Chromatography Instrument

IC6300 Fully PEEK Material Ion Chromatography Instrument for Anions and Cations Analysis

Product Name

Ion Chromatography Instrument

Working Conditions



Working Power

220V, 50Hz

System Parameters



Qualitative Repeatability

≤1%

Quantitative Repeatability

≤1%

Pump System



Flow Rate

0.001~15.000mL/min

Pressure Range

0~42MPa

Flow Rate Setting Error

<0.2%

Flow Rate Stability

<0.2%

Eluent



Flow Rate Range

0.001~3.000ml/min

Eluent Concentration Range

KOH/MSA 0.1~100.0mM

Accuracy of Concentration

0.1mM

Max Working Pressure

21MPa (3000psi)

Autosampler (AS2800 series)



Quantitative Repeatability

Full loop injection <0.5%RSD

Linearity

>0.9995

Injection Positions

48 Positions

Working Temperature

10~40°C

Sample Bottle

5mL/100mL

Injection Volume

10uL~400uL

Autosampler (AS3110 Series)



Injection Positions

120/64/92 positions for optional

Cooling Temperature

4~30°C

Injector

Standard 500ul, options 250ul, 100ul, 2500ul

Column Oven



Temperature Range

Room temperature, +5℃~70℃

Temperature Control Stability

≤0.1°C

Temperature Setting Error

0.05°C

Column Capacity

250mm and 150mm

Suppressor



Dead Volume

50uL

Suppression Capacity

170ueq/min

Pressure Resistance

3MPa

Conductivity Detector



Baseline Noise

≤0.0005μS/cm

Baseline Drift

≤0.0005μS·cm-1/30min

Min Detection Concentration(Cl)

≤0.0005ug/mL

Min Detection Concentration (Li)

≤0.0002ug/mL

Cell Volume

≤0.4μL

Detector Resolution

0.00238nS/cm

Temperature Setting Error

±0.01°C

Ampere Detector



Drive Voltage Range

-2.048V---2.048V

Drive Voltage Resolution

0.001V

Single Input Range

Integral mode, 50pc---200uC

DC mode

1pA---74uA

Cell Volume

<0.2uL

Min Detection Concentration

I: 0.001μg/mL





Performance of Ion Chromatography Instrument

1. The highest pressure resistant all-PEEK ion chromatography pump with a pressure resistance of up to 42Mpa;



2. Flexible switching of isocratic pump and quaternary pump to meet the needs of various experiments and tests.



3. Reagent-free ion chromatography, which utilizes deionized water electrolysis to produce a precise concentration of eluent, dramatically improves the reproducibility of experimental results.



Applications of Ion Chromatography Instrument:



Wayeal IC6300 is an advanced ion chromatography instrument designed and produced by Wayeal, a leading manufacturer in the field of analytical instruments. It is widely used in various industries and research institutions for the analysis and separation of ions in liquid samples.





Some typical applications of ion chromatography instrument include:

1. Drinking water analysis for pollution and other constituents

2. Determination of water chemistries in aquatic ecosystems

3. Determination of sugar and salt content in foods

4. Isolation of select proteins

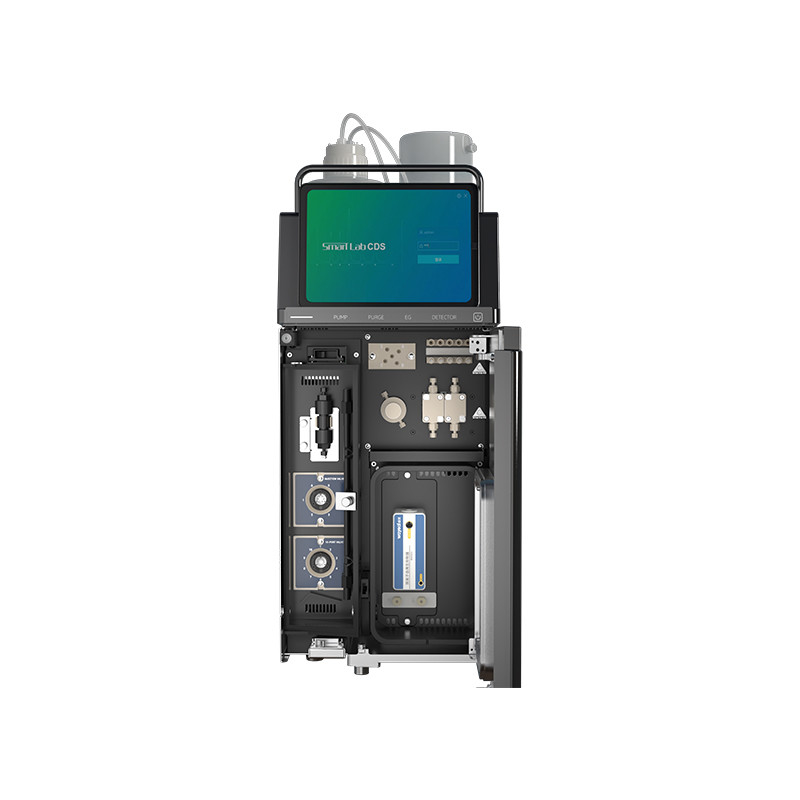

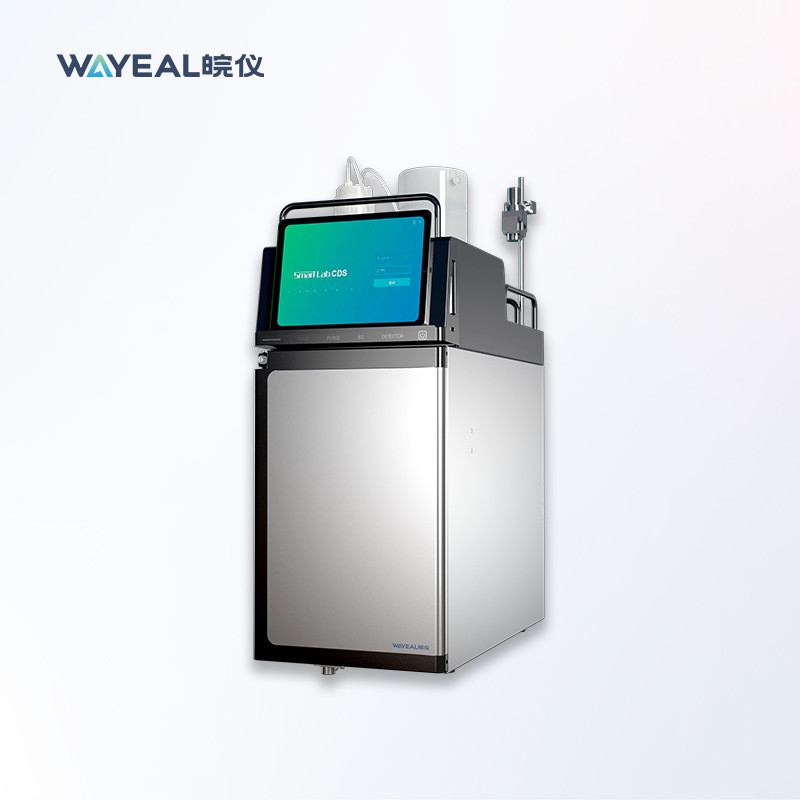

IC6300 Fully PEEK Material Ion Chromatography Instrument For Anions And Cations Analysis 0
