Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
IC6300
Product Description:

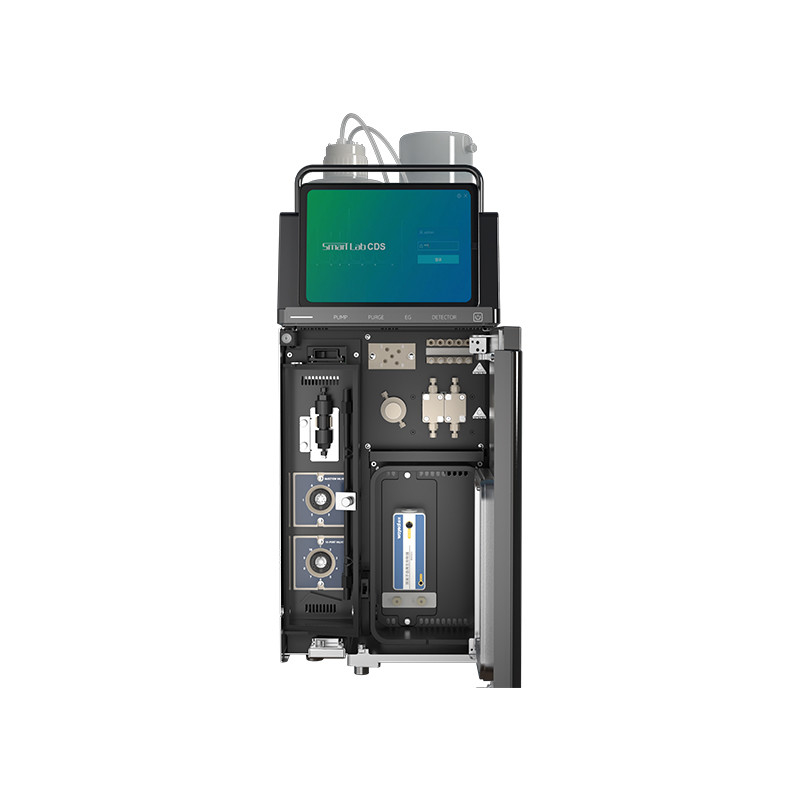

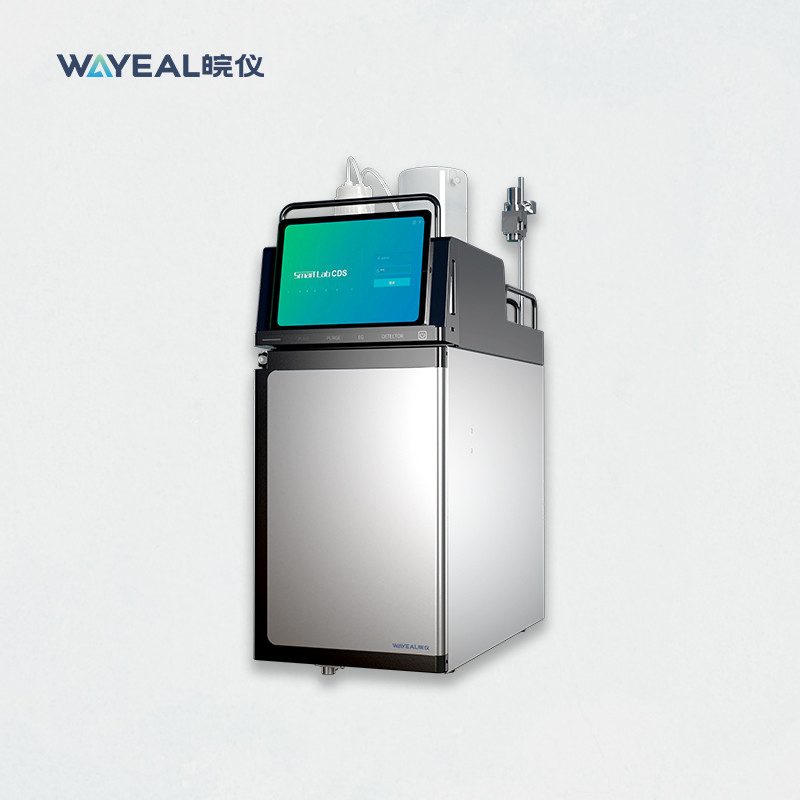

Ion Chromatography Instrument
The ion chromatography instrument is a state-of-the-art analytical tool used for the separation and quantification of ions in various samples. It is equipped with a high-pressure pump, a sample injector, a separation column, a detector, and a data processing unit. It is designed to provide high accuracy, precision, and reliability in ion analysis, making it an essential instrument in a wide range of industries such as environmental, pharmaceutical, food and beverage, and chemical.
|
IC6300 Ion Chromatography Instrument for Accurate Analysis of Nitrite in Food |
|
|---|---|
| Product Name | Ion Chromatography Instrument |
| Working Conditions | |
| Working Power | 220V, 50Hz |
| System Parameters | |
| Qualitative Repeatability | ≤1% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | 0.001～15.000mL/min |
| Pressure Range | 0~42MPa |
| Flow Rate Setting Error | ＜0.2% |
| Flow Rate Stability | ＜0.2% |
| Eluent | |
| Flow Rate Range | 0.001~3.000ml/min |
| Eluent Concentration Range | KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration | 0.1mM |
| Max Working Pressure | 21MPa (3000psi) |
| Autosampler (AS2800 series) | |
| Quantitative Repeatability | Full loop injection ＜0.5%RSD |
| Linearity | ＞0.9995 |
| Injection Positions | 48 Positions |
| Working Temperature | 10~40°C |
| Sample Bottle | 5mL/100mL |
| Injection Volume | 10uL~400uL |
| Autosampler (AS3110 Series) | |
| Injection Positions | 120/64/92 positions for optional |
| Cooling Temperature | 4~30°C |
| Injector | Standard 500ul, options 250ul, 100ul, 2500ul |
| Column Oven | |
| Temperature Range | Room temperature, ＋5℃~70℃ |
| Temperature Control Stability | ≤0.1°C |
| Temperature Setting Error | 0.05°C |
| Column Capacity | 250mm and 150mm |
| Suppressor | |
| Dead Volume | 50uL |
| Suppression Capacity | 170ueq/min |
| Pressure Resistance | 3MPa |
| Conductivity Detector | |
| Baseline Noise | ≤0.0005μS/cm |
| Baseline Drift | ≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) | ≤0.0005ug/mL |
| Min Detection Concentration (Li) | ≤0.0002ug/mL |
| Cell Volume | ≤0.4μL |
| Detector Resolution | 0.00238nS/cm |
| Temperature Setting Error | ±0.01°C |
| Ampere Detector | |
| Drive Voltage Range | -2.048V---2.048V |
| Drive Voltage Resolution | 0.001V |
| Single Input Range | Integral mode, 50pc---200uC |
| DC mode | 1pA---74uA |
| Cell Volume | ＜0.2uL |
| Min Detection Concentration | I: 0.001μg/mL |
Applications of Ion Chromatography Instrument:
Ion Chromatography Instrument - IC6300
The IC6300 is suitable for a wide range of applications in various industries, such as pharmaceuticals, environmental testing, food and beverage, and chemical analysis. It is a must-have instrument for any laboratory or research facility that requires accurate and efficient ion analysis. The instrument's advanced technology and features make it an ideal choice for both routine and complex ion separation and analysis.
Application Scenarios
The IC6300 ion chromatography instrument is a versatile and high-performing instrument that can be used in a variety of applications. Some of the common scenarios where the IC6300 ion chromatography instrument is used are:
Pharmaceuticals: In the pharmaceutical industry, the IC6300 ion chromatography instrument is used for analyzing the purity and concentration of different ions in drugs and pharmaceutical products. It ensures the quality and safety of pharmaceutical products before they are released into the market.
Environmental Testing: The IC6300 ion chromatography instrument is also used in environmental testing to analyze the levels of various ions in water, soil, and air samples. It helps in monitoring and controlling pollution levels and ensuring the safety of the environment.
Food and Beverage: Food and beverage manufacturers use the IC6300 ion chromatography instrument to analyze the levels of ions in their products. This helps in maintaining the quality and safety of food and beverages and ensures compliance with regulatory standards.
Chemical Analysis: The IC6300 ion chromatography instrument is a valuable tool for chemical analysis, especially in the field of research and development. It can accurately separate and analyze different ions in complex chemical mixtures, providing researchers with valuable data and insights.
