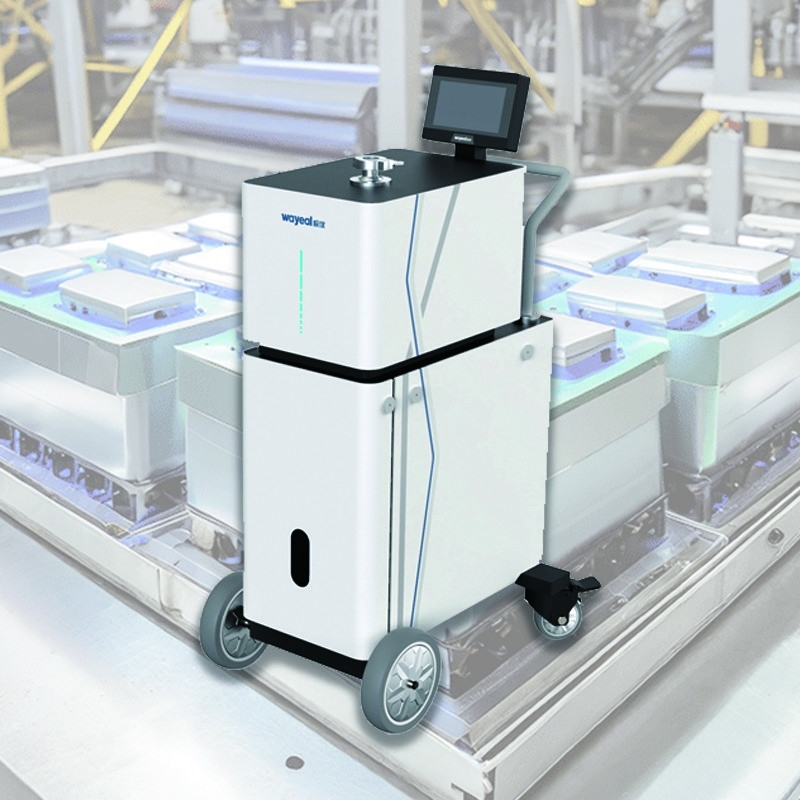

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Operating Temperature 0~40°C
Leak Rate Display Numbers, Bar Charts, Graphs Leak Detection Port DN25KF
I/O Input Output Interface 8 Inputs, 8 Outputs Detectable Quality 2, 3, 4 (H2, He3, He4)
High Light

Power Industry Helium Leak Detector Machine

,

220V Helium Leak Testing Machine

,

Refrigeration Industry Helium Leak Detector

Leave a Message
Product Description

Product Description:



The Helium Leak Detector is the ideal choice for helium leak detection, offering a mini leak detection rate of 5*10-13 Pa.m3/s in vaccum mode and a response time of less than 1 second. It is capable of detecting helium with a max allowable leak detection pressure of 1800Pa, and the detectable quality of 2, 3, and 4 (H2, He3, and He4). This helium mass spectrometer leak detector is a reliable tool for any vaccum leak detection device.



Technical Parameters:

220V High Leak Detection Rate Helium Leak Detector for Refrigeration Industry
Item Technical Data
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Language Chinese/English
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s
Leak rate display Numbers, Bar Charts, Graphs
Detection Method Helium Leak Detection

I/O Input output interface

8 Inputs, 8 Outputs

Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode

2.5*10-9

Response Time (s)

<1

Startup Time (min)

≤ 1.58

Ion Source

2pcs, Irdium coated yttrium oxide, automatic switching

Backing Pumps

Rotary Vane Vaccum Pump

Power Supply

AC220V, 50Hz/60Hz

Temperature

0~40°C



Applications:

Wayeal is a leading provider of helium leak testing solutions with its helium mass spectrometer leak detector SFJ-16C. It can be widely used in the industries like:



Power Industry: Bushing, fuse cylinder, lightningarrester, density meter, dynamicseal, etc.



New Energy Industry: Lithium battery cover plate, battery cell, module, water cold plate, pack, 3C, hydrogen energy, etc.

Customization:

Wayeal SFJ-16C helium leak detector is designed for industrial vacuum detection. It is a high-performance helium mass spectrometer leak detector with excellent performance and stability, as well as high-precision leak detection. It is widely used for vacuum detection in various industries. We accept your OEM orders, like brand, packing and also apperance.



Support and Services:

Helium Leak Detector Technical Support and Service

We provide technical support and service for our helium leak detector product. Our experienced team of technicians, engineers and scientists is available to provide you with the necessary help and advice to keep your system running at its best. We offer technical support for installation, calibration and operation of your helium leak detector. We can provide remote or on-site support, depending on your requirements. Our technicians can provide you with troubleshooting advice and help you address any problems you may have.





Methods of Leak Detection



Negative Pressure Method

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry 2





Sniffer Method

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry 3

220V High Leak Detection Rate Helium Leak Detector For Refrigeration Industry 4
