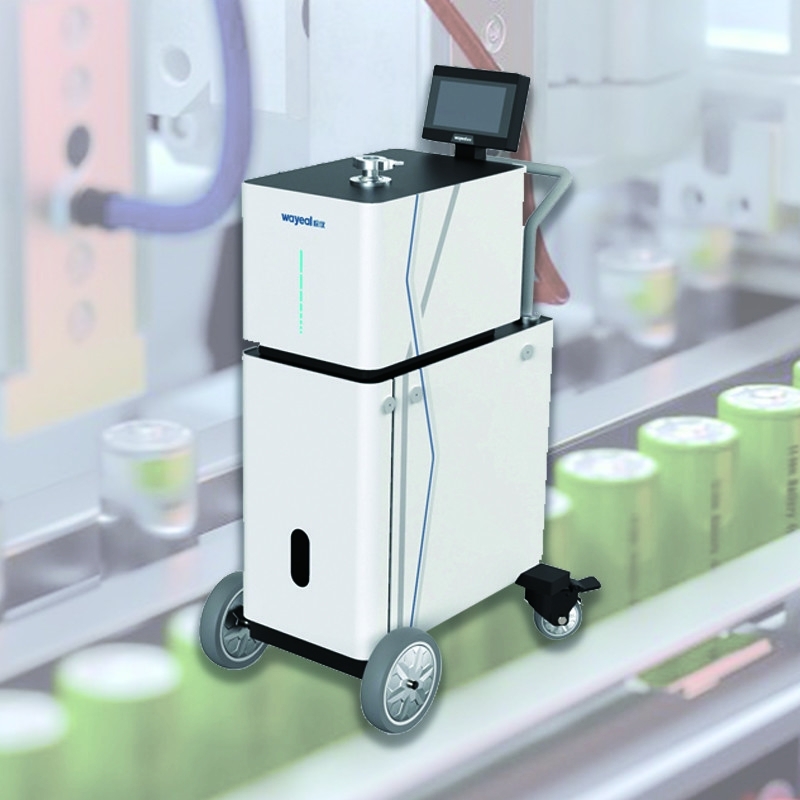

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial

  • Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial
  • Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial
Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leak Rate Display Numbers, Bar Charts, Graphs Start Time (min) ≤1.58min
Language Chines/English Detectable Quality 2, 3, 4 (H2, He3, He4)
Product Name Helium Mass Spectrometer Leak Detector Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Response Time(s) <1s Communication Interface RS232/485, LAN
High Light

Sniffer Helium Mass Spectrometer Leak Detector

,

Vacuum Helium Mass Spectrometer Leak Detector

,

Industrial Vacuum Helium Leak Detector
Leave a Message
Product Description

Product Description:

Helium leak detector is an ideal device for industrial vacuum detection, vaccum leak detection devices and sniffer leak detector. It features high precision and accuracy, and can detect leak rate from 2.5*10-9 Pa.m3/s. Helium leak detection is a process used to measure the size of cracks, holes, and leaks in the product or system being tested. A helium leak detector (also known as a mass spectrometer leak detector or MSLD) is used to conduct the testing. The mass spectrometer pumps out the atmosphere in the test piece or the vacuum chamber, creating negative pressure. After introducing the helium to the test piece, the tracer gas will travel through the imperfection, and the leak detector will read the size of the leak.



Technical Parameters:

Sniffer and Vaccum Mode Helium Mass Spectrometer Leak Detector
Parameters Value
Detection Method Helium Leak Detection
Leak rate display Numbers, Bar Charts, Graphs
Detectable Quality 2, 3, 4 (H2, He3, He4)
Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s
Leak detection port DN25KF
Response Time(s) <1s
Diamension 755*467*1180mm
Start Time (min) <=1.58min
I/O Input output interface 8 Inputs, 8 Outputs
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5.0*10-13 Pa.m3/s
Maximum Detectable Leak Rate (Pa) 1800
HMI 7inch Color LCD touch screen
Backing Pumps Rotary Vane Vacuum Pump
Communication Interface RS232/485, LAN
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English


Applications:



Wayeal SFJ-16C Helium Leak Detector

Wayeal's SFJ-16C Helium Leak Detector is a reliable and precise vacuum leak detection device that is CE certified and is available for purchase with a minimum order quantity of 1 unit. Production parts and assemblies using helium leak detectors can help ensure the integrity of your production process. Examples include hermetically sealed packages, valves, manifolds, seals, vacuum vessels & systems, medical devices, high purity piping, brake lines, fuel lines, hydraulic lines, refrigeration assemblies, radiators, heat exchangers, condensers, and storage tanks.



Customization:



Wayeal's helium leak detector is ideal for pinpointing the location and severity of helium leaks in industrial environments. Our helium leak testing systems are designed to detect even the smallest leaks of helium with the highest accuracy. Our helium leak detectors are equipped with the latest technology, including two pieces of iridium coated yttrium oxide, automatic switching, and DN25KF leak detection port.

With a maximum allowable leak detection pressure of 1800Pa, our helium leak detection systems offer reliable leak testing performance. It is also equipped with RS232/485, LAN communication interface for convenient operation. All our helium leak detectors come with CE certification.



Support and Services:



Helium Leak Detector Technical Support & Services



We provide technical support and services for our Helium Leak Detector products to ensure you have the best experience possible when using them. Our services include:



1. Installation and setup advice



2. Troubleshooting and diagnostics



3. Software and firmware updates



4. User guides and documentation



5. Parts and accessories



6. Repair and maintenance services



7. 1 year warranty





Methods of Leak Detection



Negative Pressure Method

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial 2





Sniffer Method

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial 3

Sniffer And Vacuum Mode Helium Mass Spectrometer Leak Detector For Industrial 4
