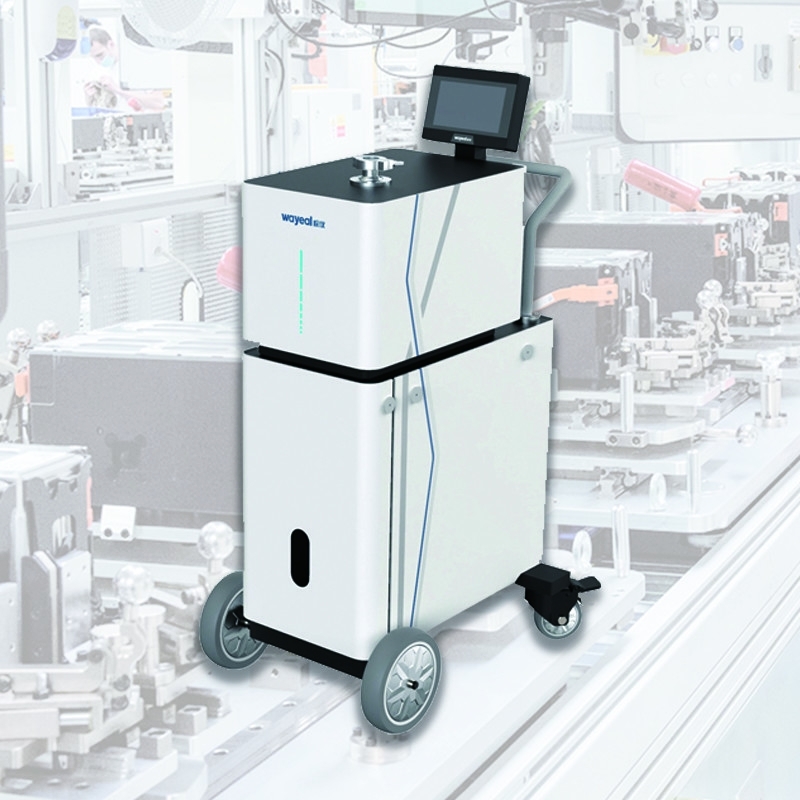

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time(s) <1s Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak Detection Port DN25KF Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Start Time (min) ≤1.58min Language Chines/English
Detection Method Helium Leak Detection Product Name Helium Leak Detector
High Light

Helium Mass Spectrometer Leak Detector 220V

,

RS232 Helium Mass Spectrometer Leak Detector

,

LCD Screen Helium Leak Detector Machine

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector



Helium leak detector is a reliable, advanced and cost-effective solution for helium leak detection supplied by a reliable helium leak detection supplier. This advanced detector is equipped with a helium mass spectrometer leak detector, which can detect and locate helium leaks with up to 1800Pa max allowable leak detection pressure.The helium leak detector is equipped with two ion sources, iridium coated yttrium oxide, which can be switched automatically for reliable detection.





Technical Parameters of Helium Leak Detector:



RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V
Product Name Helium Leak Detector
MES Interface Standard
Response Time(s) <1s
Diamension 755*467*1180mm
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
I/O Input output interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, LAN
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Startup Time (min) ≤1.58
HMI 7inch color LCD touch screen
Ion Source 2pcs, iridium coated yttrium oxide, automatic switching
Backing Pumps Rotary Vanes Vaccum Pump
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C
Language Chinese/English




Applications of Helium Leak Detector:



The helium leak detector is a high-end vacuum detection device manufactured by Wayeal, with model number SFJ-16C.The helium leak detector is widely used in various industries, including pharmaceuticals, aerospace, automotive, and electronics. It is an ideal choice for vacuum detection and helium leak detection applications. With its advanced technologies, the detector is able to detect a leak rate of 5*10-13 Pa.m3/s with a helium mass spectrometer. It is reliable, accurate, and easy to use, making it a perfect choice for customers who are looking for a helium leak detection supplier.



Support and Services:



Helium Leak Detector Technical Support & Services



We offer comprehensive technical support and services for our helium leak detector. Our experienced technicians can provide support and advice for all aspects of the product, including installation, calibration, operation, and maintenance. We can also provide preventive maintenance, troubleshooting, and repair services as needed. If you have any questions or concerns about your helium leak detector, please reach out to us.







Methods of Helium Leak Detector Leak Detection



Negative Pressure Method

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 1





Sniffer Method

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 2

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 3RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 4

RS232/485 Communication Interface Vaccum Helium Mass Spectrometer Leak Detector 220V 5
