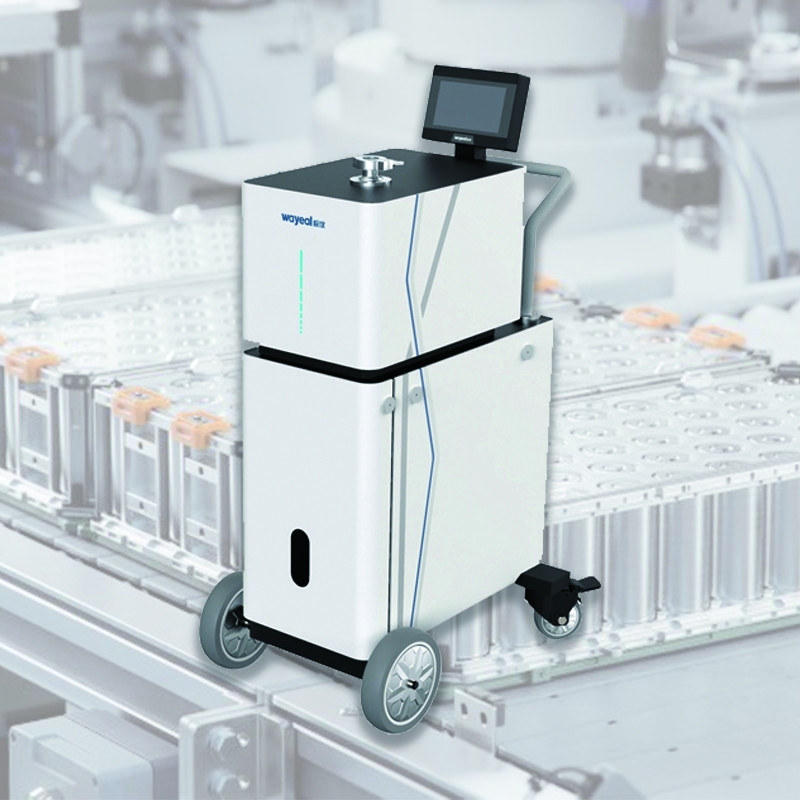

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485

  • Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485
  • Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485
Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Allowable Leak Detection Pressure (Pa) 1800Pa Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Product Name Helium Leak Detector/ Helium Mass Spectrometer Leak Detector MES Interface Standard
Communication Interface RS232/485, LAN Leak Detection Port DN25KF
User Interface 7inch Color Touch Screen Response Time(s) <1s
High Light

Ion Source Mass Spectrometer Leak Detector

,

Iridium Coated Yttrium Oxide Helium Detector

,

Touch Screen Helium Spectrometer
Leave a Message
Product Description

Product Description:



The helium leak detector is an efficient and reliable industrial vacuum detection solution designed for reliable vacuum testing and helium leak testing. Helium leak detectors are the ideal solution for leak detection and leak-tightness testing under vacuum. The test gas helium is safe and a small, light molecule which is suitable for detecting micro leaks. The detection range of helium in vacuum tests lies between 10-9 and 10-13 Pa · m3/s. Helium leak detection is extremely accurate, quantitative and repeatable. Fast cycle times are a further advantage.





Technical Parameters:



Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector

Item

Description

Product Name

Helium Leak Detector

Communication Interface

RS232/485, LAN

Operating Temperature

0~40°C

Dimension

755*467*1180mm

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

2.5*10-9 Pa.m3/s

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

MES Interface

Standard

User Interface

7inch Color Touch Screen

I/O Input Output Interface

8 Inputs, 8 Outputs

Leak Detection Port

DN25KF
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5.0*10-13
Maximum Leak Detectable Leak Rate (Pa) 1800
Response Time (s) <1
Startup Time (min) ≤ 1.58
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
HMI 7inch Color LCD Touch Screen
Backing Pumps Rotary Vane Vaccum Pump
MES Interface Standard
Diamensions 755*467*1180mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English
Leakage Rate Display Figure, Bar Chart, Curve Chart


Applications:

Helium Leak Detector- Wayeal SFJ-16C



Refrigeration Industry:

Evaporator, condenser, airconditioning pipeline,compressor, four-way valve,heat pump, etc.



Traditional Vacuum Industry:

Pump valye, casting, vacuum tube,gas pipe, bellows, LNG, steam, low temperature tank truck, vacuum furnace, vacuum coating, acceleratorand so on.



Customization:

Are you looking for a reliable helium leak detector? Look no further than Wayeal's SFJ-16C Mass Spectrometer Leak Detector! This advanced leak detector is designed to perform accurate and reliable helium leak testing. It offers an impressive minimum leak detection rate of 2.5*10-9 Pa.m3/s and a response time of less than 1 second. We accept your customized brand and packing and also the apperance.



Support and Services:

We provide a variety of services for helium leak detector, including repairs, maintenance, calibration, training, and more. We are dedicated to providing our customers with the highest quality service and support. We offer a one-year free warranty on main parts to ensure that our customers are fully satisfied with their purchase. We also offer a range of technical resources, such as user manuals, tutorials, and troubleshooting guides to help our customers get the most out of their Helium Leak Detectors.





Methods of Leak Detection



Negative Pressure Method

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485 2





Sniffer Method

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485 3

Iridium Coated Yttrium Oxide Ion Source Helium Mass Spectrometer Leak Detector RS232/485 4
