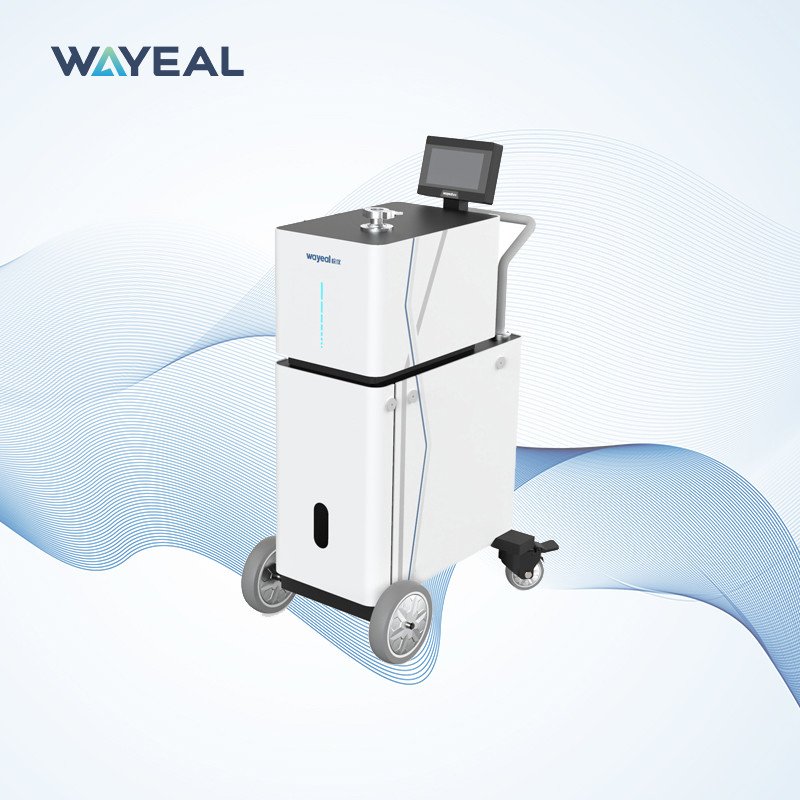

Double Ion Source Helium Leak Detector With 1800Pa Detectable Leak Rate

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Start Time (min): ≤1.58min Max Allowable Leak Detection Pressure (Pa): 1800Pa
MES Interface: Standard Communication Interface: RS232/485, LAN
Diamension: 755*467*1180mm User Interface: 7inch Color Touch Screen
Language: Chines/English Detection Method: Helium Leak Detection
High Light:

Helium Leak Detector RS232

,

Double Ion Source Helium Leak Detector

,

1800Pa Helium Mass Spectrometer Leak Detector
Product Description

Introduction of Helium Leak Detector:

Helium leak detector is an advanced helium mass spectrometer leak detection system designed to provide fast, reliable, and accurate results. With its advanced helium mass spectrometer technology, the detector is excellent for locating even the smallest leaks of helium in a wide range of applications. It is the perfect choice for those seeking an efficient and reliable helium leak detection system.

Technical Parameters of Helium Leak Detector:

Double Ion Source Helium Leak Detector with 1800Pa Detectable Leak Rate

Product Name

Helium Leak Detector

Communication Interface

RS232/485, LAN

I/O Input output interface

8 Inputs, 8 Outputs

Detection Method

Helium Leak Detection

Operating Temperature

0~40°C

Mini Leak Detection Rate (Pa·m3/s)/Sniffer Mode

2.5*10-9 Pa·m3/s

Mini Leak Detection Rate (Pa·m3/s)/Vaccum Mode

5*10-13 Pa·m3/s

User Interface

7 inch Color Touch Screen

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Diamension

755*467*1180mm

Leak Rate Display

Numbers, Bar Charts, Graphs

Keywords

Mass Spectrometer Leak Detector, vaccum leak detection devices, vacuum detection equipment

Respones Time(s)

＜ 1s

Startup Time (min)

≤1.58min

Backing Pumps

Rotary Vane Vaccum Pump

MES Interface

Standard

Diamensions

755*467*1180mm

Power Supply

AC220V, 50Hz/60Hz

Language

Chinese and English

Applications of Helium Leak Detector:

Semiconductor Industry: Packing, chip manufacturing, vacuum machine, epitaxial wafer, wafer, connector, filter, photovoltaic, etc.

Refrigeration Industry: Evaporator, condenser, airconditioning' pipeline, com-pressor, four-wayvalveheat pump, etc.

Methods of Helium Leak Detection

Negative Pressure Method

Double Ion Source Helium Leak Detector With 1800Pa Detectable Leak Rate

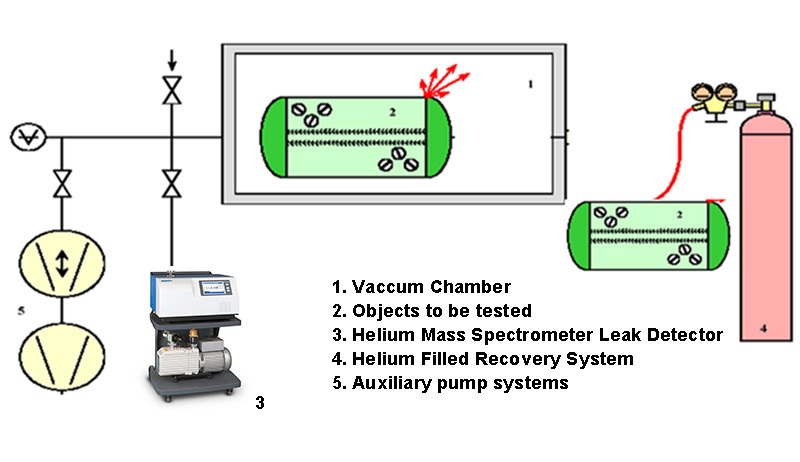

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Double Ion Source Helium Leak Detector With 1800Pa Detectable Leak Rate





Sniffer Method

Double Ion Source Helium Leak Detector With 1800Pa Detectable Leak Rate
