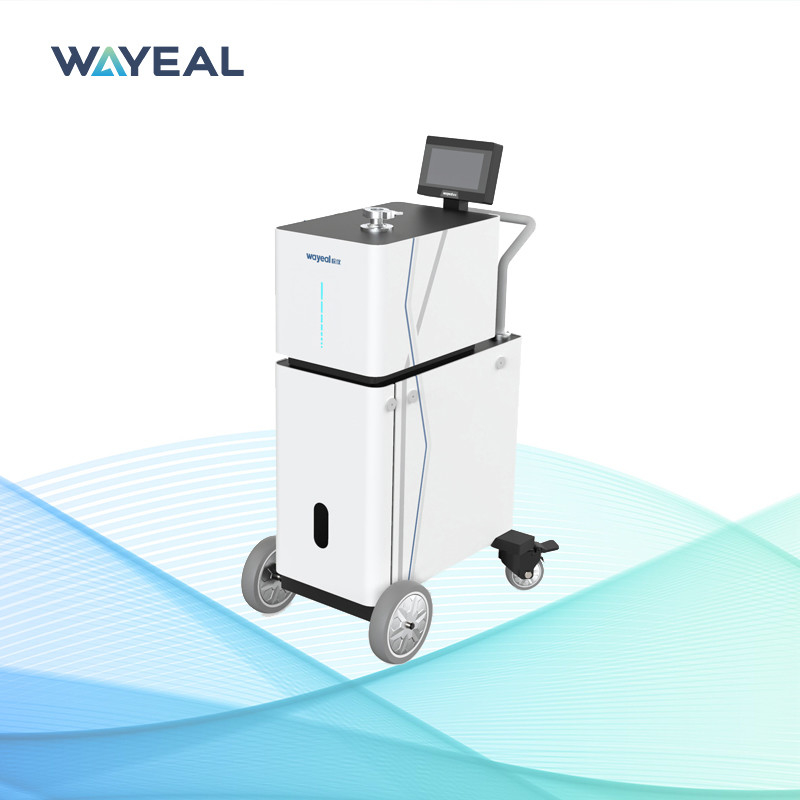

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Allowable Leak Detection Pressure (Pa) 1800Pa User Interface 7inch Color Touch Screen
MES Interface Standard Diamension 755*467*1180mm
Language Chines/English Communication Interface RS232/485, LAN
Leak Detection Port DN25KF Detection Method Helium Leak Detection
High Light

RS485 Helium Mass Spectrometer Leak Detector

,

Vacuum Helium Sniffer Leak Detector

,

Helium Leak Detector 1800Pa

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The helium leak detector is an industrial grade device designed for reliable and accurate helium leak testing in a variety of vacuum applications. It uses helium or hydrogen as leakage indicator gas and uses gas analyzer todetect helium for leak detection. Helium has ow backaround noise, small molecular weight and viscosiy coeficient, so it is easy to pass through theeakage hole and easy to spread: in addition, helium is an inert gas, which does not corrode the equipment, so it is commonly used as leakage gas.Spray the gas onto the tested container connected with gas analyzer adusted to the workina state of reactind only with helium. if there is a leak in thecontainer, the analyzer will react, so as to know the location of the leak and the size of the leak.



Technical Parameters of Helium Leak Detector:



Professional Vaccum Helium Leak Detector with Leak Detection Pressure 1800Pa
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Testing
Communication Interface RS232/485, LAN
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Language Chines/English
Detectable Quality 2, 3, 4 (H2, He3, He4)
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Response Time < 1s
Startup Time ≤ 1.58min
Backing Pumps Rotary Vane Vaccum Pump
MES Interface Standard
Diamensions 7558467*1180mm
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C


Applications of Helium Leak Detector:



The Helium Leak Detector is ideal for any situation requiring the highest level of precision, reliability, and repeatability in vacuum detection and helium leak testing. It is the perfect solution for any industrial environment that needs to maintain the highest standards of quality control.





Methods of Helium Leak Detection



Negative Pressure Method

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 1



Sniffer Method

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 2

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 3Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 4

Vacuum Helium Leak Detector With Leak Detection Pressure 1800Pa 5
