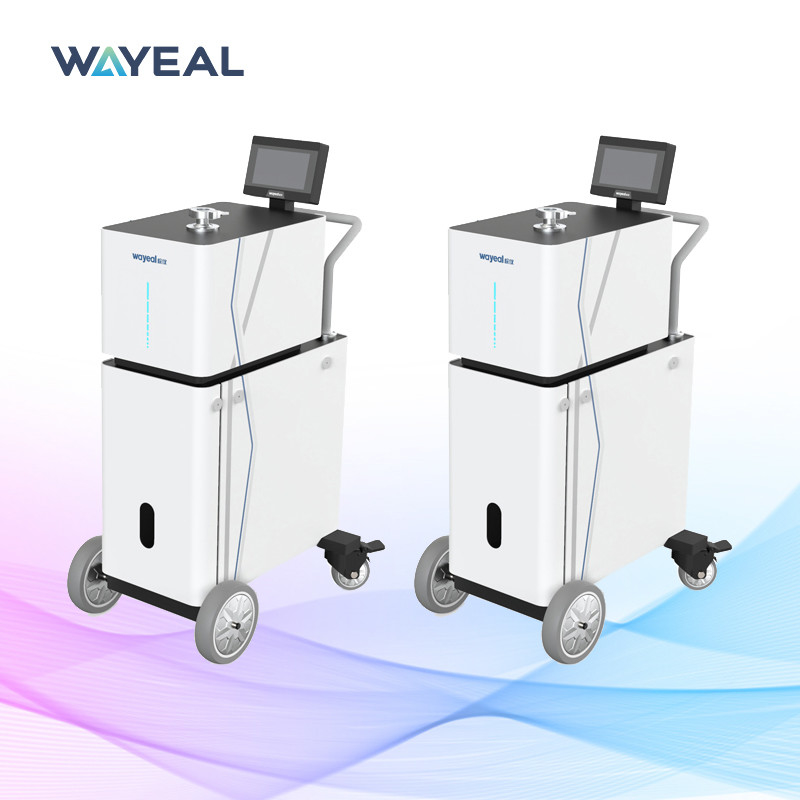

220V Helium Mass Spectrometer Leak Detector For Semiconductor Industry
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | Wayeal |
| Certification | CE |
| Model Number | SFJ-16C |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Wooden Case |
| Delivery Time | 35 days |
| Payment Terms | T/T, VISA |
| Supply Ability | 200 Units/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diamension | 755*467*1180mm | Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
|---|---|---|---|
| Leak Detection Port | DN25KF | MES Interface | Standard |
| Detection Method | Helium Leak Detection | Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode | 5*10-13 Pa.m3/s |
| User Interface | 7inch Color Touch Screen | I/O Input Output Interface | 8 Inputs, 8 Outputs |
| High Light | 220V Helium Mass Spectrometer Leak Detector,Semiconductor Industry Helium Leak Detector,Refrigeration Helium Mass Spectrometer Leak Detector |
||
Product Description
Product Description:
Helium Leak Detector is an advanced vacuum leak detection device for industrial use. It is designed to detect the presence of helium gas at a rate of 2.5*10-9 Pa.m3/s, with a response time of less than 1 second. The built-in ion source consists of two iridium coated yttrium oxide, which are capable of being automatically switched. Helium Leak Detector is ideal for industrial applications, and it is a reliable and cost-effective solution for vacuum leak detection.
Technical Parameters:
|
220V Helium Mass Spectrometer Leak Detector for Semiconductor Industry |
|
|---|---|
|
Technical Parameter |
Specification |
|
Product Name |
Helium Leak Detector |
|
Max Allowable Leak Detection Pressure (Pa) |
1800Pa |
|
Detectable Quality |
2, 3, 4 (H2, He3, He4) |
|
Operating temperature |
0~40°C |
|
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode |
5*10-13 Pa.m3/s |
|
Communication Interface |
RS232/485, LAN |
|
Leak rate display |
Numbers, Bar Charts, Graphs |
|
Diamension |
755*467*1180mm |
|
User Interface |
7inch Color Touch Screen |
|
Detection Method |
Helium Leak Detection |
|
Mini Leak Detection Rate(Pa.m3/s)/sniffer Mode |
2.5*10-9 |
|
Response Time (s) |
<1 |
|
Startup Time (min) |
≤1.58 |
|
Ion Source |
2pcs, Iridium coated yttrium oxide, automatic switching |
|
Main-machine Interface |
7inch Color LCD Touch Screen |
|
Backing Pumps |
Rotary vane vacuum pump |
|
I/O Input/Output Interface |
8 Inputs and 8 outputs |
|
Language |
English/Chinese |
|
Power Supply |
AC220V, 50Hz/60Hz |
Applications:
Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods. Helium is also non-toxic, non-flammable, and does not react with other substances, making it a safe and clean tracer gas for leak detection.
Support and Services:
Helium Leak Detector Technical Support and Services
We provide a comprehensive technical support and service for our Helium Leak Detector. Our experienced technical support team is here to help you with any problems you may have in using our product.
Support Services
- Troubleshooting and technical advice
- Software updates and upgrades
- Replacement parts and accessories
- Calibration and maintenance
- Warranty coverage
Training
We offer a range of training options to help you get the most out of your Helium Leak Detector. Our training courses cover a range of topics including:
- Basic operation
- Leak testing techniques
- Advanced testing methods
- Troubleshooting and maintenance
Methods of Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)
Sniffer Method
