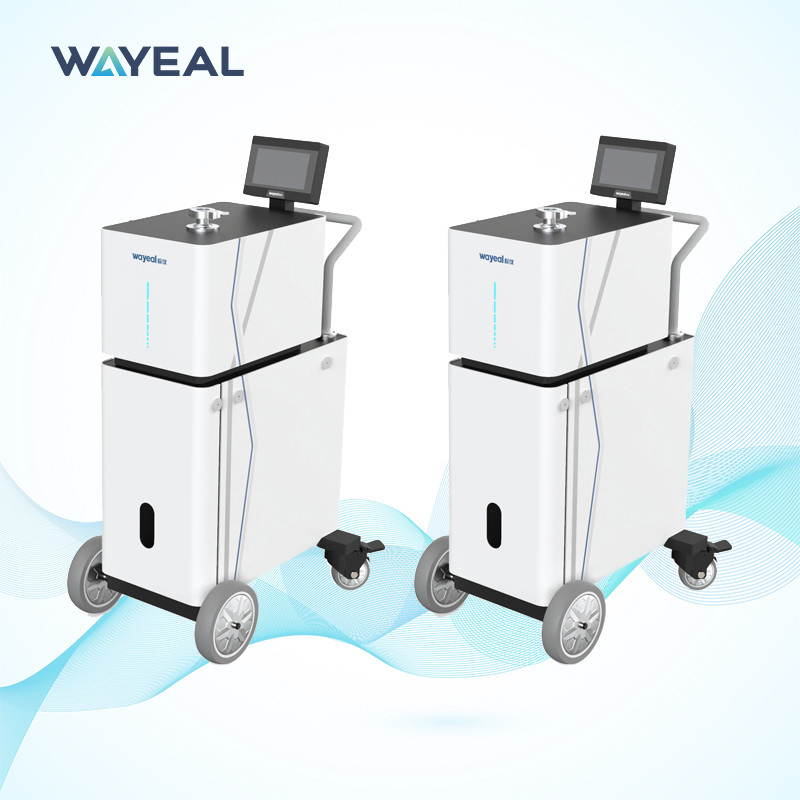

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diamension 755*467*1180mm Operating Temperature 0~40°C
MES Interface Standard Response Time(s) <1s
Language Chines/English Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Leak Detection Port DN25KF Detectable Quality 2, 3, 4 (H2, He3, He4)
High Light

Vacuum Helium Gas Detector

,

Air Conditioning Systems Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



A helium leak detector is a type of instrument used to detect and locate leaks in a sealed system. The working principle of a helium leak detector is based on the fact that helium gas has a very small atomic size. When helium gas is sprayed around a sealed system, it can easily penetrate any leaks in the system and enter the detector.





Technical Parameters of Helium Leak Detector:



Vacuum Helium Mass Spectrometer Leak Detector for Refrigeration and Air Conditioning Systems
Product Name Helium Leak Detector
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Operating temperature 0~40°C
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode 5.0*10-13 Pa·m3/s
User Interface 7inch Color Touch Screen
Language Chines/English
Detection Method Helium Leak Detection
Detectable Quality 2, 3, 4 (H2, He3, He4)
Diamension 755*467*1180mm
I/O Input output interface 8 Inputs, 8 Outputs
Response Time (s) <1
Startup Time (min) ≤1.58
Backing Pumps Rotary vane vacuum pump
Communication Interface RS232/485, LAN
Diamension 755*467*1180mm
Power Supply AC220V, 50Hz/60Hz



Applications of Helium Leak Detector:



Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.



Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.



Support and Services:



Helium Leak Detector Technical Support and Service

We provide comprehensive technical support and services for our Helium Leak Detector. Our team of experienced professionals offers a variety of services, including:

  • Installation and setup of the Helium Leak Detector
  • Calibration and optimization of the device
  • Troubleshooting and repair of any problems with the device
  • Regular maintenance and inspections
  • Custom engineering solutions for specific applications



Methods of Helium Leak Detection



Negative Pressure Method

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 1



Sniffer Method

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 2

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 3Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 4

Vacuum Helium Mass Spectrometer Leak Detector For Refrigeration and Air Conditioning 5
