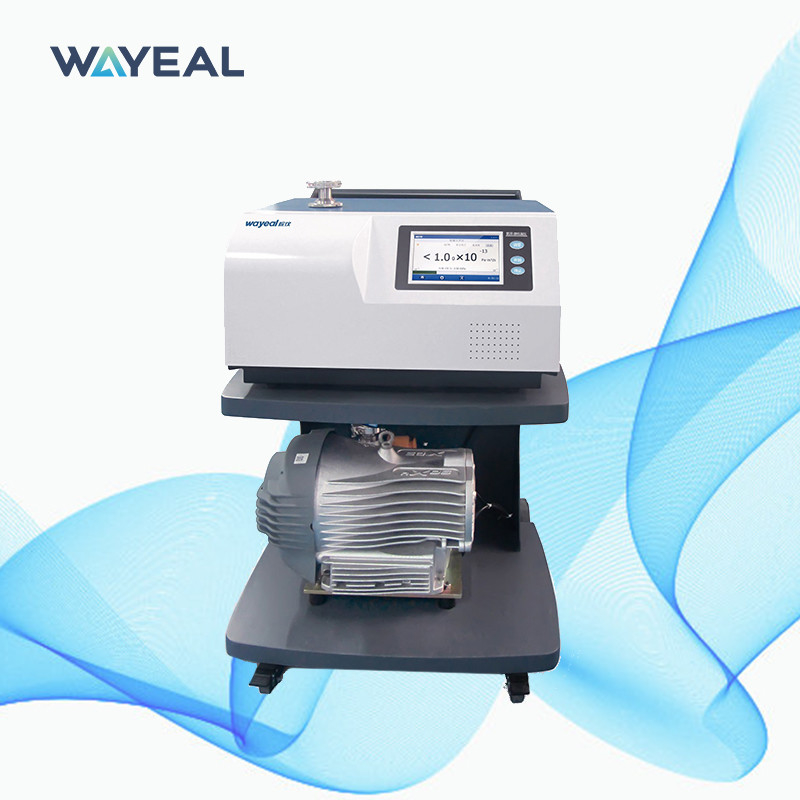

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time(s) <1 Leak Rate Display Numbers, Bar Charts, Graphs
Leak Detection Port DN25KF Diamension 645*678*965mm
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Start Time (min) ≤2
Language Chines/English Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
High Light

DN25KF helium leak tester

,

Imported Vaccum Pump Helium Leak Detector

,

645*678*965 mm helium leak tester

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium Leak Detector is a vaccum leak detector and helium leak testing device, designed to quickly and accurately detect vacuum leaks. Helium leak detectors are the ideal solution for leak detection and leak-tightness testing under vacuum. The helium is safe and a small, light molecule which is suitable for detecting micro leaks. The detection range of Helium in vacuum tests lies in 10-13 Pa · m3/s. Helium leak detection is extremely accurate, quantitative and repeatable. Fast cycle times are a further advantage.



Technical Parameters of Helium Leak Detector:

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory
Product Name Helium Leak Detector
Diamension 645*678*965mm
Detectable Quality 2, 3, 4 (H2, He3, He4)
Max Allowable Leak Detection Pressure (Pa) 1500
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
MES Interface Standard
Start Time (min) ≤2
Leak rate display Numbers, Bar Charts, Graphs
User Interface 7inch Color Touch Screen
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Communication Interface RS232/485, USB*2
Leak Port DN25KF
Power Supply AC220V, 50Hz/60Hz
Language Chinese and English

Support and Services:
Helium Leak Detector Technical Support and Service

We provide reliable technical support and service for the Helium Leak Detector product. Our team of experts is available to answer questions and provide guidance on proper usage of the product, as well as provide any necessary repairs or maintenance services. We offer both on-site and remote technical support and service, so you can be sure you’ll have the help you need when you need it.





Methods of Helium Leak Detection



Negative Pressure Method

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 2





Sniffer Method

Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 3



Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 4Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 5



Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory 6
