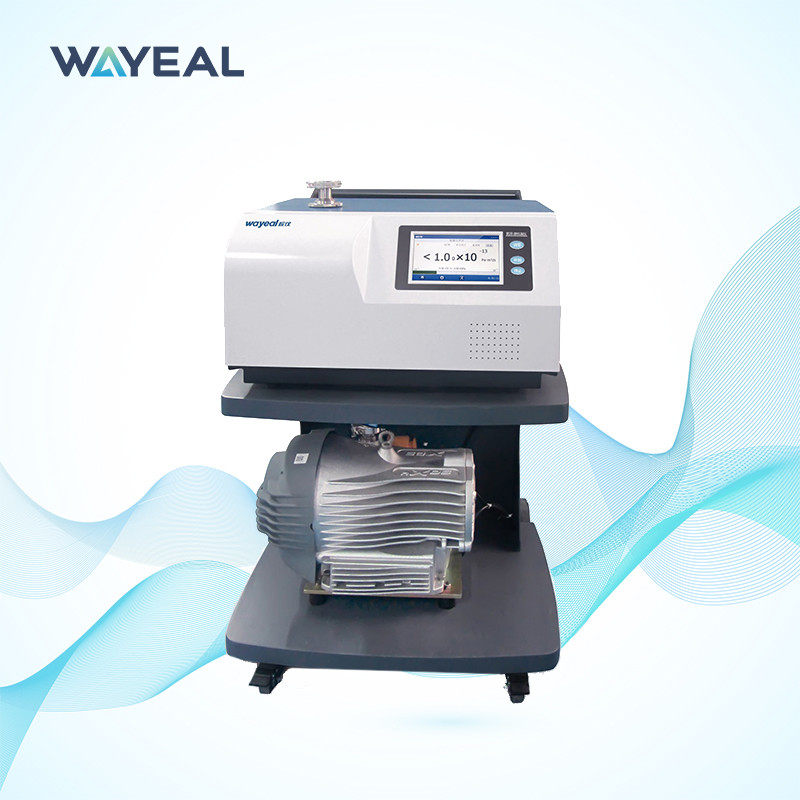

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Operating Temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1500 Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak Rate Display Numbers, Bar Charts, Graphs Leak Detection Port DN25KF
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s MES Interface Standard
High Light

1500Pa Helium Leak Detector

,

Vacuum Mode helium leak tester

,

Vacuum He4 helium leak tester

Leave a Message
Product Description

Product Description:



Helium Leak Detector is a professional gas leak detection device, specifically designed to detect helium leakage and quantify the leakage rate. It is designed to detect helium with quality 2, 3 and 4 (H2, He3, He4) with maximum allowable leak detection pressure of 1500 Pa. Helium Leak Detector is an ideal tool for those who need to detect and pinpoint helium leakage and provide reliable and accurate leak rate. It is an ideal choice for industrial applications, such as sniffer leak detection, leak testing, research and development, component testing, and gas systems maintenance.



Helium Leak Detector is a great choice for helium leak detection. The device is designed to provide reliable and accurate leak rate, and is suitable for a wide range of applications. It is perfect for industrial and research applications, as it can detect and pinpoint helium leakage quickly and accurately.

Technical Parameters:

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure

Parameter

Value

Detection Method

Helium Leak Detection

Ion Source

2pcs,Iridium Coated Yttrium Oxide, Automatic Switching

Response Time(s)

<1

Operating temperature

0~40°C

MES Interface

Standard

Max Allowable Leak Detection Pressure (Pa)

1500Pa

Product Name

Helium Leak Detector

Leak detection port

DN25KF

Detectable Quality

2, 3, 4 (H2, He3, He4)

Diamension

645*678*965mm

Minimum Detectable Leak Rate(Pa.m3/s) Vacuum Mode 5.0x10-13 Pa.m3/s
Minimum Detectable Leak Rate(Pa.m3/s) Sniffer Mode 5.0x10-9 Pa.m3/s
Startup Time (s) ≤2 min
I/O Input/Output 8 Inputs and 8 outputs
Communication Interface RS232/485, USB*2
Power Supply AC220V, 50Hz/60Hz
Language Chinese and English


Applications:

Power System: engine water/oil channel, cylinder head valve, spark plug, powertrain, rear oil seal, oil pan, heat flow tube, oil filter, air filter, oil pump housing/assembly, water pump housing/assembly turbocharger,etc.



New Energy Industry
Charging gun, pack battery pack, motor, water cold plate, controller, wiring harness, connector, bipolarplate, electric pile, hydrogen channel, oxygen channel, waterway, etc
.

Support and Services:

Helium Leak Detector Technical Support & Service

Our team is here to provide technical support and service for your Helium Leak Detector. We provide a wide range of services, including installation and calibration, maintenance and troubleshooting, and repair and replacement of parts. We also provide training and advice to ensure that you are using the Helium Leak Detector correctly.





Methods of Leak Detection

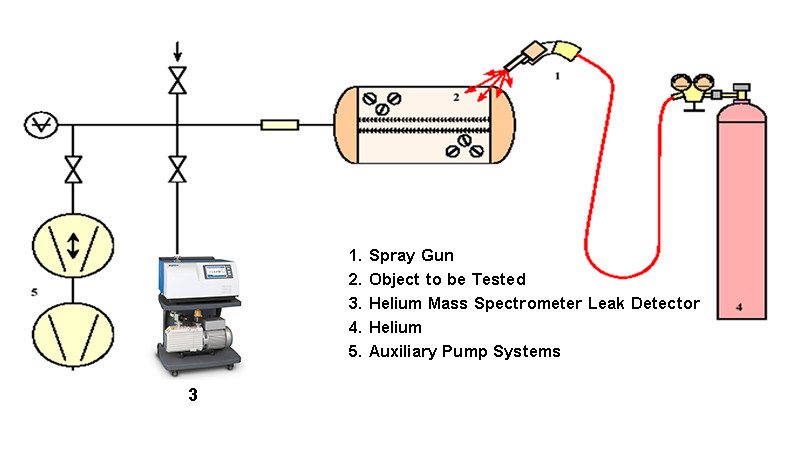

Negative Pressure Method

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure 2





Sniffer Method

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure 3

Helium Mass Spectrometer Leak Detector With 1500Pa Leak Detection Pressure 4
