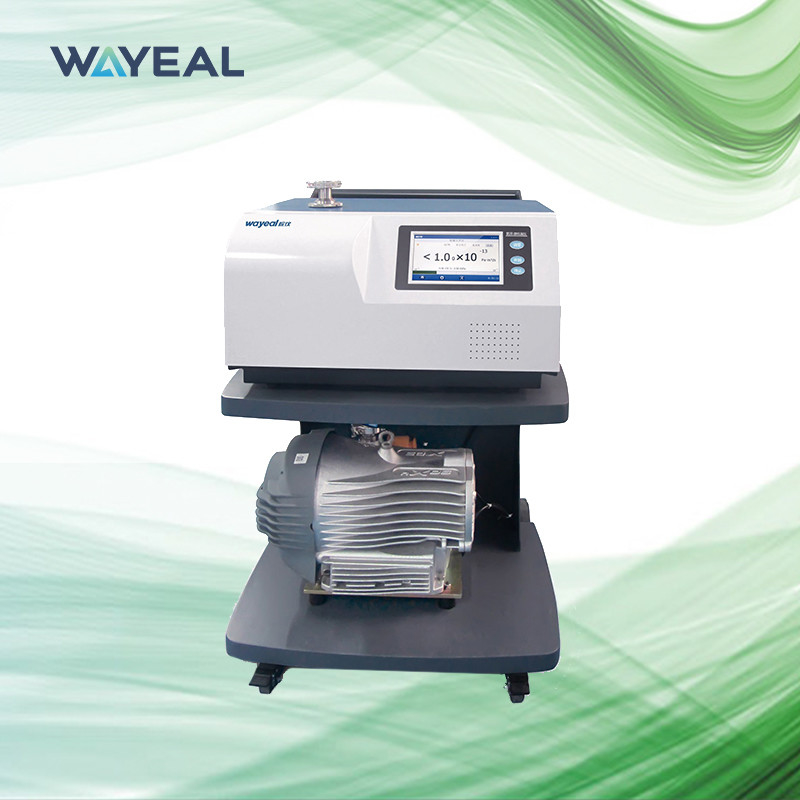

Superior Vacuum Detection System Helium Mass Spectrometer Leak Detector

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-231d
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
I/O Input output interface: 8 Inputs, 8 Outputs Product Name: Helium Leak Detector
Start Time (min): ≤2 Response Time(s): <1
MES Interface: Standard Diamension: 645*678*965mm
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa.m3/s Detectable Quality: 2, 3, 4 (H2, He3, He4)
High Light:

MES Interface helium leak tester

,

645*678*965 helium leak tester

,

Superior Vacuum Detection Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

Helium Leak Detector

For decades, helium leak detection has been a go-to technique for finding and fixing leaks in a variety of industries. Introducing the helium leak detector, a state-of-the-art device that offers unparalleled performance and accuracy in helium leak detection. The helium leak detector is equipped with two ion sources, both of which are coated with iridium-coated yttrium oxide, and feature an automatic switching system. As an innovative sniffer leak detector, it can be used in a variety of vacuum detection applications. Whether you’re looking for a reliable and accurate helium leak detector, or a reliable leak detection supplier, the Wayeal helium leak detector is the perfect choice.

Technical Parameters of Helium Leak Detector:

Product Name

Helium Leak Detector

User Interface

7inch Color Touch Screen

Leak detection port

DN25KF

I/O Input output interface

8 Inputs, 8 Outputs

Dimension

645*678*965mm

MES Interface

Standard

Detection Method

Helium Leak Detection

Detectable Quality

2, 3, 4 (H2, He3, He4)

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

5*10-9 Pa·m3/s
Mini Leak Detection Rate (Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Response Time (s) ＜1s
Startup Time(min) ≤2min
I/O Input/Output Interface 8 Inputs and 8 Outputs
Communication Interface RS232/485, USB*2
Product Size 645*678*965mm
Power Supply AC220V, 50Hz/60Hz

Applications of Helium Leak Detector:

Wayeal's helium leak detector is ideal for a variety of helium leak detection and testing applications. It provides an effective solution for industrial, medical and scientific research. It is suitable for vacuum systems, leak detection of containers, valves, pipes, and other components. It is widely used in the automotive, chemical, pharmaceutical, and aerospace industries. It is also the ideal choice for laboratories and research institutes that require accurate and reliable leak detection.

Support and Services:

Helium Leak Detector Technical Support and Service

We offer technical support and service for our Helium Leak Detector products. Our team of engineers is available to answer the questions you may have about our products, and we also provide training, installation, maintenance, and troubleshooting services you may be experiencing.

Methods of Helium Leak Detection

Negative Pressure Method

Superior Vacuum Detection System Helium Mass Spectrometer Leak Detector



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Superior Vacuum Detection System Helium Mass Spectrometer Leak Detector





Sniffer Method

Superior Vacuum Detection System Helium Mass Spectrometer Leak Detector
