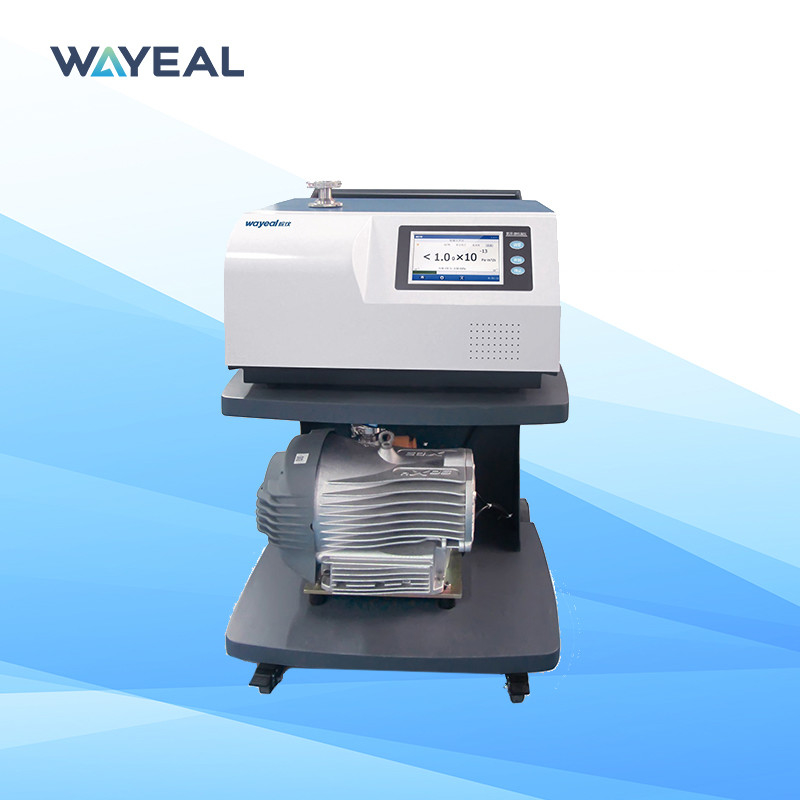

SFJ-231d Pressure Test Method Helium Mass Spectrometer Leak Detector

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-231d
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Leak detection port: DN25KF Communication Interface: RS232/485, USB*2
I/O Input output interface: 8 Inputs, 8 Outputs Response Time(s): <1
User Interface: 7inch Color Touch Screen Start Time (min): ≤2
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa.m3/s Product Name: Helium Leak Detector
High Light:

USB*2 helium leak tester

,

Highly Accurate helium leak detection system

,

7inch Touch Screen helium leak tester
Product Description

Introduction of Helium Leak Detector:

Helium Leak Detector

The helium leak detector is a comprehensive solution for detecting and locating leaks, designed for use in industrial and research environments. This leak detector is an ideal tool for testing the integrity of vacuum chambers, pipes, tanks and other systems. It features a highly sensitive ion source and offers superior leak detection accuracy, with a minimum leak detection rate of 5 x 10-13 Pa·m3/s in vaccum mode. The helium leak detector is a reliable and cost-effective leak detector that can detect and locate even the smallest leaks. Its two iridium coated yttrium oxide ion sources provide automatic switching for better performance and faster leak detection. As a leading helium leak detection supplier, we offer a superior quality product that is incredibly easy to use and maintain.

Technical Parameters of Helium Leak Detector:

SFJ-231D Pressure Test Method Helium Mass Spectrometer Leak Detector
Diamension 645*678*965mm
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
MES Interface Standard
Response Time(s) <1s
Startip Time (min) ≤ 2min
Operating Temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak Port DN25KF
Max Allowable Leak Detection Pressure (Pa) 1500
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
User Interface 7inch Color Touch Screen
Ion Source 2pcs, iridium coated yttrium oxide, automic switching
I/O Input/Output Interface 8 Inputs and 8 Outputs
Communication Interface RS232/485, USB*2
Power Supply AC220V, 50Hz/60Hz
  Applications of Helium Leak Detector:

Cooling system: oil cooler, radiator, intercooler, oil cooler, thermostat, etc

Electrical system: battery, lamp, air conditioning parts, waterproof electric plug, solenoid valve, electriccontrol box, electronic spray system, etc

Support and Services:

Helium Leak Detector Technical Support & Services

We offer a wide range of technical support and services for our Helium Leak Detector product. Our team of experienced technicians and engineers are available to provide assistance with installation, repair, and maintenance. We also offer remote support via phone and email.

Methods of Helium Leak Detection

Negative Pressure Method

SFJ-231d Pressure Test Method Helium Mass Spectrometer Leak Detector



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231d Pressure Test Method Helium Mass Spectrometer Leak Detector



Sniffer Method

SFJ-231d Pressure Test Method Helium Mass Spectrometer Leak Detector
