Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-231d
Introduction of Helium Leak Detector:
Helium Leak Detector is a high-performance leak detector designed for industrial vacuum detection. helium leak detectors are instruments used to detect and locate small leaks in vacuum systems. They work by using helium as a tracer gas, which is introduced into the vacuum system and then detected outside of the system using a mass spectrometer or other sensitive detector.
| Rerigeration Leak Testing SFJ-231d 220V 50Hz/60Hz Helium Leak Detector | |
|---|---|
| Product Name | Helium Leak Detector |
| I/O Input output interface | 8 Inputs, 8 Outputs |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 5*10-9 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode | 5*10-13 Pa·m3/s |
| Max Allowable Leak Detection Pressure (Pa) | 1500Pa |
| Communication Interface | RS232/485, USB*2 |
| Language | Chines/English |
| Response Time (s) | < 1s |
| Operating temperature | 0~40°C |
| Start Time (min) | ≤ 2min |
| Leak rate display | Numbers, Bar Charts, Graphs |
| Keywords | Industrial vacuum detection, Vaccum leak detector, sniffer leak detector |
| Leak Port | DN25KF |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese and English |
| Ion Source | 2pcs iridium coated yttrium oxide, automatic switching |
Consumer Electronics Industry
Smart phones, headphones, watches, smart wristbands, pager, electric shavers, electric toothbrushes, etc.
Gas Bathroom Industry
Gas valve, proportionalvalve, membrane gas meter, pipeline, water heater, wall hanging furnace, heateroven, cooker, faucet, faucet spool, water pipe, etc.
Technical Support and Service for Helium Leak Detector
We provide technical support and service for our helium leak detector products. Our engineer could provide you services that you may have about installation, operation, maintenance, and troubleshooting. We also provide on-site technical support and service, if necessary. We offer repair services for the Helium Leak Detector, including replacing faulty parts.
Methods of Helium Leak Detection
Negative Pressure Method

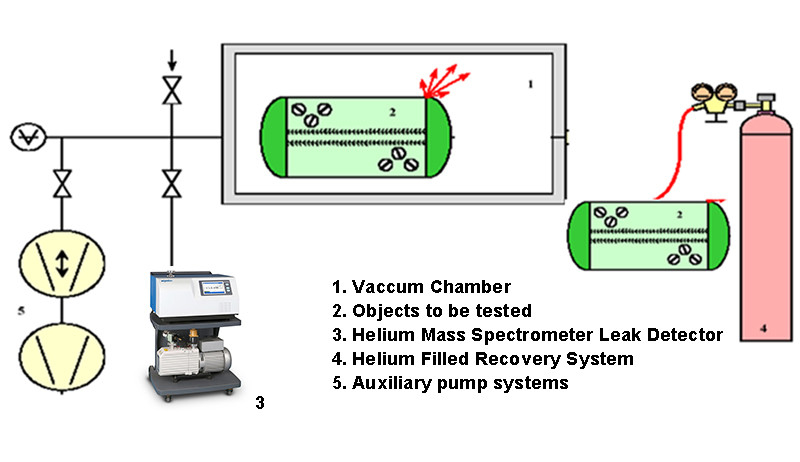

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
