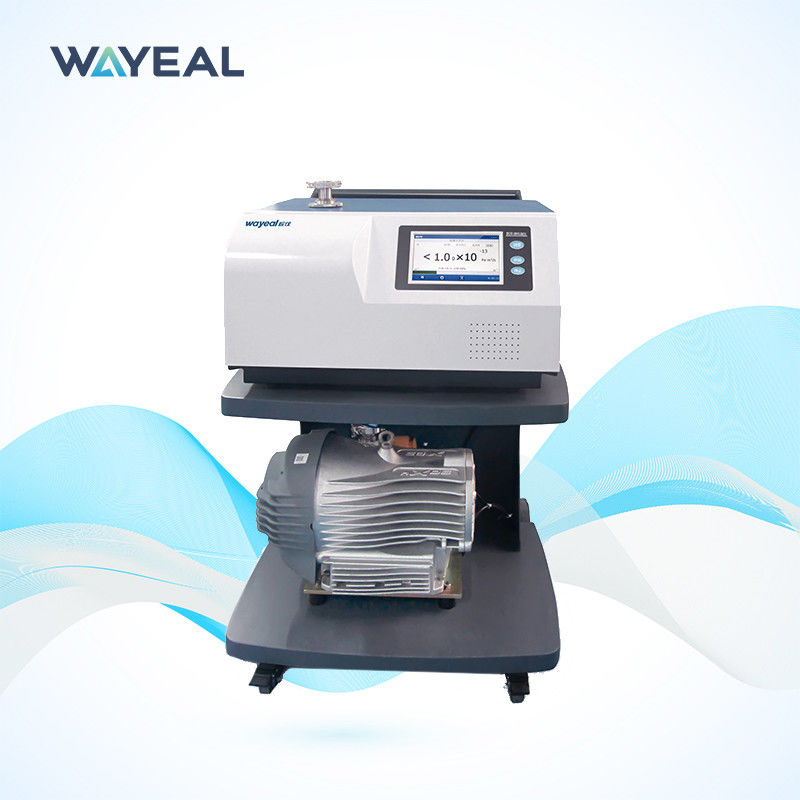

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leak Detection Port DN25KF I/O Input Output Interface 8 Inputs, 8 Outputs
Leak Rate Display Numbers, Bar Charts, Graphs Diamension 645*678*965mm
Communication Interface RS232/485, USB*2 Max Allowable Leak Detection Pressure (Pa) 1500
Start Time (min) ≤2 User Interface 7inch Color Touch Screen
High Light

Compact Helium mass spectrometer Leak Detector

,

DN25KF Helium Leak Detector

,

RS232 helium leak tester

Leave a Message
Product Description

Product Description:



Helium Leak Detector

Wayeal Helium Leak Detector is an advanced, precision helium leak testing system that can detect the smallest of leaks. It is designed for use in a variety of applications, from industrial leak testing to medical research. This high-performance helium mass spectrometer leak detector can detect leak rates down to 5*10-9 Pa.m3/s in sniffer mode. It also provides an accurate leak detection rate display with numbers, bar charts and graphs for a better understanding of the leak rate. Additionally, it features 8 Inputs and 8 Outputs I/O interface for efficient control and communication. This system is able to detect leaks up to a maximum pressure of 1500 Pa.



Technical Parameters:

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector

Product Name

Helium Leak Detector

Start Time (min)

≤2

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5*10-9 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5*10-13 Pa.m3/s

Detection Method

Helium Leak Detection

Max Allowable Leak Detection Pressure (Pa)

1500

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Language

Chines/English

I/O Input output interface

8 Inputs, 8 Outputs

Leak rate display

Numbers, Bar Charts, Graphs

Response Time(s)

<1

Detection Mode

Sniffer Leak Detector, Mass Spectrometer Leak Detector, Vacuum Detection

Power Supply

AC220V, 50Hz/60Hz

Operating Temperature

0~40°C

Leak Port

DN25KF

Language

Chinese and English



Applications:



New Energy Industry
Charging gun, pack battery pack, motor, water cold plate, controller, wiring harness, connector, bipolarplate, electric pile, hydrogen channel, oxygen channel, waterway, etc.


Medical Industry
Cavity catheter, infusion joint, positive pressure joint, balloon catheter, sphygmomanometer, puncture outfit, infusion connection tube, breathing air, urine bag, ultrasonic handle, breathing machine plasma perfusion, catheter sheath, ampoules, schering bottles, liquid bag, inhibits ptp packagingpackaging, prefilled syringes, blister packaging, eye drops container, dish, etc





Methods of Leak Detection

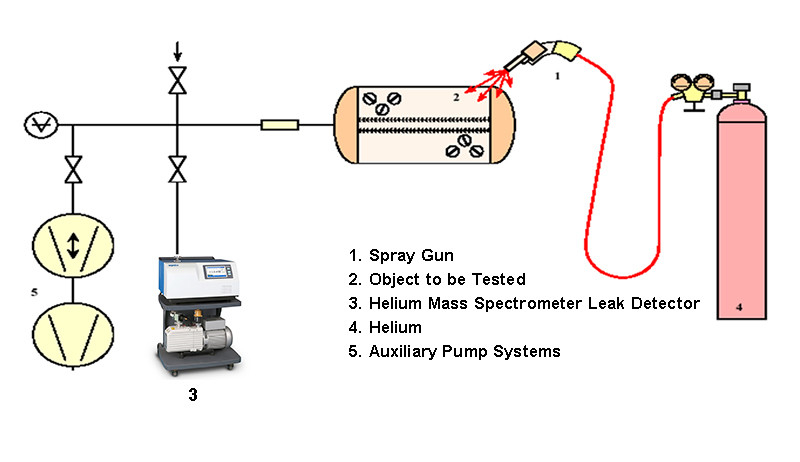

Negative Pressure Method

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector 2





Sniffer Method

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector 3

SFJ-231D Mobile Trolley Design Helium mass spectrometer Leak Detector 4
