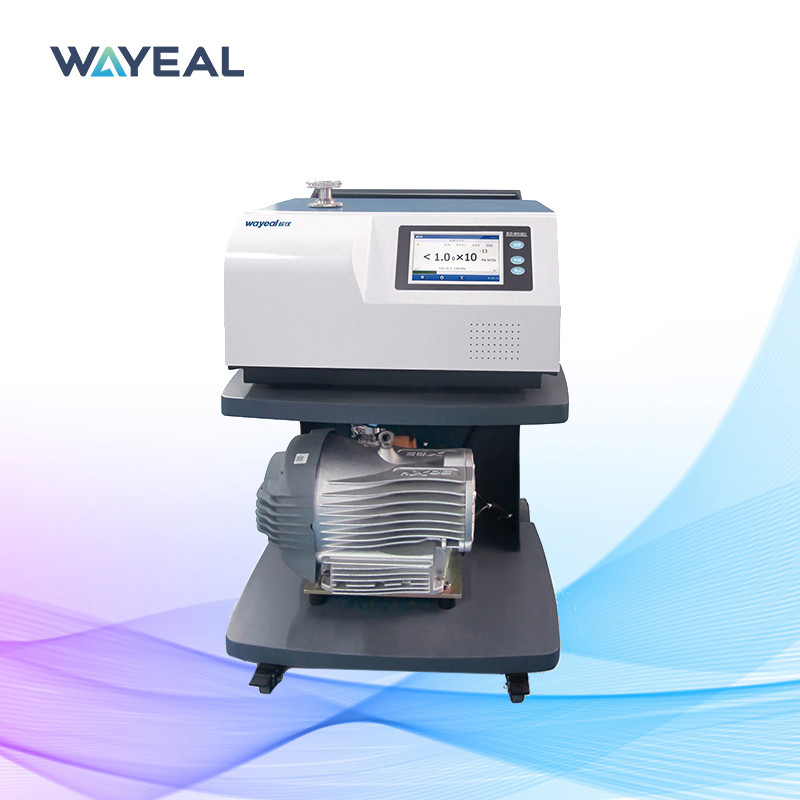

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s Start Time (min) ≤2
Detectable Quality 2, 3, 4 (H2, He3, He4) Language Chines/English
Response Time(s) <1 Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Diamension 645*678*965mm MES Interface Standard
High Light

SFJ-231D Helium Leak Detector

,

High Humping Capacity Helium Leak Detector

,

645*678*965 mm helium leak tester

Leave a Message
Product Description

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector



Introduction of Helium Leak Detector:



The Helium Leak Detector is a high-performance vacuum leak detection device for detecting leaks in industrial and laboratory systems. Mobile helium mass specrometer leak detectors are used where high pumping capacity is needed to evacuate a large volume in a short time and fast cleanup of helium background are required. There are used in highly sensitive applications in vacuum and medical technology or research and development or Semiconductor industry where mobility is also a key.



Technical Parameters of Helium Leak Detector:

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector

Product Name

Helium Leak Detector

Communication Interface

RS232/485, USB*2

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5*10-9 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

I/O Input output interface

8 Inputs, 8 Outputs

Startup Time (min)

≤2

Diamension

645*678*965mm

Response Time(s)

<1s

Detection Method

Helium Leak Testing

Max Allowable Leak Detection Pressure (Pa)

1500

Language Chinese and English
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C
Leak Port DN25KF




Applications of Helium Leak Detector:



Brake system: brake master pump/sub pump, brake caliper, wheel cylinder, etcSteering system: steering assembly, etc.


Transmission system: transmission assembly/housing, axle assembly/housing, etc.



Exhaust system: intake/exhaust manifold, EGR, three-way catalytic converter, muffler assembly, etc.



Cooling system: oil cooler, radiator, intercooler, oil cooler, thermostat, etc.



Electrical system: battery, lamp, air conditioning parts, waterproof electric plug, solenoid valve, electriccontrol box, electronic spray system, etc.



Support and Services:



Helium Leak Detector Technical Support and Service

We provide technical support and service for all Helium Leak Detector products. Our experienced technicians are available to answer your questions, troubleshoot any problems, and help you get the most out of your equipment.

We offer a wide range of services, including:

  • Online or nn-site installation and maintenance
  • Remote diagnostics and troubleshooting
  • Software updates and upgrades
  • Training and education
  • Repairs and replacements



Methods of Helium Leak Detection

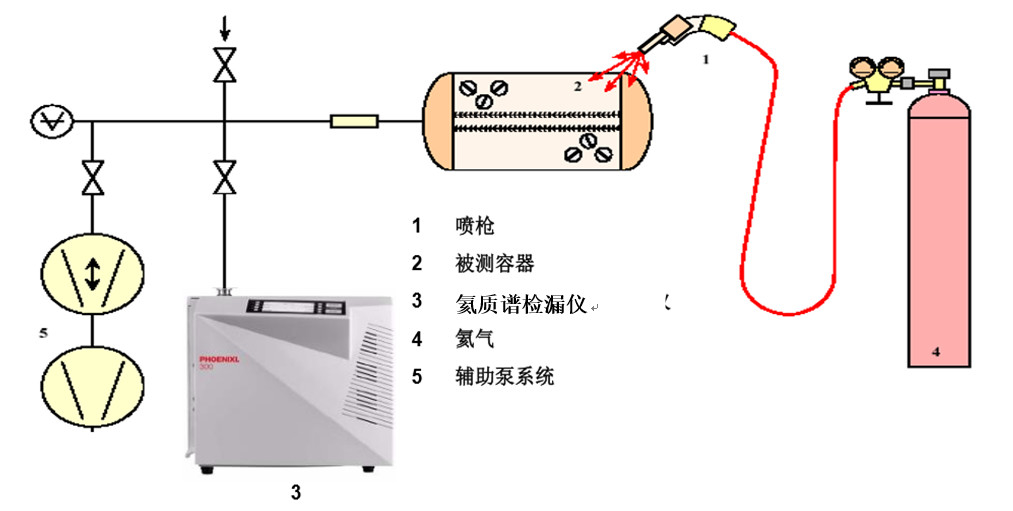

Negative Pressure Method

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 2





Sniffer Method

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 3

SFJ-231D High Precision Leak Detection Rate Dry Pump Helium Leak Detector 4
