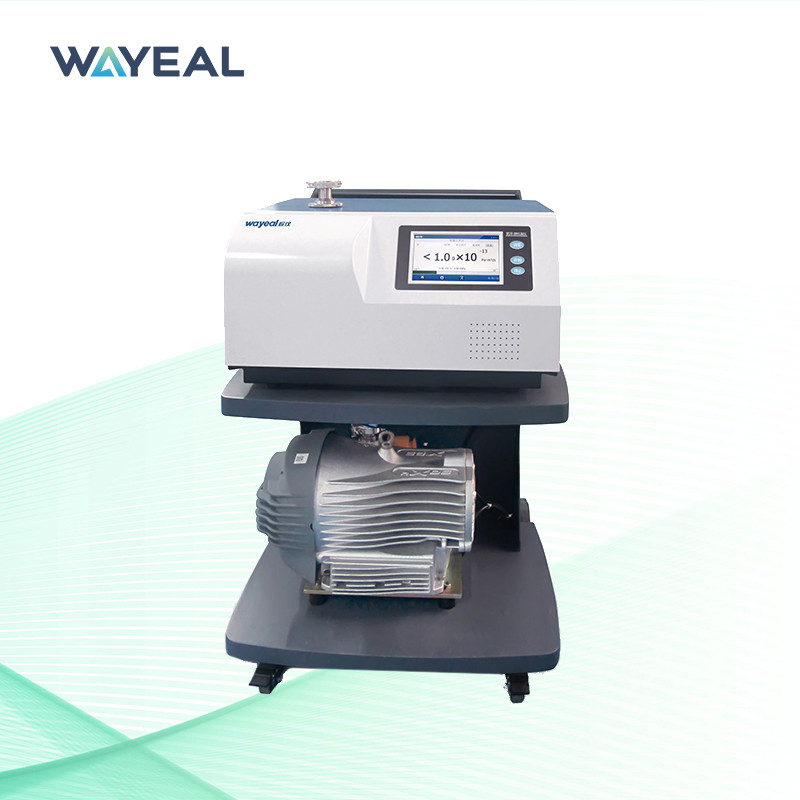

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231D
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detectable Quality 2, 3, 4 (H2, He3, He4) User Interface 7inch Color Touch Screen
I/O Input Output Interface 8 Inputs, 8 Outputs Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Leak Rate Display Numbers, Bar Charts, Graphs Operating Temperature 0~40°C
Leak Detection Port DN25KF Response Time(s) <1
High Light

SF-231D helium leak Detector

,

Vaccum Helium Leak Detector

,

Automatic helium leak tester

Leave a Message
Product Description

Product Introduction



Helium Leak Detector

The Helium Leak Detector is a state-of-the-art vaccum leak detection device that utilizes a Helium mass spectrometer to detect and measure leaks in industrial vacuum systems. This Helium Leak Detector is designed to quickly and accurately detect and measure leaks, including very small leaks, and is suitable for a wide range of applications including aerospace, automotive, medical, or industrial vacuum systems. Its advanced design allows users to achieve the highest level of accuracy and precision when it comes to leak rate measurements. The Helium Leak Detector is a reliable and efficient tool for leak detection and leak rate measurement, ensuring the safe operation of industrial vacuum systems. It is an invaluable tool for engineers and technicians who need to detect and measure leaks with the highest accuracy.



Technical Parameters:



SF-231D Fast Precise Leak Detection Automatic Vaccum Helium Leak Detector
Parameter Value
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Language Chinese/English
I/O Input output interface 8 Inputs, 8 Outputs
Max Allowable Leak Detection Pressure (Pa) 1500
Leak rate display Numbers, Bar Charts, Graphs
Detectable Quality 2, 3, 4 (H2, He3, He4)
Leak detection port DN25KF
Detection Method Helium Leak Detection
User Interface 7inch Color Touch Screen
Response Time (s) <1
Startup Time (min) ≤2
Communication RS232/485, USB*2
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C
Language Chinese and English



Applications:



Power system: engine water/oil channel, cylinder head valve, spark plug, powertrain, rear oil seal, oilpan, heat flow tube, oil filter, air filter, oil pump housing/assembly, water pump housina/assemblyturbocharger,etc.


Fuel system: fuel system assembly, engine desorption system, single tank, oil pump, fuel distributor.fuel distributor, fuel filter, high pressure oil pipe, carbon tank, etcBrake system: brake master pump/sub pump, brake caliper, wheel cylinder, etcSteering system: steering assembly.



Support and Services:



Helium Leak Detector Technical Support and Service

At Wayeal, we strive to provide our customers with the highest quality of technical support and service for their Helium Leak Detector. We are committed to helping our customers get the most out of their Helium Leak Detector, and to ensure that it is functioning correctly and meeting their needs.

Technical Support

We provide technical support for our Helium Leak Detectors to help customers troubleshoot and resolve any issues they may be experiencing. Our technical support staff is available to answer questions, discuss product features, and provide advice and guidance on best practices for use and maintenance.

Repair and Maintenance

We also offer repair and maintenance services for Helium Leak Detectors. Our technicians can diagnose and fix any issues with the device, and can also provide preventive maintenance and routine servicing to ensure optimal performance.

Warranty

Our Helium Leak Detectors are backed by a one-year warranty. This warranty covers any defects or malfunctions due to manufacturing or design flaws, and we will repair or replace the device free of charge.





Methods of Leak Detection



Negative Pressure Method

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection 2





Sniffer Method

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection 3

Automatic Vaccum Helium Leak Detector SF-231D Fast Precise Leak Detection 4
