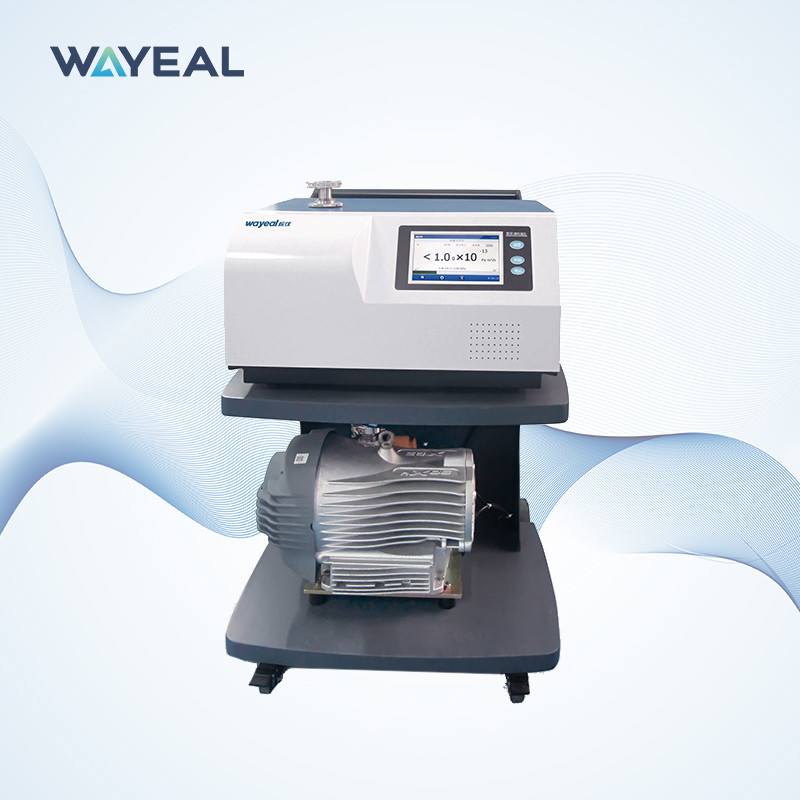

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231d
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching I/O Input Output Interface 8 Inputs, 8 Outputs
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s Detectable Quality 2, 3, 4 (H2, He3, He4)
Communication Interface RS232/485, USB*2 Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7inch Color Touch Screen Max Allowable Leak Detection Pressure(Pa) 1500
High Light

Helium Leak Detector with Vaccum

,

Sealed Containers Helium leak detection system

,

Helium Leak tester with Sniffer Mode

Leave a Message
Product Description

Introduction of Helium Leak Detector:


Helium Leak Detector – The Ultimate Helium Leak Detector

Helium Leak Detector is an advanced mass spectrometer leak detector which provides ultimate accuracy in sealed containers vacuum detection. The helium mass spectrometer leak detector is an instrument that can quickly locate and quantitatively measure the leakage of sealed containers. Compared with bubble identification method, pressure attenuation method and halogen leak detection method, helium mass spectrometer leak detection method has high detection sensitivity, fast speed and wide application range. In addition, helium leak detector selects non-toxic, non-destructive and light inert gas helium as the exploration gas, so it is safe and reliable.



Technical Parameters of Helium Leak Detction:

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Max Allowable Leak Detection Pressure (Pa) 1500
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Language Chinese/English
Dimension 645*678*965mm
User Interface 7inch Color Touch Screen
Communication Interface RS232/485, USB*2
Detectable Quality 2, 3, 4 (H2, He3, He4)
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Response Time (s) <1
Startup Time(s) ≤2
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C


Applications of Helium Leak Detector:

Welding, diving, rocket propulsion, cryogenics, MRI, processing, meteorology and research & development.





Methods of Helium Leak Detection



Negative Pressure Method

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 0

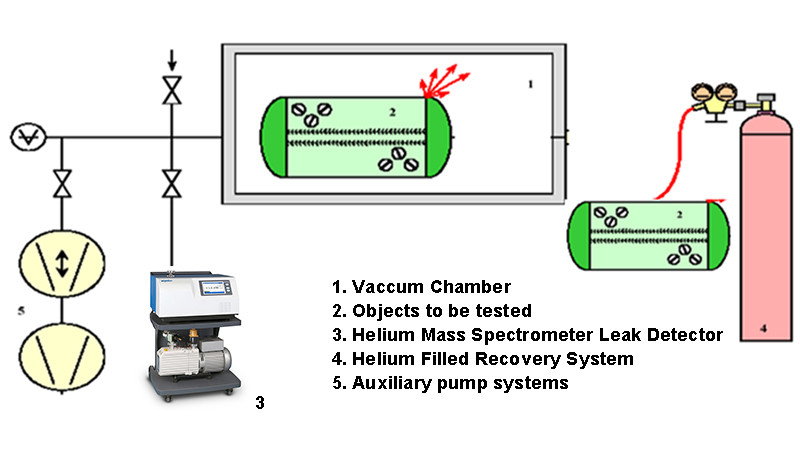

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 1



Sniffer Method

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 2

Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 3Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 4



Wayeal SFJ-231d Helium Leak Detector Machine for Sealed Containers Leak Detection 5
