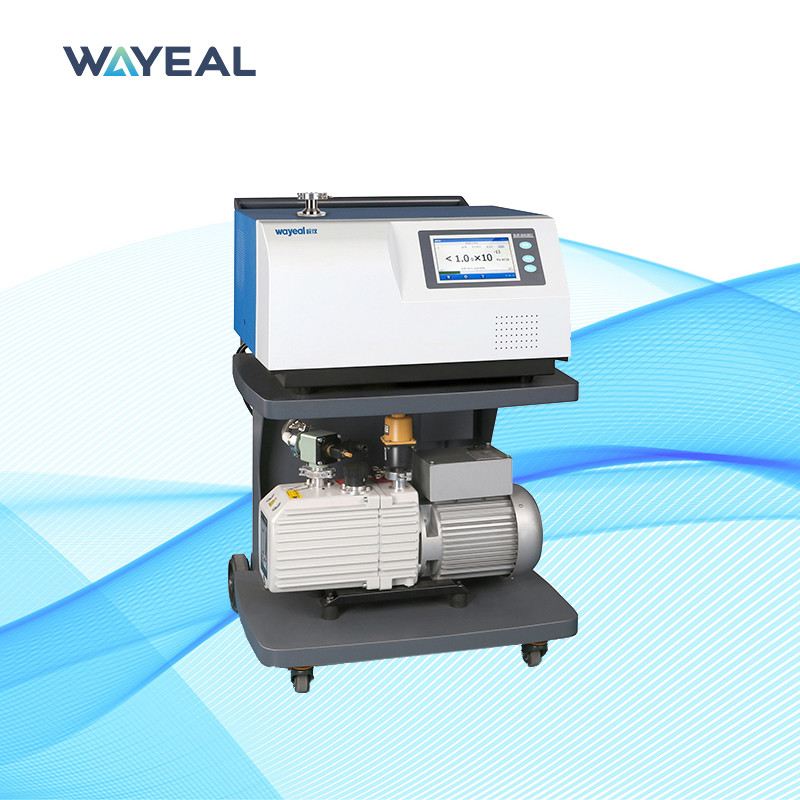

AC220V Helium Vacuum Leak Detector Sniffer And Spray Gun 50Hz/60Hz

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO90001, CE
Model Number: SFJ-231
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Pieces Per Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Mass Spectrometer Leak Detector Working Power: AC220V, 50Hz/60Hz
Product Application: Hydrogen Energy Weight: 74kgs
Operating Temperature: 0~40°C Ion Sources: 2pcs
High Light:

AC220V Helium Vacuum Leak Detector

,

60Hz helium leak tester

,

Helium Vacuum Leak Detector With Sniffer
Product Description

Sniffer and Spray Gun Vaccum Leak Detecor Helium Vacuum Leak Detector

Introduction of Helium Leak Detector

A helium mass spectrometer leak detector is a leak detector commonly used to detect and locate small leaks. It typically uses a vacuum chamber in which a sealed container filled with helium is placed. Helium leaks out of the container, and the rate of the leak is detected by a mass spectrometer.

Product Parameters of Helium Leak Detector

Wayeal SFJ-16C Modular Helium Vacuum Leak Detector for Clear Energy Industry

Performance Indicators

 Model SFJ-16C
Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode 5.0*10-13
Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode 2.5*10-9
Maximum Detectable Leakage Rate (Pa) 1800
Response Time (s) <1
Start-up Time (min) ≤ 95s
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Man-machine Interface 7" color LCD Touch Screen
Ion Source 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching

Basic Configuration

 Pre-stage Pumps Optional
I/O Input/ Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, LAN
MES Interface Standard
(Physical Size )W*D*H 755*467*1180mm
Specifications of Leak Detection Hole DN25KF
Power Supply AC220V, 50HZ/60HZ
Operating Temperature 0~40°C
Display Language Chinese/English
Leakage Rate Display Figure, Bar Chat, Curve Chat

Features of Helium Leak Detector

1. Rapid and accurate detection of helium and hydrogen by helium injection mode, sniffer mode and others.
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Suitable for industrial leak detection in various high requirements and hash environment.
4. Wireless remote-control function (optional);

Applications of Helium Leak Detector

1. Automobile Industry

1.1 Automotive refrigeration industry
1.2 Automotive Fuel Industry
1.3 Automotive New Energy
2. Hydrogen Energy
2.1 Hydrogen Cylinder Industry
2.2 Hydrogen Energy Components
3. Home Refrigeration Industry
4. Helium Recovery Systems

Helium Leak Detection Methods

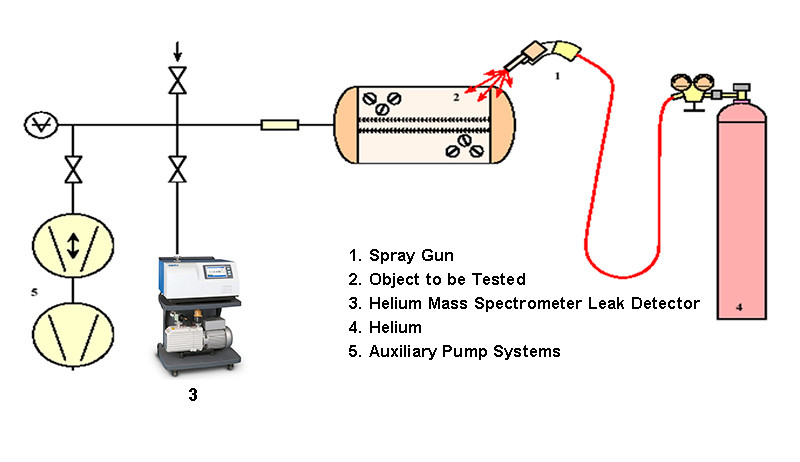

Negative Pressure Method

AC220V Helium Vacuum Leak Detector Sniffer And Spray Gun 50Hz/60Hz 0

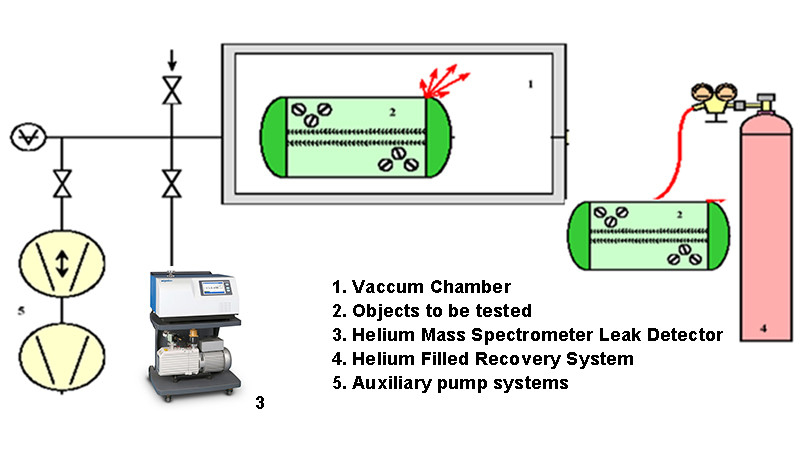

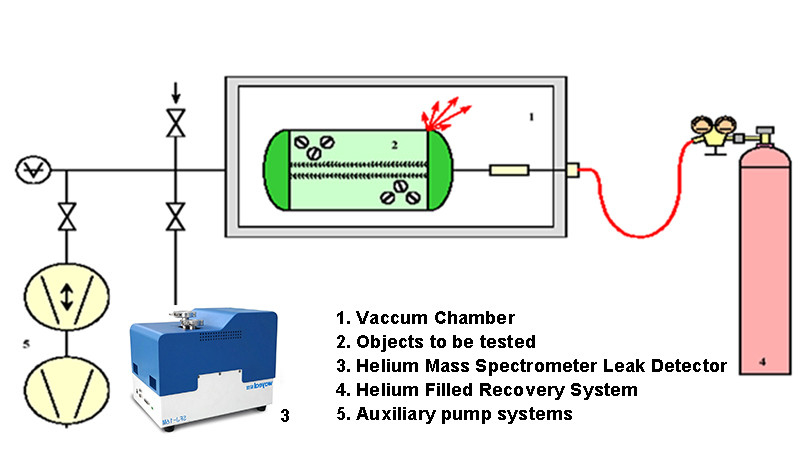

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

AC220V Helium Vacuum Leak Detector Sniffer And Spray Gun 50Hz/60Hz 1

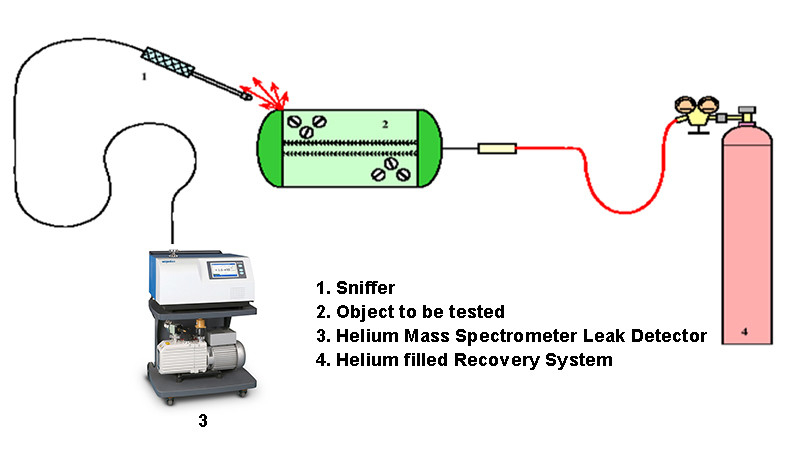

Sniffer Method

AC220V Helium Vacuum Leak Detector Sniffer And Spray Gun 50Hz/60Hz 2
