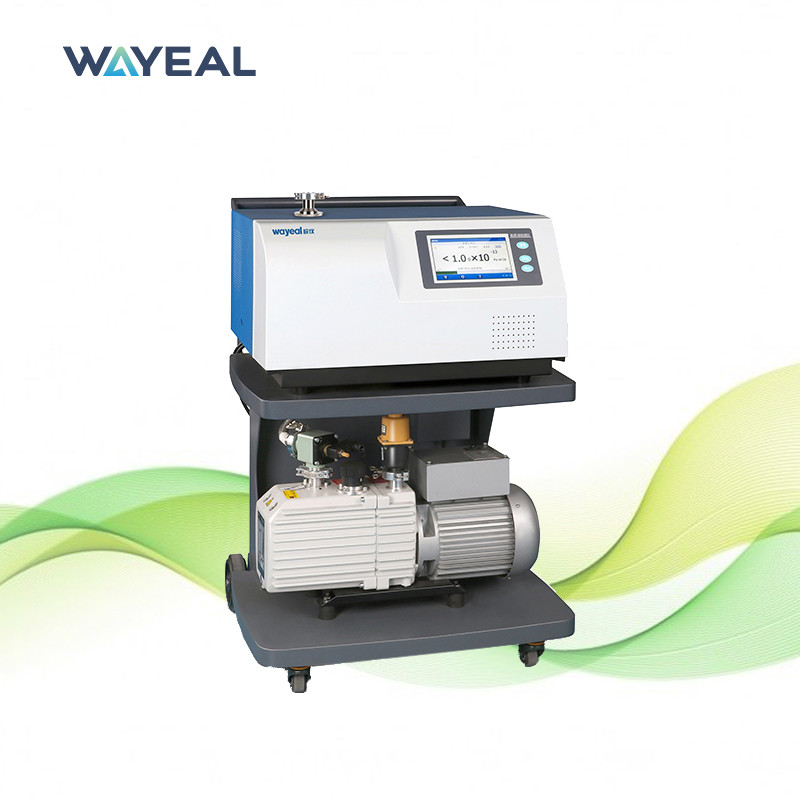

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
I/O Input Output Interface 8 Inputs, 8 Outputs MES Interface Standard
Start Time (min) ≤2 Response Time(s) <1
Leak Rate Display Numbers, Bar Charts, Graphs Leak Detection Port DN25KF
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
High Light

Precise Sniffer Mode Helium Leak Detector

,

Leak Detector with 2pcs Ion Source

,

2pcs helium leak tester

Leave a Message
Product Description

Product Description:



The Helium Leak Detector is a mass spectrometer leak detector that utilizes helium leak detection systems to detect extremely small leaks. With a minimum detection rate of 5*10-13 Pa.m3/s in vaccum mode, the system is ideal for high-sensitivity, high-precision test applications. The user interface is a 7-inch color touch screen, making it easy to operate and navigate.





Technical Parameters:



Precise Sniffer Mode Helium Leak Detector with 2pcs Ion Source
Parameters Specifications
Language Chinese/English
Max Allowable Leak Detection Pressure(Pa) 1500
Diamension 645*678*965mm
Leak detection port DN25KF
Response Time (s) < 1
MES Interface Standard
Detection Method Helium Leak Detection
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
Mini Leak Detection Rate (Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Main Features Mass Spectrometer Leak Detector, Vacuum Detection, Helium Leak Detection Systems
Mini Leak Detection Rate (Pa.m3/s)/Vaccum Mode 5.0*10-13 Pa.m3/s
Start Time 2min
Ion Source 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching
I/O Input Output 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
Power AC220V, 50Hz/60Hz


Applications:

The Wayeal SFJ-231 Helium Leak Detector is a vacuum detection system designed for detecting helium leaks. It is manufactured in Anhui, China and certified with CE and also owns 50% domestic market share.The Wayeal SFJ-231 Helium Leak Detector is well suited for various vacuum detection applications, such as air-tightness testing, helium leak detection, vacuum degassing process, and gas-leakage testing. It is equipped with high-precision sensors for helium detection and can provide accurate and reliable leak detection results. It is also equipped with a 7inch Color Touch Screen with Chinese/English language support. The SFJ-231 is designed for superior performance and reliability. It is the perfect choice for any vacuum detection needs.



Support and Services:

Helium Leak Detector Technical Support and Service



1. Phone and e-mail support

2. Software and hardware troubleshooting

3. Equipment repair and maintenance

4. Product installation and setup

5. Product upgrades and customization



Our team is always available to answer any questions or concerns you may have about our Helium Leak Detector products. We pride ourselves on providing the highest quality of technical support and customer service, and we look forward to helping you get the most out of your Helium Leak Detector.



Methods of Leak Detection



Negative Pressure Method

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source 2





Sniffer Method

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source 3

Precise Sniffer Mode Helium Leak Detector With 2pcs Ion Source 4
