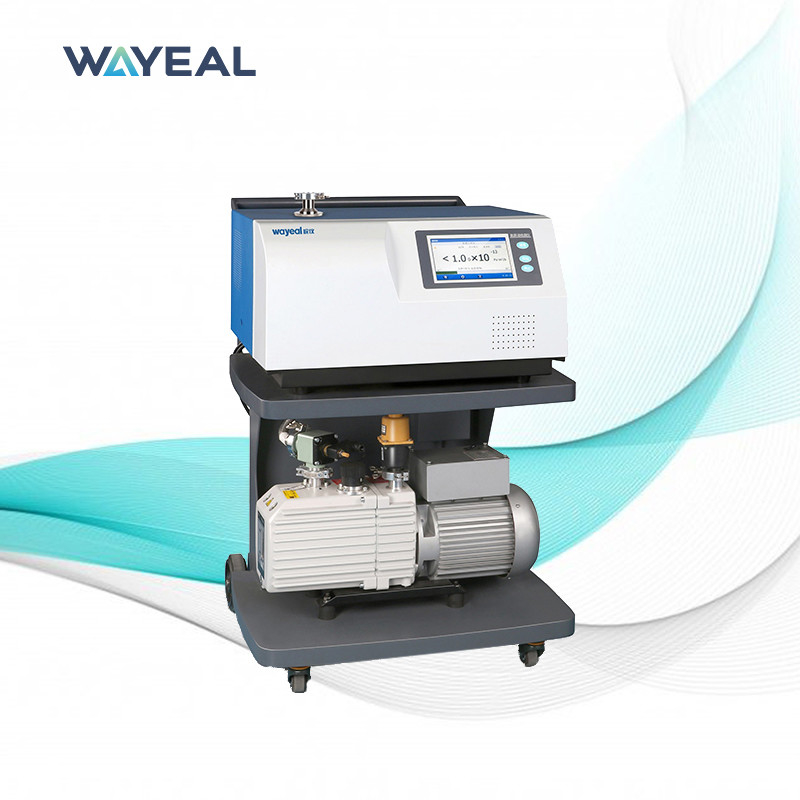

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~40°C Start Time (min) ≤2
Language Chines/English Response Time(s) <1
I/O Input Output Interface 8 Inputs, 8 Outputs Communication Interface RS232/485, USB*2
MES Interface Standard Diamension 645*678*965
High Light

1500Pa Helium Mass Spectrometer Leak Detector

,

helium leak tester for Pouch Cell

,

RS485 helium leak tester

Leave a Message
Product Description

Product Description:



Helium Leak Detector is an advanced vacuum leak detection device designed for industrial leak testing applications. It features a high-precision mass spectrometer leak detector, providing a mini leak detection rate of 5*10-9 Pa.m3/s in sniffer mode, and a fast start time of ≤2 minutes. The intuitive user interface of the device is a 7-inch color touch screen, which displays the leak rate in numbers, bar charts and graphs, making it easier to analyze the data. The operating temperature range is 0~40°C, making it suitable for a wide range of industrial environments. With its precision and accuracy, this helium leak detector is an ideal choice for industrial vacuum detection.



Technical Parameters:

Helium Mass Spectrometer Leak Detector for Pouch Cell Leak Detection
Parameters Details
Product Name Helium Leak Detector
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Main Features Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English


Support and Services:

Helium Leak Detector Technical Support and Service

We are dedicated to providing the highest quality technical support and service for our Helium Leak Detector products. We could provide you witn on-site service calls, remote diagnostic and repair services, and telephone support. Our technicians can also provide preventative maintenance and calibration services to ensure your Helium Leak Detector is functioning optimally.



Methods of Leak Detection



Negative Pressure Method

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection 2

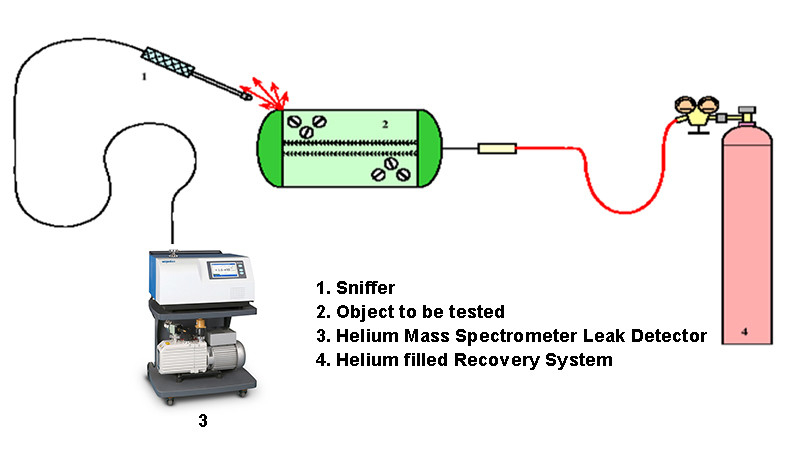

Sniffer Method

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection 3

1500Pa Helium Mass Spectrometer Leak Detector For Pouch Cell Leak Detection 4
