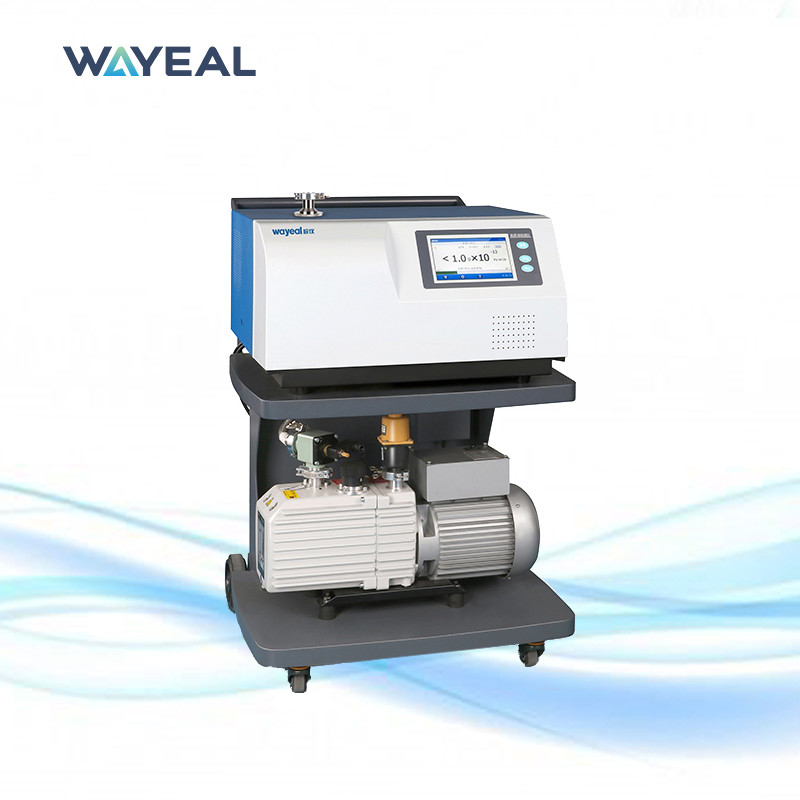

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~40°C Start Time (min) ≤2
Detection Method Helium Leak Detection Leak Detection Port DN25KF
Detectable Quality 2, 3, 4 (H2, He3, He4) Product Name Helium Leak Detector
User Interface 7inch Color Touch Screen Language Chines/English
High Light

High Precision Helium Leak Detector

,

1500Pa helium leak tester

,

Touch Screen helium leak tester

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The Helium Leak Detector is a highly advanced device designed for the industrial vacuum leak detection. This device is powered by helium and is capable of detecting even the smallest leaks.There are 2 basic techniques; high vacuum testing which allows leak test thresholds to be set down as low as 5×10-13Pa.m3/s, or sniffing which is generally used for helium leaks down to 5×10-9Pa.m3/s. This makes it a perfect choice for industries that require accurate helium leak testing and vaccum leak detection.



Technical Parameters of Helium Leak Detector:

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa
Leak Detection Port DN25KF
Start Time (min) ≤2
Detectable Quality 2, 3, 4 (H2, He3, He4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Language Chinese/English
Detection Method Helium Leak Detection
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Product Name Helium Leak Detector
Max Allowable Leak Detection Pressure (Pa) 1500
Response Time(s) <1
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7inch color touch screen
I/O Input Output 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
MES Interface Standard
Size 645*678*965mm
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Operating Temperature 0~40°C


Support and Services:


Helium Leak Detector Technical Support and Services

1. Product installation and setup

2. Troubleshooting and repair

3. Software and firmware updates

4. Product safety and compliance checks

5. Calibration and testing services

6. Telephone and email technical support

7. On-site maintenance and service





Methods of Helium Leak Detection



Negative Pressure Method

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 1

Sniffer Method

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 2

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 3High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 4



High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa 5
