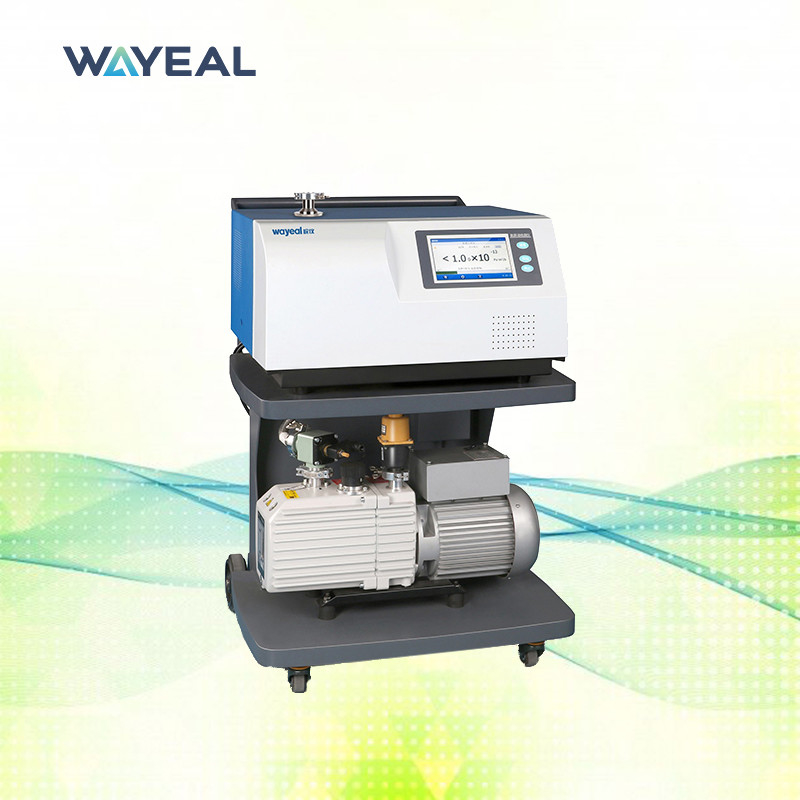

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~40°C Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7inch Color Touch Screen Max Allowable Leak Detection Pressure (Pa) 1500
Communication Interface RS232/485, USB*2 Leak Rate Display Numbers, Bar Charts, Graphs
MES Interface Standard Diamension 645*678*965mm
High Light

SFJ-231 Helium Leak Detector

,

Precise Helium leak detection system

,

13 Pa.m3/s helium leak tester

Leave a Message
Product Description

Product Description:



The Helium Leak Detector is an industrial vacuum detection and leak detection device designed to detect helium leaks in industrial and research environments. It is capable of detecting helium leaks from 2, 3 and 4 (H2, He3, He4). It is non-toxic, inert, non-condensable, non-flammable and not normally present in the atmosphere at more than trace amounts (5 ppm). Due to its small atomic size, helium passes easily through leaks. The only molecule smaller than Helium is Hydrogen which is not inert. It is also relatively inexpensive and is available in various size cylinders. So helium is the best choice of tracer gas to find leaks for a number of reasons.



Technical Parameters:

Precise Leak Detection Helium mass spectrometer Leak Detector
Parameter Value
Product Name Helium Leak Detector
Max Allowable Leak Detection Pressure (Pa) 1500
Response Time (s) <1
Mini Leak Detection Rate (Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
Mini Leak Detection Rate (Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Leak Rate Display Numbers, Bar Charts, Graphs
Communication Interface RS232/485, USB*2
MES Interface Standard
Detectable Quality 2, 3, 4 (H2, He3, He4)
Start Time (min) ≤2
User Interface 7inch color touch screen
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
I/O Input Output 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
Size 645*678*965mm
Leak Detection Port DN25KF
Operating Temperature 0~40°C
Language Chinese, English


Applications:

Wayeal SFJ-231 is an advanced sniffer leak detector designed for use in industrial environments. It is certified by CE and Wayeal SFJ-231 is widely used for vaccum leak detection in various industries, such as automotive, aerospace, and energy industries. It is an ideal choice for mass spectrometer leak detection due to its high accuracy and reliable performance. With its high sensitivity and low noise, Wayeal SFJ-231 is capable of detecting leaks in a wide variety of applications, such as air conditioning systems, fuel systems, and refrigeration systems.



Support and Services:

Helium Leak Detector Technical Support and Service

We are proud to offer a comprehensive technical support and service for our Helium Leak Detector products. We have an R&D team of 21Ph.Ds. and 300+ masters who are available to answer your questions and provide technical assistance to ensure your product is maintained in peak condition.



Our Helium Leak Detector technical support and service includes:

Initial installation and setup:



1. Troubleshooting and maintenance

2. Technical advice and guidance

3. Repair and replacement of parts

4. Software updates and upgrades



We are committed to providing the highest level of customer service and satisfaction. If you have any questions or concerns about our Helium Leak Detector products, please don't hesitate to contact us.



Methods of Leak Detection



Negative Pressure Method

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection 1





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection 2





Sniffer Method

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection 3

SFJ-231 Helium Mass Spectrometer Leak Detector Precise Leak Detection 4
