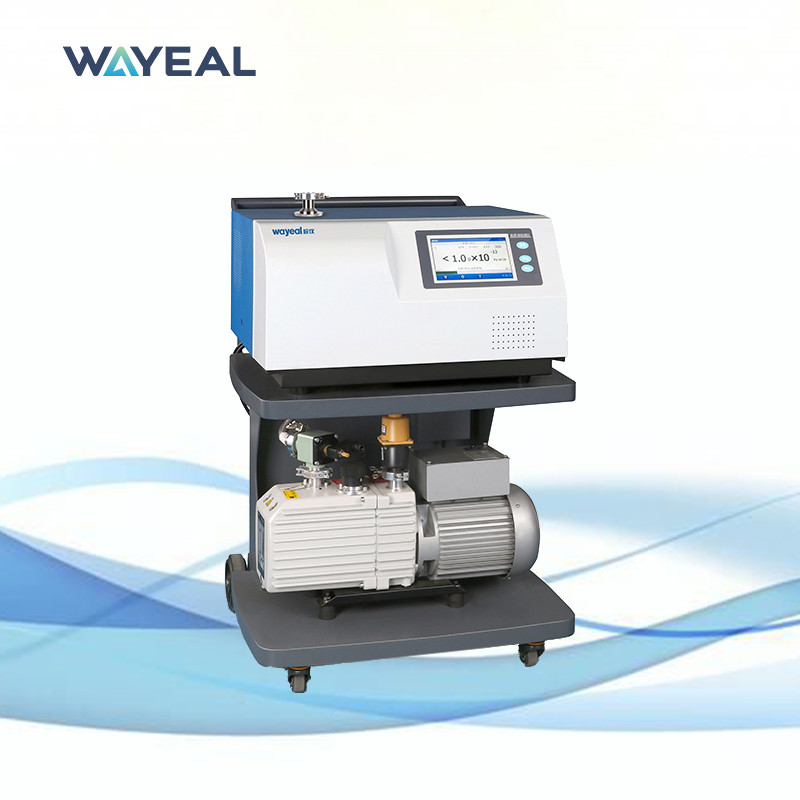

DN25KF Helium Leak Detector Manufacturer Vacuum Helium Leak Detection Equipment

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-231
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time(s) <1 Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7inch Color Touch Screen Start Time (min) ≤2
Language Chines/English MES Interface Standard
I/O Input Output Interface 8 Inputs, 8 Outputs Product Name Helium Leak Detector
High Light

Helium Leak Detector Manufacturer

,

Vacuum Helium Leak Detector

,

DN25KF Vacuum Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



The Helium Leak Detector is designed for industrial vacuum detection and helium leak testing. Its maximum allowable leak detection pressure of 1500 Pa. With its high level of accuracy and reliable performance, it is an ideal choice for any industrial precise vacuum leak detection.



Technical Parameters

DN25KF Helium Leak Detector Manufacturer Vacuum Helium Leak Detection Equipment
Operating Temperature 0~40°C
MES Interface Standard
Leak Rate Display Numbers, Bar Charts, Graphs
Max Allowable Leak Detection Pressure (Pa) 1500
Start Time (min) ≤2
Response Time (s) <1
I/O Input output interface 8 Inputs, 8 Outputs
Detectable Quality 2, 3, 4 (H2, He3, He4)
Language Chinese/English
Leak detection port DN25KF
User Interface 7 inch color touch screen
Minimum Detectable Leakage Rate (Pa·m3/s)/ Vacuum Mode 5.0*10-13
Minimum detectable leakage rate (Pa·m3/s)/ Sniffer Mode 5.0*10-9
Ion Source 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching
I/O Input/Output 8 inputs, 8 outputs
Communication Interface RS232/485, USB*2
Size 645*678*965mm
Power 220V, 50Hz/60Hz


Applications of Helium Leak Detector:

Wayeal's SFJ-231 helium leak detector is a vacuum leak detection device that is widely used in the industry to accurately detect any leaks in pipelines, tanks, containers, and other vacuum systems. It is certified with CE, ensuring its high accuracy and reliable operation.



Support and Services:

At Helium Leak Detector, we provide technical support and services to ensure that our customers get the best performance from our products. Our experienced team of engineers and technicians are available to provide support with installation, setup, and maintenance. We are committed to providing our customers with the highest quality products and services. If you have any questions or concerns, please do not hesitate to contact us. We look forward to helping you get the most out of your Helium Leak Detector.





Methods of Helium Leak Detection



Negative Pressure Method

DN25KF Helium Leak Detector Manufacturer Vacuum Helium Leak Detection Equipment 0



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

DN25KF Helium Leak Detector Manufacturer Vacuum Helium Leak Detection Equipment 1







Sniffer Method

DN25KF Helium Leak Detector Manufacturer Vacuum Helium Leak Detection Equipment 2
